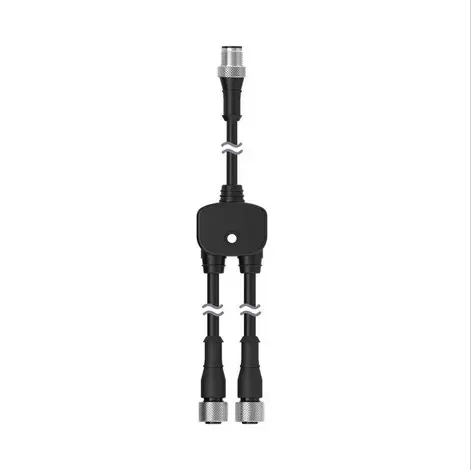

2-way splitter CSB-M1281M1281B, M12 8-pin male / 2x M12 8-pin female, 0.3 m

CSB-M1281M1281B is a Banner Y splitter with an 8-pin M12 male trunk and two 8-pin M12 female branches. All eight conductors are wired in parallel from the trunk to both branches.

• Connectors: trunk M12x1 male, 8-pin; branches 2x M12x1 female, 8-pin
• Cable lengths: trunk 0.3 m, each branch 0.3 m
• Wiring: pins 1-8 in parallel (brown, orange/black, orange, white, black, blue, green/yellow, violet)
• Junction: 35 x 17 mm, with a mounting hole
