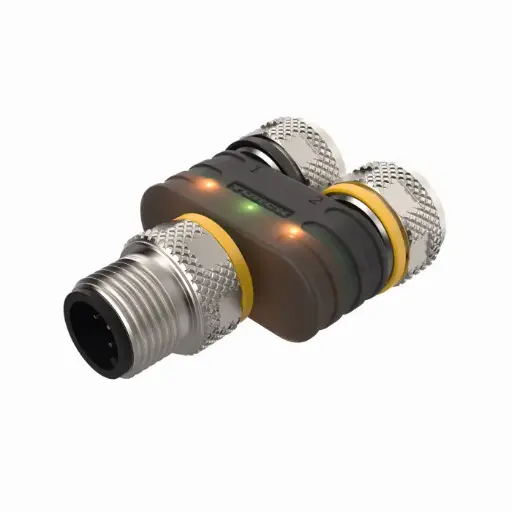

YB2-FSM5-2FKM5.4-P7X3 is a TURCK Y-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (4-pin). The translucent male connector body carries three LEDs: green for supply and two yellow for the switching state.

• Connectors: M12 male, 5-pin / 2 x M12 female, 4-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, translucent TPU male connector, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+80°C

RoHS compliant.

VT2-FKM4.4-FSM4.4-FSM4.4 is a TURCK T-splitter without cable with two M12 male connectors (4-pin) and one M12 female connector (4-pin), all A-coded.

• Connectors: 2 x M12 male, 4-pin / M12 female, 4-pin, straight, A-coded, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 48 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68 (only when screwed in); -30...+90°C

RoHS compliant.

VT2-FKM5-FSM5-FSM5 is a TURCK T-splitter without cable with two M12 male connectors (5-pin) and one M12 female connector (5-pin), all A-coded.

• Connectors: 2 x M12 male, 5-pin / M12 female, 5-pin, straight, A-coded, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 48 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68 (only when screwed in); -30...+90°C

RoHS compliant.

VBRS4.4-2RKC4T-0.3/0.3/TXL is a TURCK Y-splitter with a straight M12 male connector (4-pin) and two straight M12 female connectors (3-pin) on 0.3 m PUR cable branches. Pin 4 of the male connector is wired to pin 4 of the first branch (BK1), pin 2 to pin 4 of the second branch (BK2), and the supply (pin 1 +, pin 3 -) is shared by both branches.

• Connectors: M12 x 1 male, 4-pin / 2 x M12 x 1 female, 3-pin, all straight, gold-plated brass (CuZn) contacts
• Cable: 2 x 0.3 m, PUR, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

Two sensors switching on pin 4 therefore share one two-channel M12 port.

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

RoHS compliant.

YB2-FSME5-2FKME5.4 is a TURCK Y-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (4-pin). The coupling nut on the male connector is passivated V4A stainless steel.

• Connectors: M12 male, 5-pin / 2 x M12 female, 4-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, V4A stainless steel nut on the male connector, nickel-plated brass nuts on the female connectors; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -30...+80°C

RoHS compliant.

VB2-FSM5-2FKM5 is a TURCK Y-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (5-pin). The two female connectors are wired in parallel.

• Connectors: M12 male, 5-pin / 2 x M12 female, 5-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+90°C

RoHS compliant.

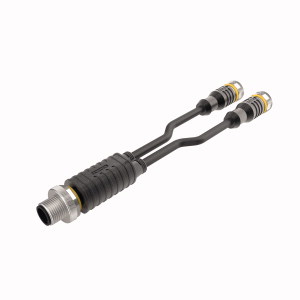

VBRS4.4-2RKC4T-2/2/TXL is a TURCK Y-splitter with a straight M12 male connector (4-pin) and two straight M12 female connectors (3-pin) on 2 m PUR cable branches. Pin 4 of the male connector is wired to pin 4 of the first branch (BK1), pin 2 to pin 4 of the second branch (BK2), and the supply (pin 1 +, pin 3 -) is shared by both branches.

• Connectors: M12 x 1 male, 4-pin / 2 x M12 x 1 female, 3-pin, all straight, gold-plated brass (CuZn) contacts
• Cable: 2 x 2 m, PUR, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

Two sensors switching on pin 4 therefore share one two-channel M12 port.

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

RoHS compliant.

VBRS4.4-2WKC4.324T-5/5/TXL is a TURCK Y-splitter with a straight M12 male connector and two angled M12 female connectors on 5 m PUR cable branches. Pin 4 of the male connector is wired to pins 2 and 4 of the first branch, pin 2 to pins 2 and 4 of the second branch, and the supply (pin 1 +, pin 3 -) is shared by both branches.

• Connectors: M12 x 1 male, straight / 2 x M12 x 1 female, angled; all 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 x 5 m, PUR, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

Two sensors therefore share one two-channel M12 port. The PUR jacket resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

RoHS compliant.

VB2-FSM4.4-2MFK3 is a TURCK Y-splitter without cable with one M12 male connector (4-pin) and two M8 female connectors (3-pin).

• Connectors: M12 male, 4-pin / 2 x M8 female, 3-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 50 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+90°C

RoHS compliant.

VT2-FKM5-FKM5-FSM5 is a TURCK T-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (5-pin), all A-coded.

• Connectors: M12 male, 5-pin / 2 x M12 female, 5-pin, straight, A-coded, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68 (only when screwed in); -30...+90°C

RoHS compliant.

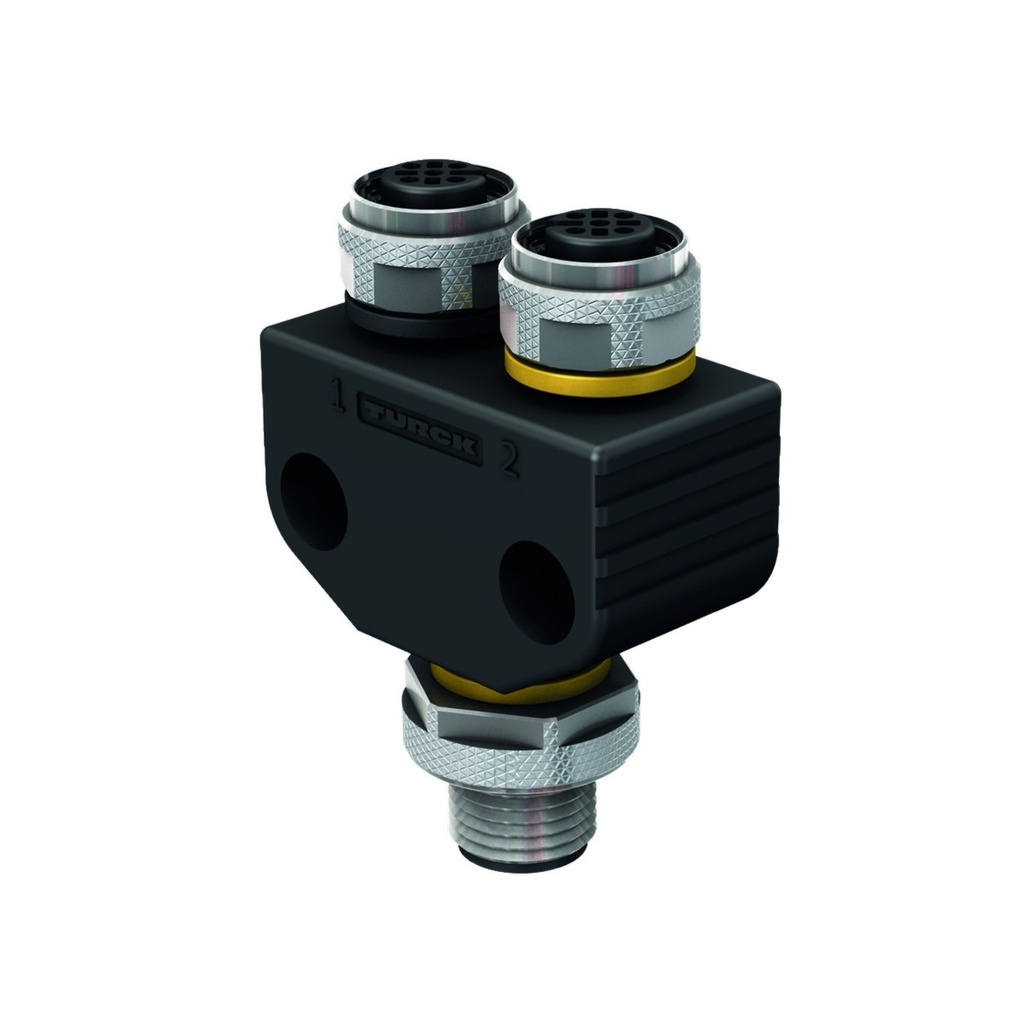

VB2-FSM4.4-2FKM4 is a TURCK Y-splitter without cable with one M12 male connector (4-pin) and two M12 female connectors (3-pin).

• Connectors: M12 male, 4-pin / 2 x M12 female, 3-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 250 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+90°C

RoHS compliant.

YB2-FSM5-2FKM5.4 is a TURCK Y-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (4-pin).

• Connectors: M12 male, 5-pin / 2 x M12 female, 4-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+80°C

Approval: cULus. RoHS compliant.

CSB-M1250M1250-T is a Banner M12 T splitter listed among the power cordsets for Sure Cross wireless devices. It passes the supply and signal lines in parallel to both branches.

• Connectors: M12x1, straight
• Wiring: brown 1, white 2, blue 3, black 4, in parallel
• Size: 62.7 x 43.0 mm
• Ratings: 4 A, IP67, -40...+105 °C

VB2-FSM5-2FKM4.4 is a TURCK Y-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (4-pin).

• Connectors: M12 male, 5-pin / 2 x M12 female, 4-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+90°C

RoHS compliant.

CSB-M1281M1281B is a Banner Y splitter with an 8-pin M12 male trunk and two 8-pin M12 female branches. All eight conductors are wired in parallel from the trunk to both branches.

• Connectors: trunk M12x1 male, 8-pin; branches 2x M12x1 female, 8-pin
• Cable lengths: trunk 0.3 m, each branch 0.3 m
• Wiring: pins 1-8 in parallel (brown, orange/black, orange, white, black, blue, green/yellow, violet)
• Junction: 35 x 17 mm, with a mounting hole

VBRS4.4-2RKC4.4T-0.3/0.3/TXL is a TURCK Y-splitter with a straight M12 male connector (4-pin) and two straight M12 female connectors (4-pin) on 0.3 m PUR cable branches.

• Connectors: M12 x 1 male, 4-pin / 2 x M12 x 1 female, 4-pin, all straight, gold-plated brass (CuZn) contacts
• Cable: 2 x 0.3 m, PUR, black, Ø 4.7 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nuts, FPM/FKM seal; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

RoHS compliant.
