Accessories
Mounting bracket SMB30A, right-angle, 30 mm hole, stainless steel
In stock: 5 pcs
11.00 €

SMB30A is a Banner right-angle bracket for sensors with a 30 mm housing. The curved slot lets the sensor be turned before the screws are tightened.

  • Sensor hole: Ø30.5 mm
  • Mounting: M6 (¼") hardware, 40 mm hole centre spacing
  • Material: 12-gauge stainless steel
Accessories

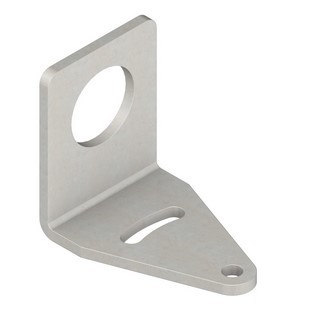

Mounting bracket SMB18A, right-angle, 18 mm hole, stainless steel
In stock: 24 pcs
9.00 €

SMB18A is a Banner right-angle bracket for sensors with an 18 mm thread. The curved slot lets the sensor be turned before the screws are tightened.

  • Sensor hole: Ø18.5 mm
  • Mounting: M4 (#8) hardware, 24.2 mm hole centre spacing
  • Material: 12-gauge stainless steel
Accessories
Retro-reflector BRT-2X2, square, 51 x 51 mm, acrylic
In stock: 15 pcs
10.00 €

BRT-2X2 is a Banner square acrylic retroreflector for photo sensors working in retroreflective mode. Two slots let it be screwed on, and optional brackets are available.

  • Reflector size: 51 x 51 mm
  • Overall size: 51.3 x 61 mm
  • Reflectivity factor: 1.0
  • Mounting: 2 slots, Ø4.2 mm
  • Temperature: max +50 °C
Accessories

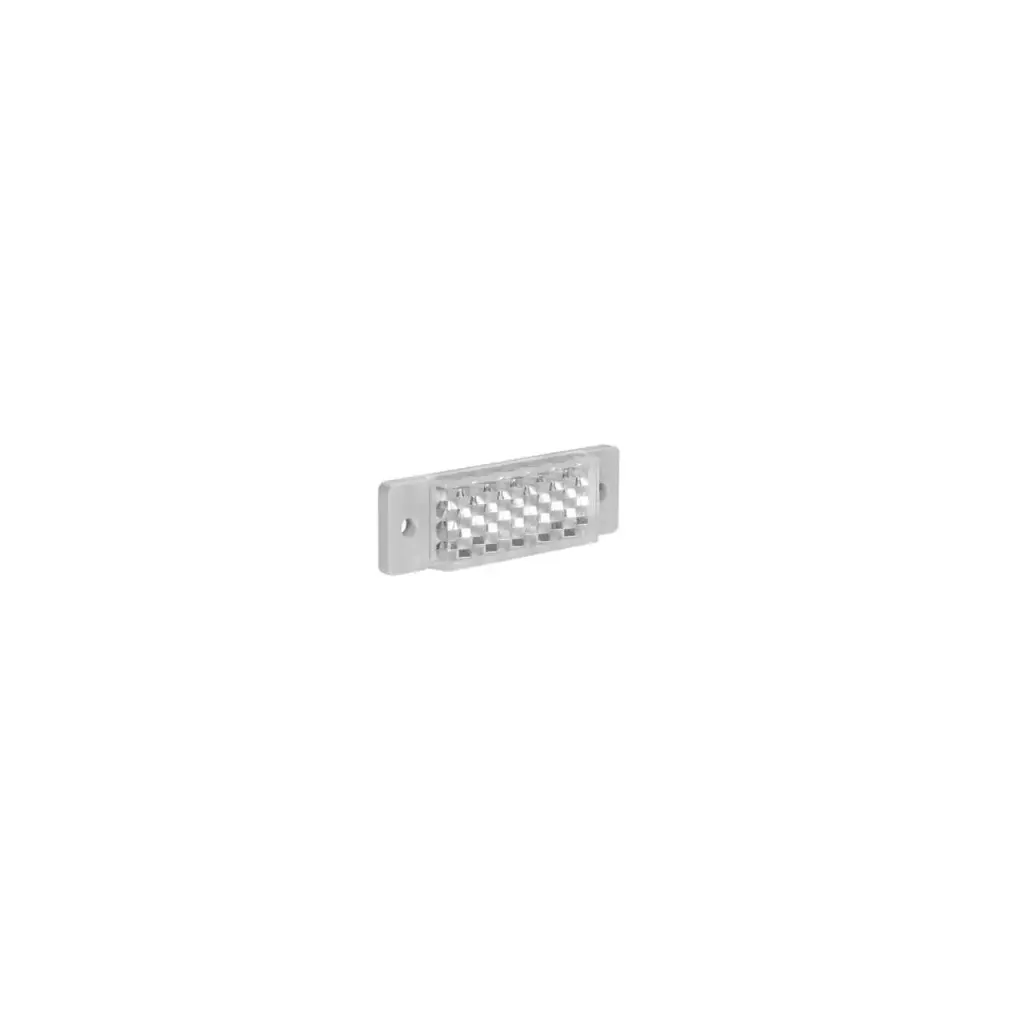

Retro-reflector BRT-40X18A, rectangular, 18 x 40 mm, acrylic
In stock: 10 pcs
10.00 €

BRT-40X18A is a Banner rectangular acrylic retroreflector for photo sensors working in retroreflective mode. Its narrow 18 mm width suits mounting positions with little space.

  • Reflector size: 18 x 40 mm
  • Overall size: 18 x 60 x 8 mm
  • Reflectivity factor: 1.0
  • Mounting: 2 holes, Ø3.5 mm, 50 mm centres
  • Temperature: -20...+60 °C
Accessories

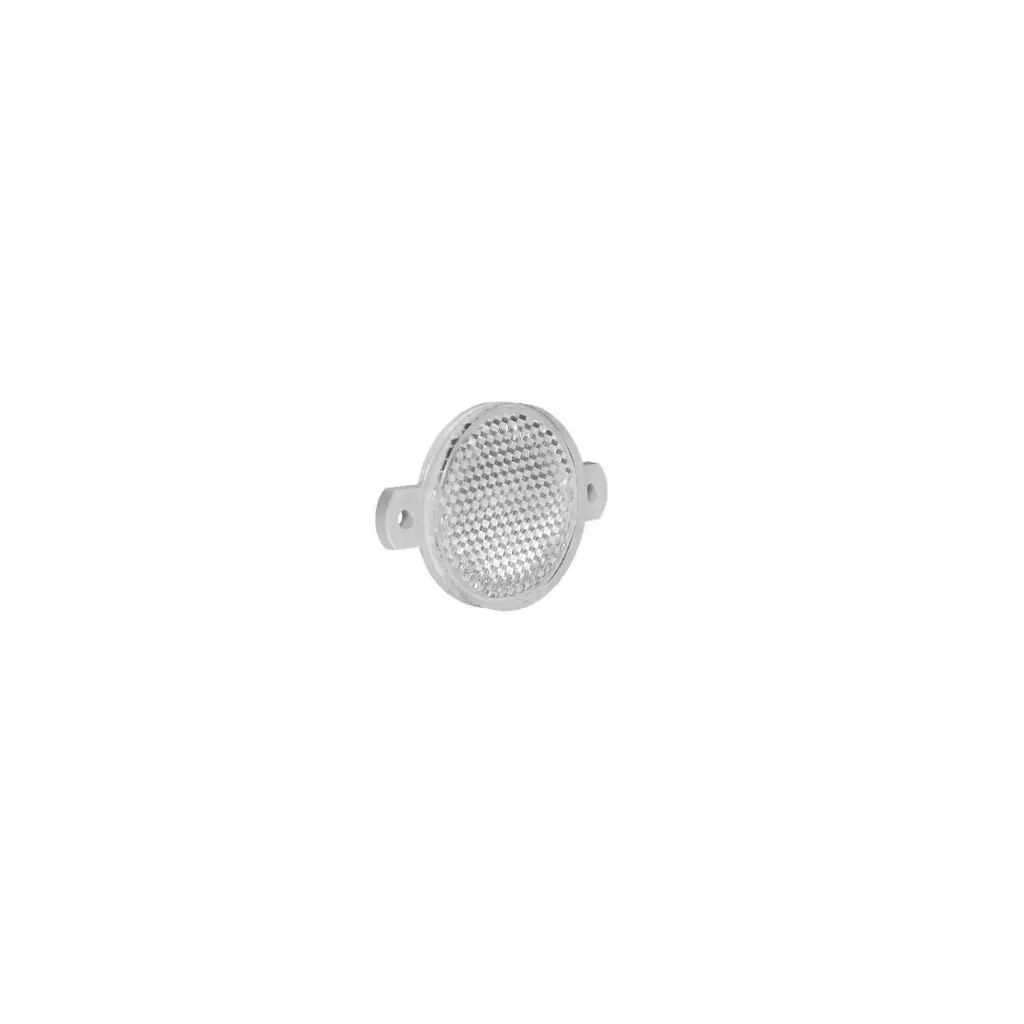

Retro-reflector BRT-42A, round, Ø42 mm, acrylic
In stock: 17 pcs
10.00 €

BRT-42A is a Banner round acrylic retroreflector on a base with two mounting holes, for photo sensors working in retroreflective mode.

  • Reflector size: Ø42 mm
  • Overall size: 60 x 42 mm
  • Reflectivity factor: 1.0
  • Mounting: 2 holes, Ø3.5 mm, 50 mm centres
  • Temperature: -20...+60 °C
Accessories

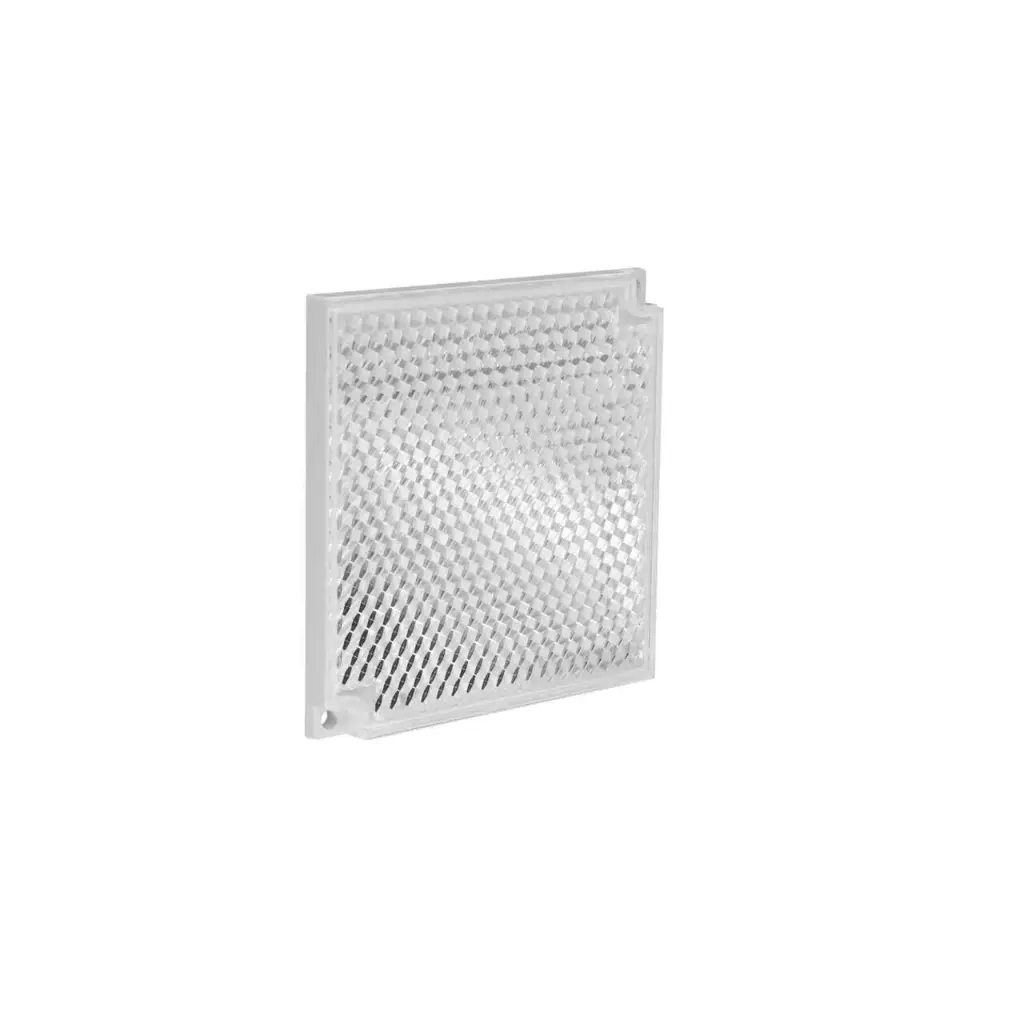

Retro-reflector BRT-77X77C, square, 77 x 77 mm, acrylic
In stock: 8 pcs
24.00 €

BRT-77X77C is a Banner square acrylic retroreflector for photo sensors working in retroreflective mode. It is fixed with two screws, and optional brackets are available.

  • Reflector size: 77 x 77 mm
  • Overall size: 84.5 x 84.5 x 9 mm
  • Reflectivity factor: 2.0
  • Mounting: 2 holes, Ø3.5 mm
  • Temperature: -20...+60 °C
Accessories

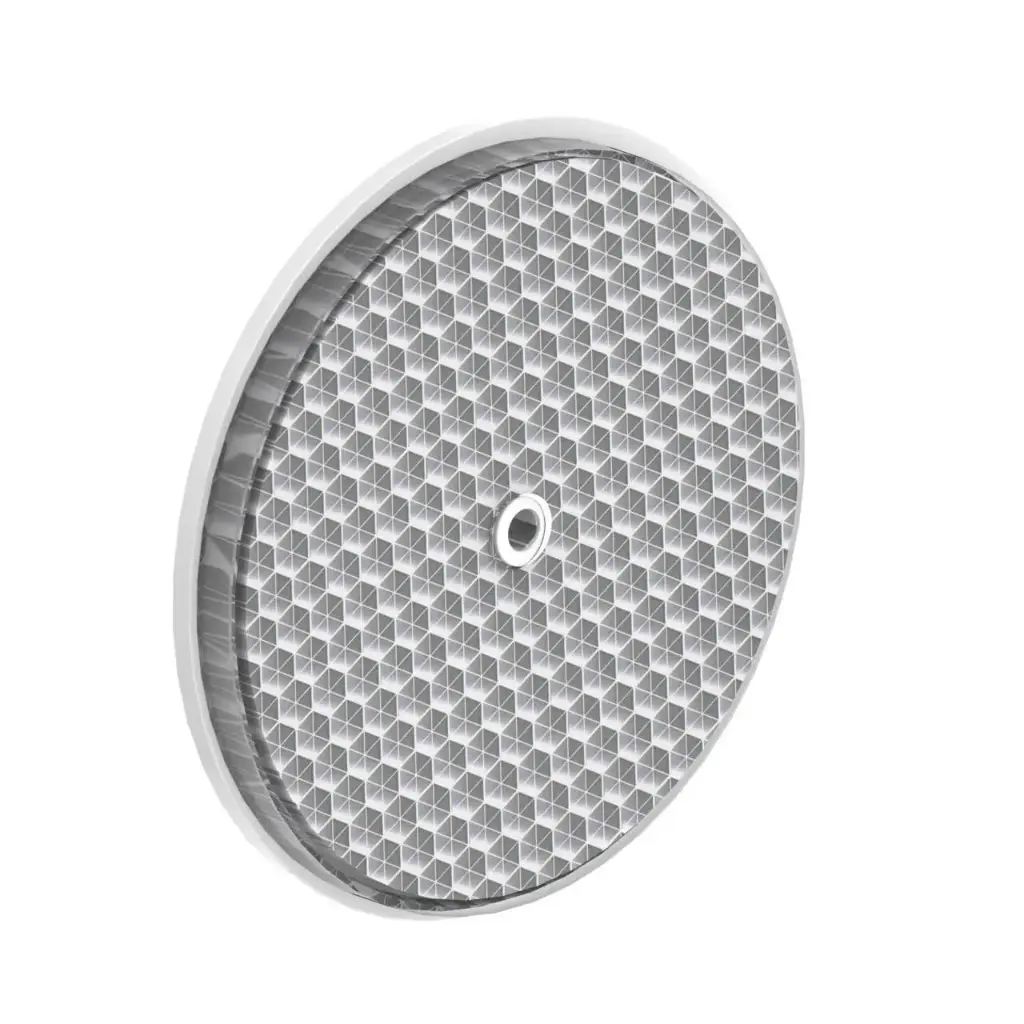

Retro-reflector BRT-84, round, Ø84 mm, centre hole, acrylic
In stock: 22 pcs
10.00 €

BRT-84 is a Banner round acrylic retroreflector with a centre mounting hole, for photo sensors working in retroreflective mode.

  • Diameter: 84 mm
  • Reflectivity factor: 1.4
  • Mounting: centre hole, Ø4.5 mm
  • Temperature: -20...+60 °C
Accessories
Test module TB3-CP80, for PNP/NPN and NAMUR sensors, M12 and M8, battery-powered
In stock: 2 pcs
79.40 €

TB3-CP80 is a TURCK test box for checking inductive, magnetic field, capacitive and photoelectric sensors on site or in the workshop, without dismounting the sensor. It runs on two 9 V E-block batteries and shows the switching state on two LEDs and with an acoustic signal.

  • Sensors: 2-wire DC, 3-/4-wire DC (PNP/NPN), NAMUR to DIN EN 60947-5-6
  • Connection: spring-type terminals, cable with M12 x 1 female connector, cable with M8 x 1 female connector
  • Supply: 18 VDC from 2 × 9 V E-block batteries
  • Display: 2 LEDs, green (PLUS) / blue (MINUS); acoustic signal via pin 4
  • Housing: PBT-GF30-V0, 80 x 80 x 40.5 mm

NAMUR sensors must not be operated in the hazardous area together with the test box. Testing in the non-hazardous area is allowed, and the sensor's EN 60079-0 and -11 approval stays valid after connecting it to the box.

Accessories
Test module TB4, for analog and PNP/NPN sensors, battery or 24VDC
In stock: 1 pcs
440.40 €

TB4 is a TURCK test box for testing and setting up sensors with analog or switching outputs on the machine, without connecting them to the machine supply. The sensor output is shown on an illuminated display and the analog value also as a bar graph.

  • Sensors: analog current/voltage output, 3-wire DC (PNP/NPN)
  • Supply: 18 VDC from 2 × 9 V E-block batteries, or external 24 VDC (>250 mA)
  • Connection: connector
  • Dimensions: 122 x 78.5 x 32 mm

The connector is switched between voltage and current output values by push button. Teachable sensors are set via the set button, which bridges pin 5 and pin 3. Hold the menu button for about 3 s to switch the box on or off.

Accessories
Retro-reflector BRT-92X92CB, square, 92 x 92 mm, black base, acrylic
In stock: 15 pcs
23.00 €

BRT-92X92CB is a Banner square acrylic retroreflector on a black mounting base, for photo sensors working in retroreflective mode. It is fixed with two screws, and optional brackets are available.

  • Reflector size: 92 x 92 mm
  • Overall size: 100 x 100 x 9 mm
  • Reflectivity factor: 3.0
  • Mounting: 2 holes, Ø3.5 mm
  • Temperature: max +50 °C
Accessories
Air purge collar APC-18, for M18 sensors, stainless steel, 1/8 in hose
In stock: 2 pcs
151.00 €

APC-18 is a Banner stainless steel collar that threads onto an 18 mm barrel sensor and blows clean air across the sensor face. The positive air pressure keeps water, dust and airborne dirt off the lens and also cools sensors exposed to ambient heat.

  • Fits: 18 mm threaded barrel sensors (M18 x 1)
  • Material: stainless steel
  • Air connection: 1/8 x 10-32 stainless steel barb fitting for 1/8 in ID hose
  • Air supply: 10 l/min at approx. 0.7 psi
  • Size: Ø 34 mm, adds approx. 16 mm to the sensor length

The collar has both internal and external M18 thread, so the bracket can hold either the sensor or the collar. Use clean, dry instrument air and teach the sensor while the air is flowing. Not for ultrasonic sensors: the air flow changes the speed of sound and shifts the measurement.

Accessories

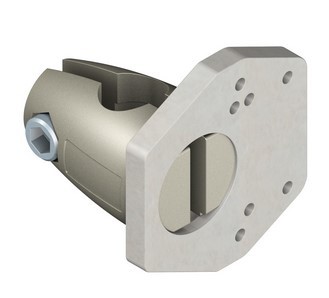

Mounting bracket SMBQ4XFAM12, for 12 mm rod systems, Q4X, QS18, QS30, zinc die-cast
In stock: 1 pcs
28.00 €

SMBQ4XFAM12 is a Banner bracket kit that clamps onto a 12 mm rod and carries a Q4X, QS18 or QS30 sensor on its flat plate. The rod clamp turns the sensor around the rod axis before it is locked.

  • Fits: Banner Q4X, QS18 and QS30 sensors
  • Rod: Ø 12 mm (1/2 in) rod bracket systems
  • Material: zinc die-cast (Zamak)
  • Size: plate 43.5 x 41.3 mm, sensor fixed with M3 screws
  • Included: 1 bracket with hardware pack; the socket head cap screw for the rod clamp is not included
Accessories

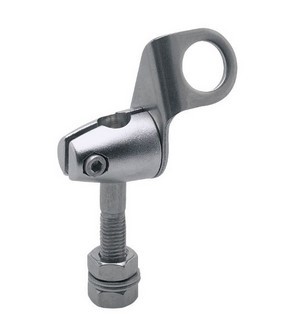

Mounting set E20719, M18 clamp, M10 bolt mounting, stainless steel fixture
Out of stock
9.20 €

E20719 is an ifm mounting set for position sensors: a M18 clamp on a fixture for M10 bolt mounting.

  • Fits: M18 threaded sensors
  • Mounting: M10 bolt mounting
  • Material: diecast zinc clamp, stainless steel fixture, galvanised steel screw, washers and nuts
  • Included: 1 × M10 x 45 mm cylinder screw, 2 × Ø 10.5 mm washers, 2 × M10 nuts
  • Weight: 168 g
Accessories

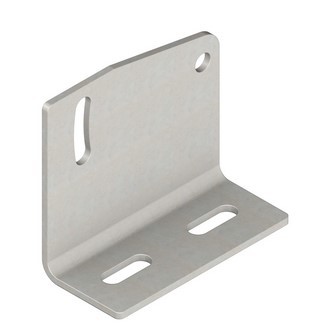

Mounting bracket SMBQ20LV, right-angle, ±10° tilt, stainless steel, for Q20
In stock: 7 pcs
11.00 €

SMBQ20LV is a Banner right-angle stainless steel bracket for mounting a Q20 sensor vertically from the back. The sensor can be tipped ±10° to align the beam after the bracket is fixed.

  • Fits: Banner Q20 sensors
  • Type: right-angle, vertical back mount, ±10° tilt
  • Material: stainless steel
  • Included: 1 bracket, no mounting hardware
Accessories

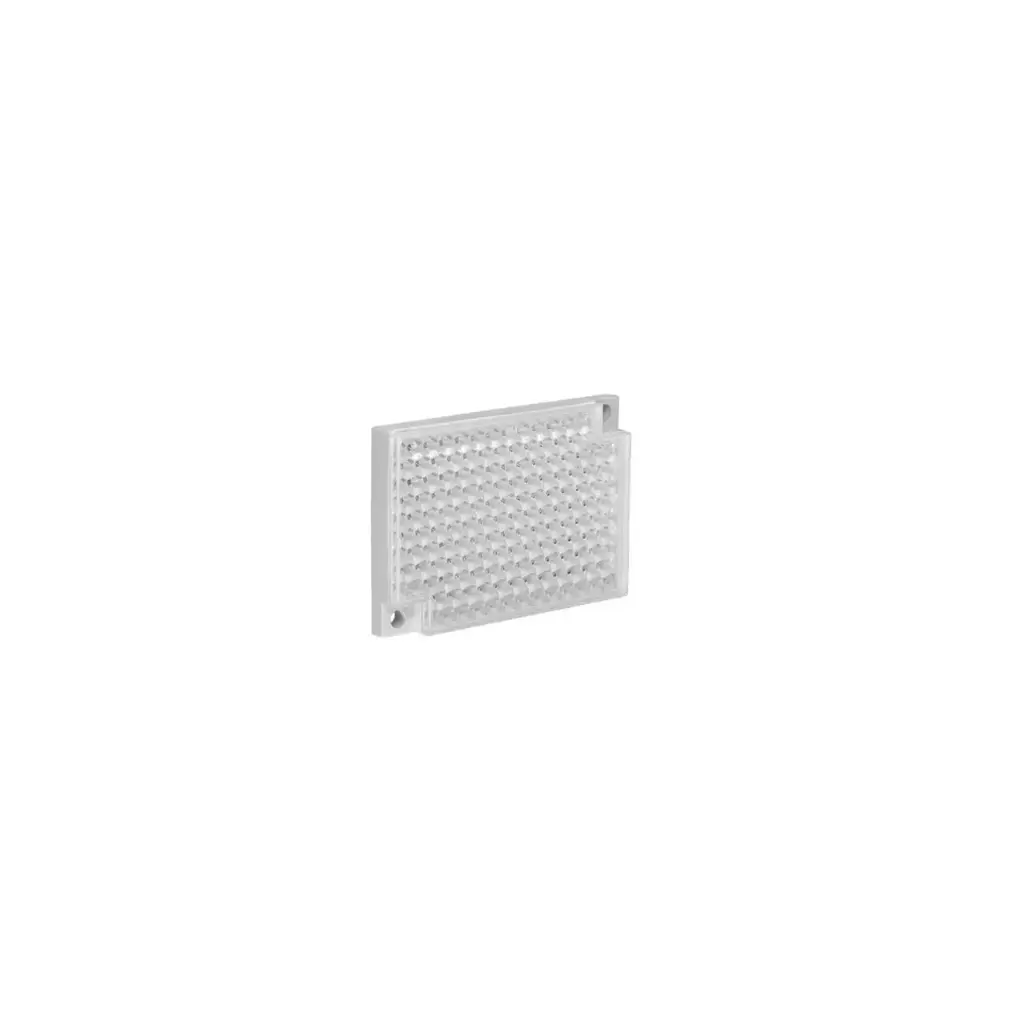

Retro-reflector BRT-60X40C, rectangular, 40 x 60 mm, acrylic
In stock: 25 pcs
14.00 €

BRT-60X40C is a Banner rectangular acrylic retroreflector for photo sensors working in retroreflective mode.

  • Size: 40 x 60 mm
  • Reflectivity factor: 1.4
  • Temperature: -20...+60 °C
Accessories

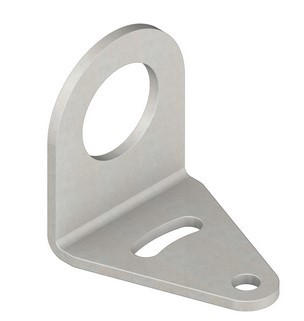

Mounting bracket SMBQS12PD, right-angle, nose mount, Ø13 mm hole, stainless steel
In stock: 10 pcs
9.00 €

SMBQS12PD is a Banner right-angle bracket that holds the sensor by its threaded nose through a 13 mm hole.

  • Sensor hole: Ø13.0 mm
  • Mounting: Ø3.5 mm and 3.5 x 10.6 mm slot, 14.0 mm hole centre spacing
  • Material: 16-gauge 300 series stainless steel
Accessories
Retro-reflector BRT-51X51BM, square, 51 x 51 mm, micro-prism, acrylic
In stock: 4 pcs
24.00 €

BRT-51X51BM is a Banner square acrylic retroreflector with micro-prism geometry, for photo sensors working in retroreflective mode. Two slots let it be screwed on, and optional brackets are available.

  • Reflector size: 51 x 51 mm
  • Overall size: 51 x 61 x 6.2 mm
  • Reflectivity factor: 1.5
  • Mounting: 2 slots, Ø4.6 mm
  • Temperature: -20...+50 °C
Accessories

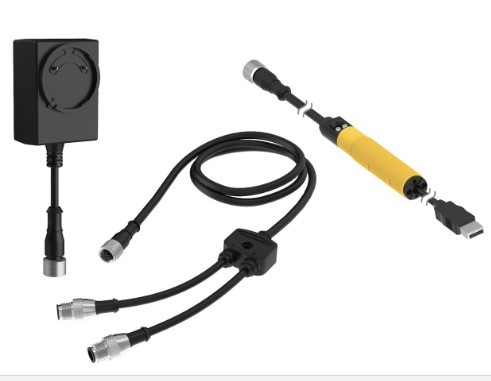

Configuration kit PRO-KIT, converter cable, splitter, power supply
In stock: 1 pcs
271.00 €

PRO-KIT is a Banner kit for configuring Pro series lights and selected sensors from a PC with the Pro Editor software. It is needed for initial configuration only, not for the device's operation in the machine.

  • Included: converter cable, splitter and power supply
  • Software: Banner Pro Editor
  • Fits: Banner Pro series lights and selected sensors

CE and UKCA compliant.

Accessories

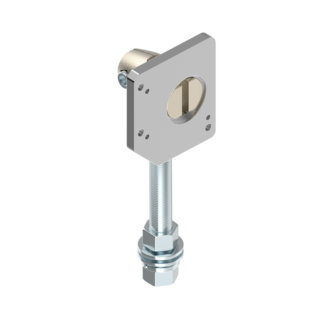

Mounting bracket SMBQ5XFA, swivel, T-slot mount, for Q5X, zinc die-cast
Out of stock
33.00 €

SMBQ5XFA is a Banner swivel bracket that fixes a sensor to the T-slot of an extruded aluminium profile. Tilt and pan adjustment lets the beam be aligned after the bracket is fixed.

  • Fits: Banner Q5X, QM42, PD45, PD49, QC50
  • Adjustment: tilt and pan
  • Material: zinc die-cast (Zamak)
  • Hardware: 3/8-16 x 4 in socket head cap screw included

Some sensors can also be side-mounted with the 3 mm screws supplied with the sensor.

Accessories
Mounting bracket SMB30MM, right-angle, 30 mm hole, stainless steel
Out of stock
11.00 €

SMB30MM is a Banner right-angle bracket for sensors with a 30 mm thread. Curved mounting slots let the sensor be turned before the screws are tightened.

  • Sensor hole: Ø30.1 mm
  • Mounting: M6 (¼") hardware, 42.6 x 7 mm slot and Ø6.4 mm hole
  • Material: 12-gauge stainless steel
Accessories

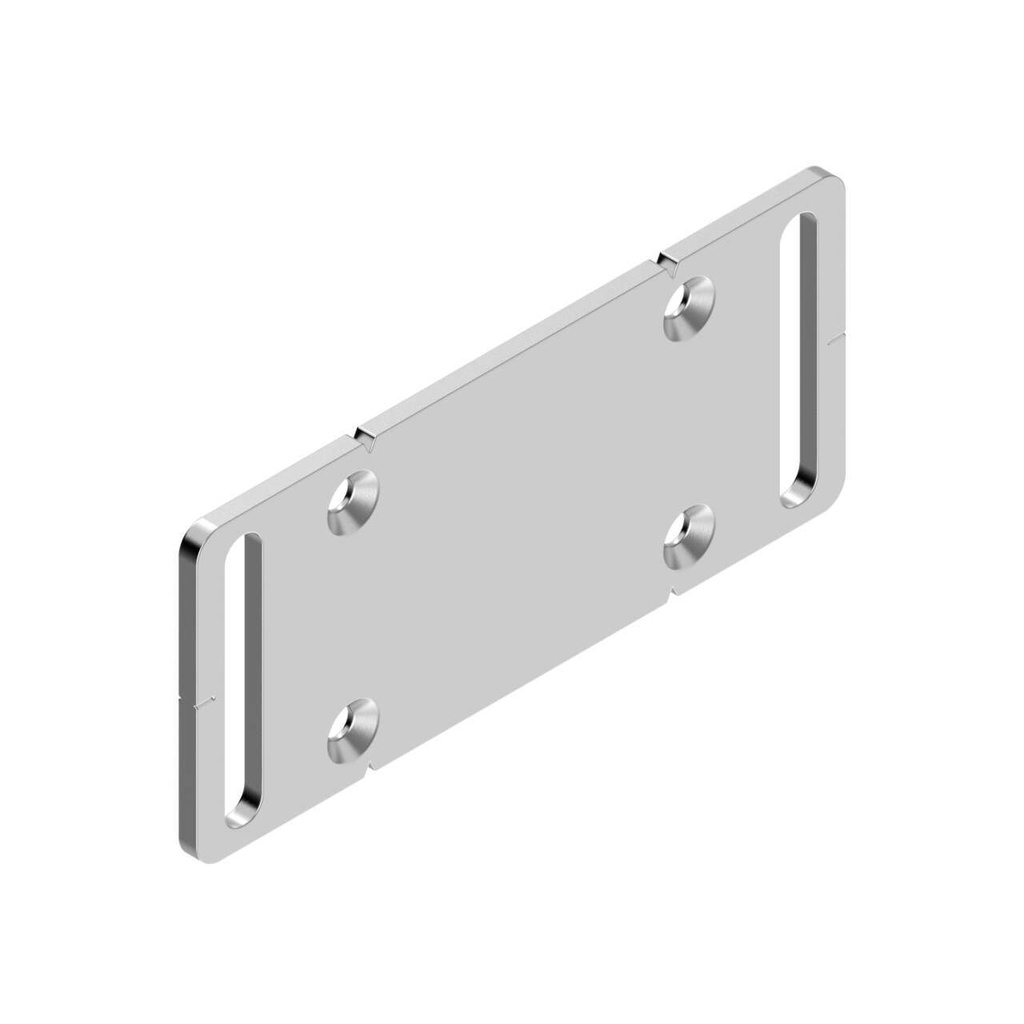

Mounting bracket SMBZMXMP, flat plate, flush mount, for 3DTOF, stainless steel
In stock: 1 pcs
41.00 €

SMBZMXMP is a Banner stainless steel plate for flush mounting a sensor of the 3DTOF series. Besides the M4 holes for the sensor it carries a 1/4-20 thread, so the plate can also be fixed to an articulated (Bogen-type) arm.

  • Fits: Banner 3DTOF series
  • Material: stainless steel
  • Hardware: M4 x 0.7 screws included
  • Extra mounting: 1/4-20 thread
Accessories

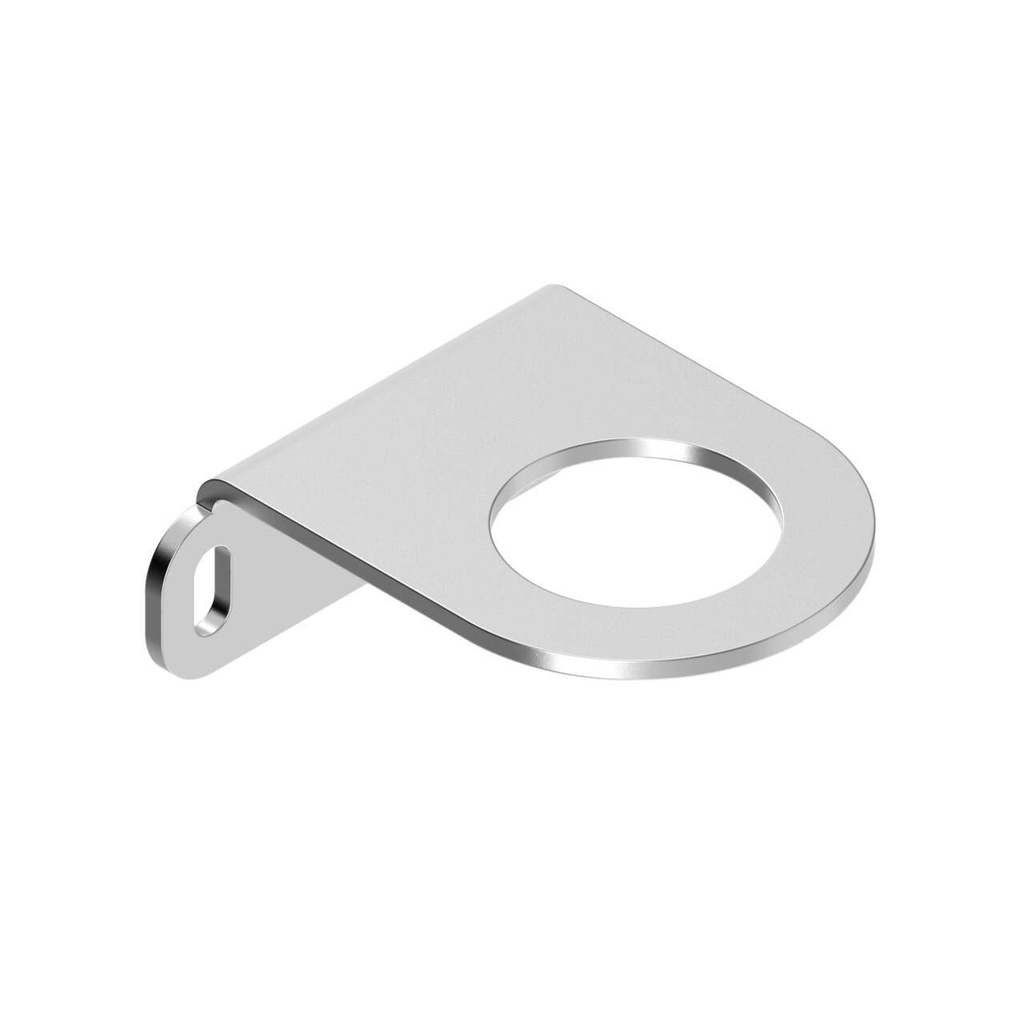

Mounting bracket LMB30LP, low profile, 30 mm hole, stainless steel
In stock: 1 pcs
11.00 €

LMB30LP is a Banner low-profile flat bracket with a 30 mm mounting hole.

  • Mounting hole: Ø30.5 mm
  • Mounting: 2x Ø5.5 mm holes
  • Dimensions: 65 x 50 mm
  • Material: 300 series stainless steel
Accessories

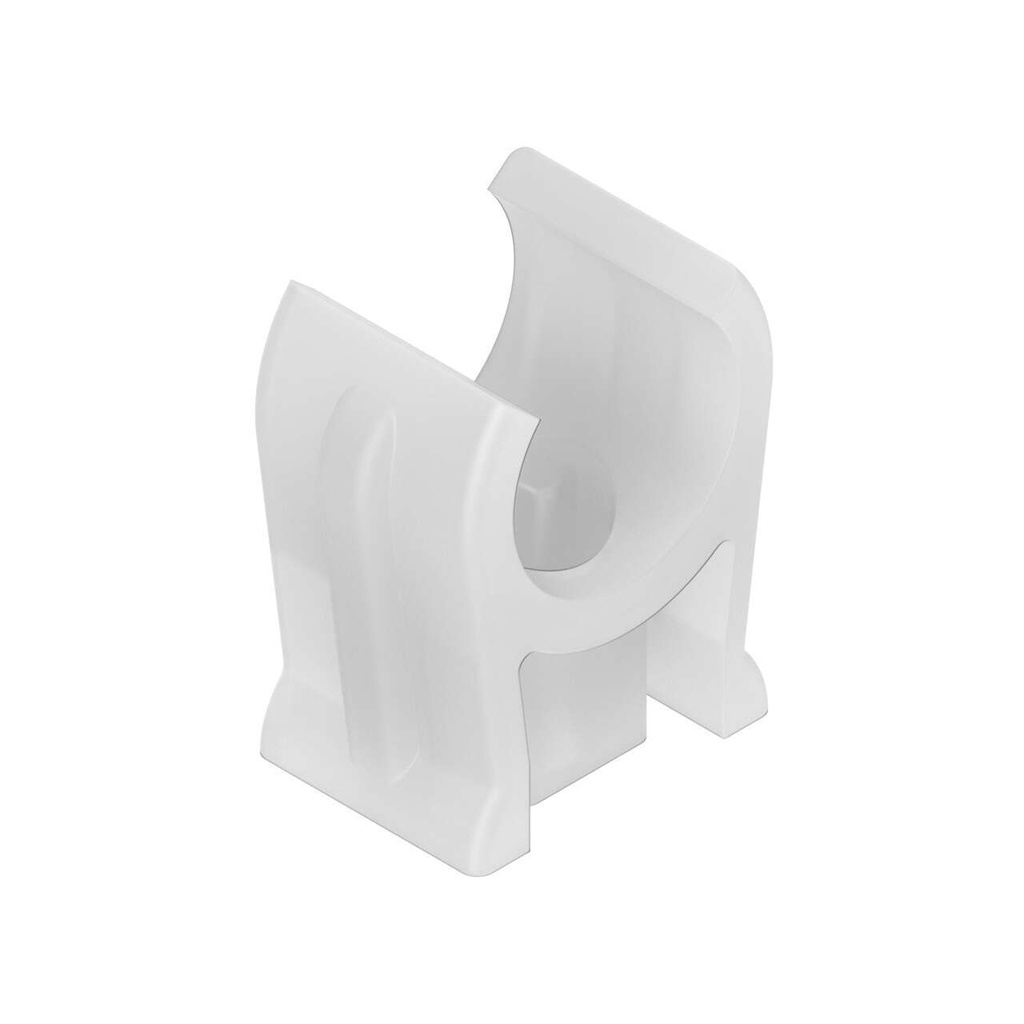

Mounting bracket LMBS15SP, snap clip, for S15, polypropylene, pack of 5
In stock: 1 pcs
9.00 €

LMBS15SP is a Banner snap clip that holds a device in the S15 housing. It is fixed with the supplied thread-forming screws or with M5 or No. 10 hardware.

  • Fits: Banner S15 housing
  • Material: white polypropylene
  • Mounting: clearance for M5 or No. 10 hardware
  • Included: pack of 5, with thread-forming hardware
Accessories

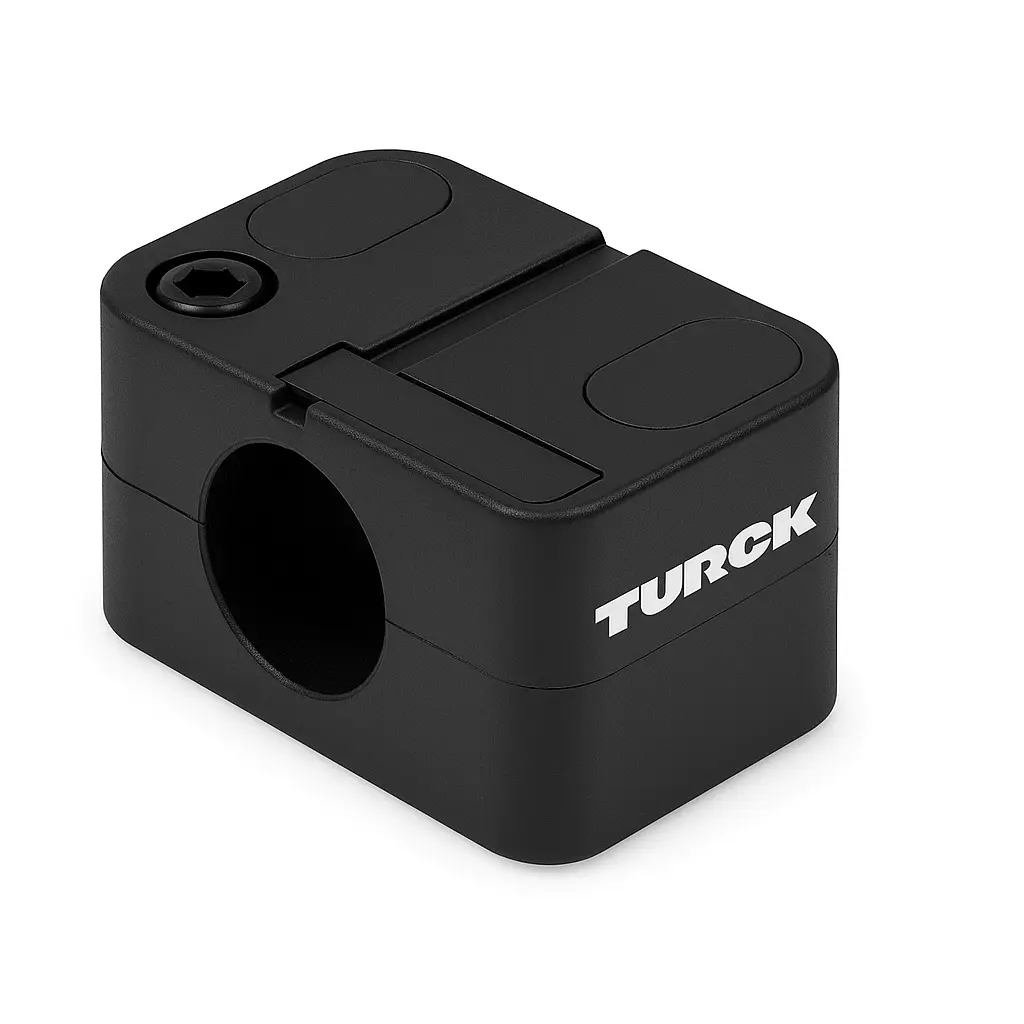

Mounting bracket BST-18B, M18, PA6, with dead-stop
Out of stock
13.00 €

BST-18B is a TURCK PA6 mounting bracket for M18 threaded sensors. The built-in dead-stop fixes the sensor position in the bracket.

  • Fits: M18 threaded barrel sensors
  • Material: PA6, black
  • Dimensions: 30 x 40 x 24 mm
  • Housing nut torque: max. 1 Nm
  • Design: with dead-stop
Accessories
Mounting bracket BSS-12, M12, polypropylene
Out of stock
6.22 €

BSS-12 is a TURCK polypropylene mounting bracket for M12 threaded sensors. It consists of two half-shells clamped together with two Allen screws.

  • Fits: M12 x 1 threaded barrel sensors
  • Material: polypropylene (PP), green
  • Dimensions: 30 x 34 x 26.5 mm
  • Housing nut torque: max. 0.5 Nm
  • Included: 2 × M6 Allen screws

For DIN rail mounting, the BSS-TSM rail nut is ordered separately.

Accessories

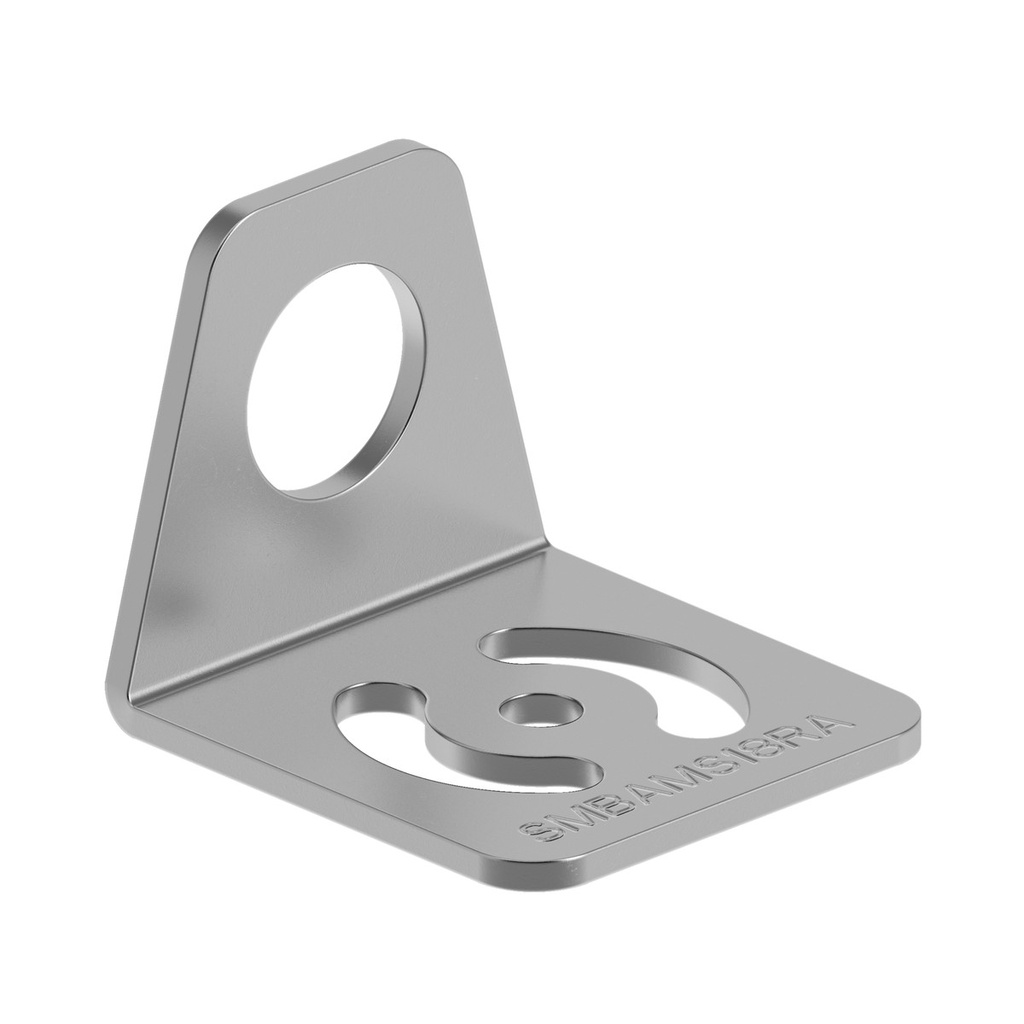

Mounting bracket SMBAMS18RA, right-angle, 18 mm hole, cold-rolled steel
Out of stock
20.00 €

SMBAMS18RA is a right-angle bracket from the Banner SMBAMS series for barrel sensors with an 18 mm thread.

  • Sensor hole: Ø19.0 mm, for 18 mm threaded sensors
  • Material: 12-ga (2.6 mm) cold-rolled steel
  • Adjustment: articulation slots, rotation beyond 90°
  • Included: mounting hardware
Accessories

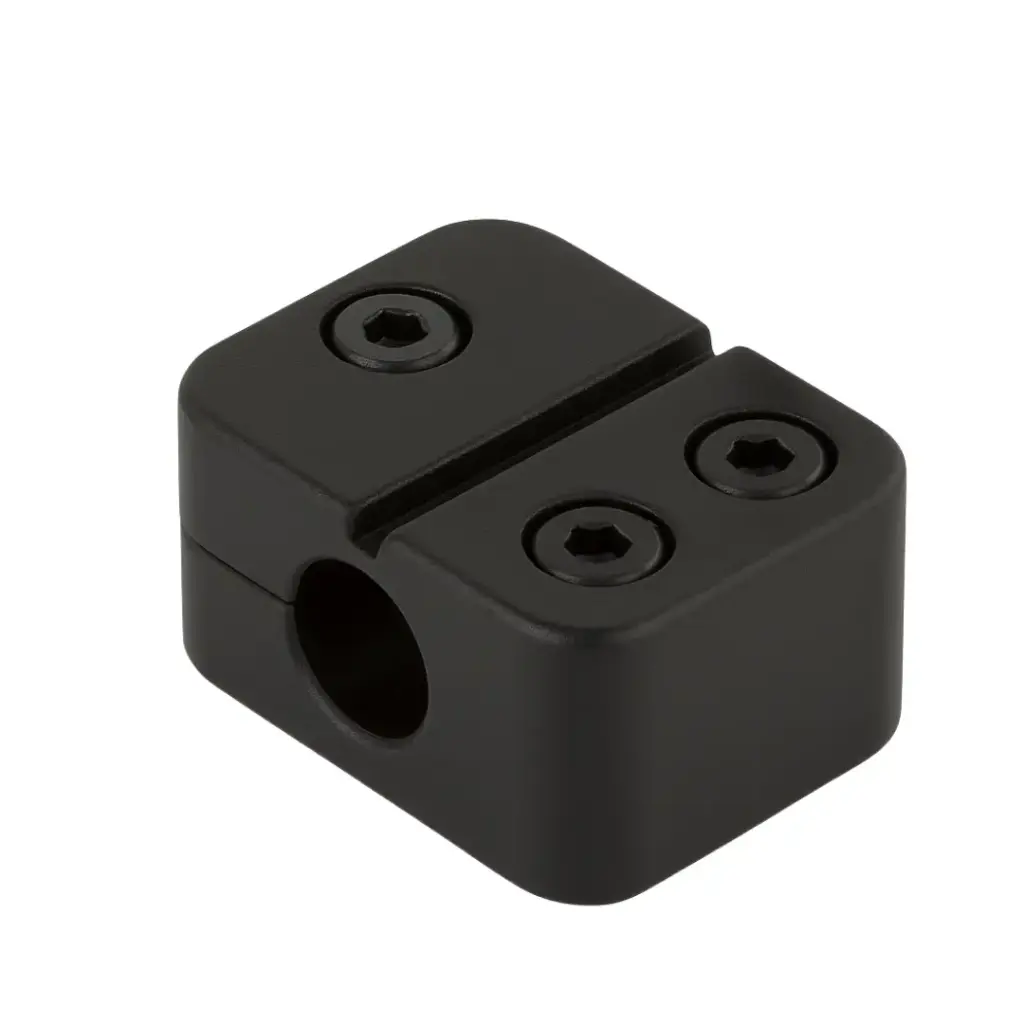

Mounting bracket BST-08B, M8, PA6, with dead-stop
Out of stock
9.79 €

BST-08B is a TURCK PA6 mounting bracket for M8 threaded sensors. The built-in dead-stop fixes the sensor position in the bracket.

  • Fits: M8 threaded barrel sensors
  • Material: PA6
  • Dimensions: 16 x 20 x 12 mm
  • Design: with dead-stop
Accessories
Optical fibre PIRS1X326T5AL47, plastic, opposed array 47 mm, 32 cores, side view, 2 m
Out of stock
184.00 €

PIRS1X326T5AL47 is a Banner plastic fibre-optic array for opposed-mode sensing: the 47 mm sensing end carries 32 fibre cores of Ø 0.25 mm side by side, so a small object anywhere along the array interrupts the light. The beam exits from the side of the flat sensing head.

  • Array: 47 mm, 32 cores Ø 0.25 mm; side-view sensing head 55.2 x 20.2 x 8.7 mm
  • Fibre: plastic, polyethylene jacket, length 2 m, T5 termination with stainless steel ferrule
  • Bend radius: minimum 60 mm
  • Temperature: -55...+70 °C

Supplied as a pair for emitter and receiver. The drawing states that it is not for use with D10 amplifiers; Banner gives a range of 438 mm with a DF-G1 amplifier.

Accessories

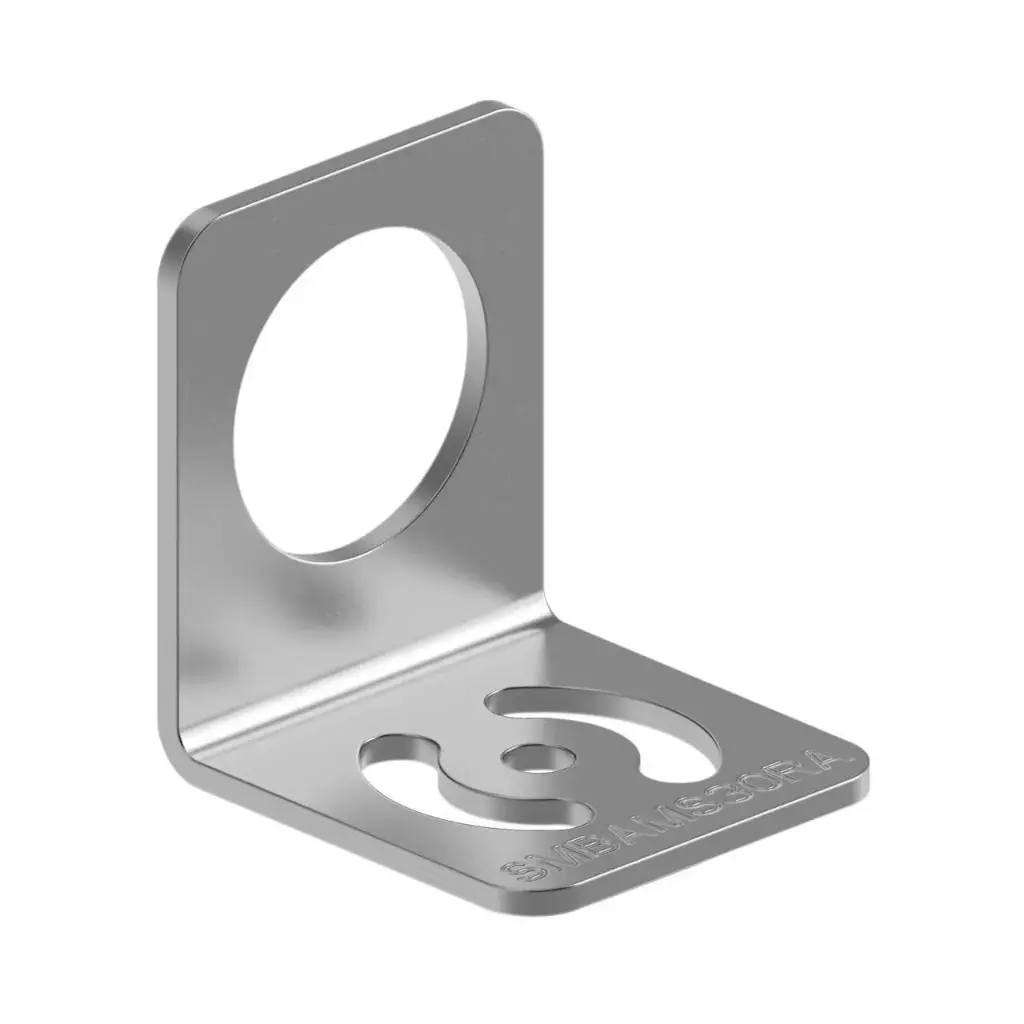

Mounting bracket SMBAMS30RA, right-angle, 30 mm hole, steel
Out of stock
19.00 €

SMBAMS30RA is a Banner SMBAMS series right-angle bracket for sensors with a 30 mm housing. Its slots let the sensor be turned through more than 90°.

  • Sensor hole: Ø31.0 mm
  • Mounting: Ø6.5 mm hole and 26.8 × 7.0 mm slot
  • Material: 2.6 mm (12-gauge) cold-rolled steel
Accessories
Retro-reflector BRT-84, round, Ø84 mm, centre hole, acrylic
In stock: 1 pcs
5.00 €

BRT-84 is a Banner round acrylic retroreflector with a centre mounting hole, for photo sensors working in retroreflective mode.

  • Diameter: 84 mm
  • Reflectivity factor: 1.4
  • Mounting: centre hole, Ø4.5 mm
  • Temperature: -20...+60 °C

Supplied without individual packaging.

Accessories
Mounting bracket SMB22A, right-angle, 22 mm hole, stainless steel
Out of stock
9.00 €

SMB22A is a Banner right-angle bracket for sensors with a 22 mm housing. The curved slot lets the sensor be turned before the screws are tightened.

  • Sensor hole: Ø22.2 mm
  • Mounting: Ø4.6 mm hole and 4.6 x 16.9 mm slot, 26.0 mm hole centre spacing
  • Material: 12-gauge stainless steel
Accessories

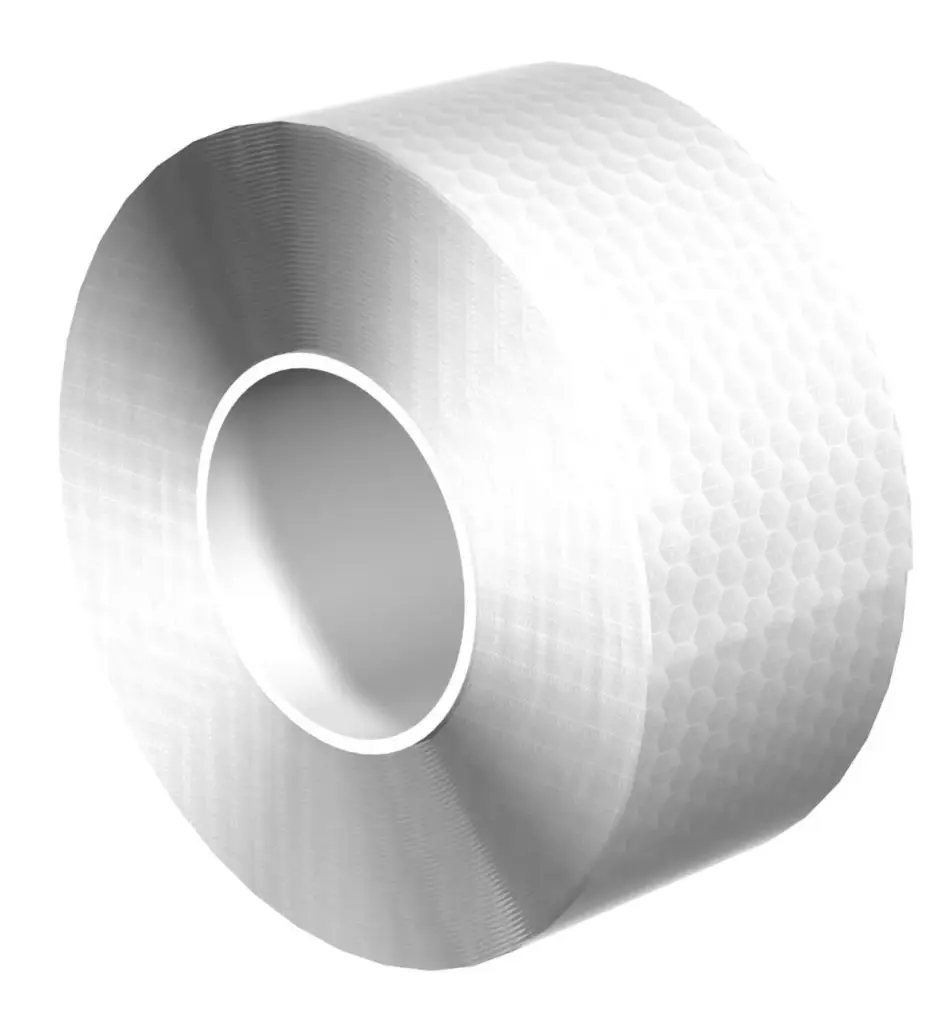

Retro-reflective tape BRT-THG-2-100, 50 mm x 2.5 m, self-adhesive
In stock: 40 pcs
0.28 €

BRT-THG-2-100 is a Banner self-adhesive retroreflective tape, 50 mm wide and 2.5 m long, used as a target for photo sensors in retroreflective mode. It is not recommended for polarized retroreflective sensors.

  • Size: 50 mm wide, 2.5 m long
  • Reflectivity factor: 0.7
  • Temperature: max +60 °C

For full adhesion the surface must be clean.

Showing 40 of 40 results
