PBT46U is a Banner bifurcated plastic fibre for diffuse mode with an M6 threaded sensing tip. One sensing end both emits and receives light; the two control ends go to the emitter and receiver of the sensor.

• Range: DF-G1 220 mm, D10D 300 mm, D10B 100 mm, D10A 85 mm
• Fibre: Ø1 mm, length 2 m, unterminated
• Tip: M6 threaded
• Material: acrylic (PMMA) core, black polyethylene jacket, nickel-plated brass tip
• Bend radius: at least 25 mm
• Temperature: -30...+70 °C

The control ends are unterminated and are cut to length with the PFC-4 cutter supplied with the fibre. The acrylic core is damaged by acids, strong alkalis and solvents; Banner recommends plastic fibres for visible-light sensors only.

QM26VPAF200Q5 is a Banner QM26 series washdown photo sensor in a 316L stainless steel housing, with adjustable background suppression and a small visible red 660 nm light spot. It detects objects up to the set cutoff and ignores the background behind them.

• Sensing range: cutoff adjustable 5-200 mm
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA per output; response 500 µs, repeatability 150 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: 316L stainless steel, coated acrylic window, 25.4 mm mounting hole spacing
• Environment: IP67, IP69K, -30...+70 °C, ECOLAB certified
• Connection: 200 mm PVC cable with M12 4-pin male connector

Made from FDA-compliant materials for food and pharmaceutical lines, rated for 1500 psi washdown at 80 °C, with the window coated against hydrogen peroxide and alcohol. The cutoff is set with an adjustment screw. Banner marks this part as soon to be obsolete.

Vibration and shock to IEC 60947-5-2.

S186EQ is the emitter of a Banner S18 series opposed-mode photo sensor pair. It sends an infrared 950 nm beam to a separate S18SP6R or S18SN6R receiver up to 20 m away; an object is detected when it breaks the beam.

• Sensing range: 20 m with an S18SP6R or S18SN6R receiver
• Output: none (emitter)
• Supply: 10-30 V DC, 25 mA
• Housing: PBT polyester, polycarbonate lens, M18x1 threaded barrel, jam nuts included
• Environment: IP67, IP69K, NEMA 6P, -40...+70 °C
• Connection: integral M12 4-pin male connector

The housing is rated IP69K when the cordset is protected from direct spray. Works with an S18 series receiver, ordered separately. A green LED shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

S18SP6RQ is the receiver of a Banner S18 series opposed-mode photo sensor pair. It switches when an object breaks the infrared beam from a separate S186E emitter up to 20 m away.

• Sensing range: 20 m with an S186E emitter
• Output: PNP, SPDT - NO (Light Operate) and NC (Dark Operate), 150 mA each
• Response: 3 ms ON, 1.5 ms OFF; repeatability 375 µs
• Supply: 10-30 V DC, 20 mA
• Housing: PBT polyester, polycarbonate lens, M18x1 threaded barrel, jam nuts included
• Environment: IP67, IP69K, NEMA 6P, -40...+70 °C
• Connection: integral M12 4-pin male connector

The NC output can be wired as a normally open marginal-signal alarm instead, depending on how it is connected to the supply. A green LED shows power and flashes on output overload; an amber LED shows the NO output on and flashes at marginal excess gain. Works with an S186E emitter, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

T18SN6R is the receiver of a Banner T18 series opposed-mode photo sensor pair, in a right-angle 18 mm encapsulated housing for washdown areas. It switches when an object breaks the infrared beam from a T18 emitter up to 20 m away.

• Sensing range: 20 m with a T18 emitter
• Output: complementary NPN, Light Operate and Dark Operate
• Response: 3 ms ON, 1.5 ms OFF; repeatability 375 µs
• Supply: 10-30 V DC
• Housing: right-angle, M18 thread, thermoplastic, polycarbonate lens, encapsulated
• Environment: IP67, IP69K, NEMA 4X, -40...+70 °C
• Connection: 2 m PVC cable, 4 wires

Needs a T18 emitter, ordered separately. ECOLAB certified chemical resistance. Banner lists this model as obsolete; it is sold while stock lasts.

SMB30A is a Banner right-angle bracket for sensors with a 30 mm housing. The curved slot lets the sensor be turned before the screws are tightened.

• Sensor hole: Ø30.5 mm
• Mounting: M6 (¼") hardware, 40 mm hole centre spacing
• Material: 12-gauge stainless steel

SMB18A is a Banner right-angle bracket for sensors with an 18 mm thread. The curved slot lets the sensor be turned before the screws are tightened.

• Sensor hole: Ø18.5 mm
• Mounting: M4 (#8) hardware, 24.2 mm hole centre spacing
• Material: 12-gauge stainless steel

Q45BB6RQ is the receiver of a Banner Q45BB6 series opposed-mode photo sensor pair. It switches when an object breaks the infrared 880 nm beam from a separate Q456EQ emitter up to 60 m away.

• Sensing range: 60 m with a Q456EQ emitter
• Output: bipolar, one PNP and one NPN, Light or Dark Operate selected by switch, 250 mA each (150 mA at +70 °C)
• Response: 2 ms ON, 1 ms OFF; repeatability 0.25 ms
• Supply: 10-30 V DC, < 50 mA
• Housing: reinforced thermoplastic polyester, o-ring-sealed polycarbonate cover, acrylic lenses, stainless steel hardware
• Environment: IP67, NEMA 6, -40...+70 °C, built for 1200 psi washdown
• Connection: integral 7/8" Mini 4-pin male connector

Sensitivity is set with a multi-turn potentiometer under the sealed cover. Indicators: green for power, red for received signal (pulses with signal strength), amber for output. Works with a Q456EQ emitter, ordered separately; the high excess gain of the pair suits long distances and dusty or dirty areas.

Q456EQ5 is the emitter of a Banner Q45BB6 series opposed-mode photo sensor pair. It sends an infrared 880 nm beam to a separate Q45BB6 receiver up to 60 m away; an object is detected when it breaks the beam.

• Sensing range: 60 m with a Q45BB6 receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: reinforced thermoplastic polyester, o-ring-sealed polycarbonate cover, acrylic lenses, stainless steel hardware
• Environment: IP67, NEMA 6, -40...+70 °C, built for 1200 psi washdown
• Connection: integral M12 4-pin male connector

The emitter has no output and works with a Q45BB6RQ5 receiver, ordered separately. The high excess gain of the pair makes it suited to long distances and dusty or dirty areas.

BRT-2X2 is a Banner square acrylic retroreflector for photo sensors working in retroreflective mode. Two slots let it be screwed on, and optional brackets are available.

• Reflector size: 51 x 51 mm
• Overall size: 51.3 x 61 mm
• Reflectivity factor: 1.0
• Mounting: 2 slots, Ø4.2 mm
• Temperature: max +50 °C

S18-2VNDL-2M is a Banner S18-2 series diffuse photo sensor in an 18 mm plastic barrel. It detects objects by the visible red light they reflect back, up to 750 mm from the sensor.

• Sensing range: 750 mm on a 90 % white test card
• Output: complementary NPN, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 16 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: 2 m PVC cable

The range applies to a white card; darker objects are detected at a shorter distance. Sensitivity is set with a single-turn potentiometer. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

S18-2VPDL-Q8 is a Banner S18-2 series diffuse photo sensor in an 18 mm plastic barrel. It detects objects by the visible red light they reflect back, up to 750 mm from the sensor.

• Sensing range: 750 mm on a 90 % white test card
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 16 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male connector

The range applies to a white card; darker objects are detected at a shorter distance. Sensitivity is set with a single-turn potentiometer. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

S18-2VPRL-2M is the receiver of a Banner S18-2 series opposed-mode photo sensor pair in an 18 mm plastic barrel. It switches when an object breaks the beam from a separate S18-2 emitter up to 25 m away.

• Sensing range: 25 m with an S18-2 emitter
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 1 ms OFF; repeatability 170 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 8 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: 2 m PVC cable

Works with an S18-2 emitter such as S18-2NAEL, ordered separately. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on. This model has no sensitivity adjustment.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

S18-2NAEL-2M is the emitter of a Banner S18-2 series opposed-mode photo sensor pair in an 18 mm plastic barrel. Its visible red beam reaches a separate S18-2 receiver up to 25 m away and makes alignment easy to see.

• Sensing range: 25 m with an S18-2 receiver
• Output: none (emitter)
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 17 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: 2 m PVC cable

This model has no power adjustment. It works with an S18-2VPRL, S18-2VNRL, S18-2VPRS or S18-2VNRS receiver, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

S18-2NAEL-Q8 is the emitter of a Banner S18-2 series opposed-mode photo sensor pair in an 18 mm plastic barrel. Its visible red beam reaches a separate S18-2 receiver up to 25 m away and makes alignment easy to see.

• Sensing range: 25 m with an S18-2 receiver
• Output: none (emitter)
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 17 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male connector

This model has no power adjustment. It works with an S18-2VPRL, S18-2VNRL, S18-2VPRS or S18-2VNRS receiver, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

BRT-40X18A is a Banner rectangular acrylic retroreflector for photo sensors working in retroreflective mode. Its narrow 18 mm width suits mounting positions with little space.

• Reflector size: 18 x 40 mm
• Overall size: 18 x 60 x 8 mm
• Reflectivity factor: 1.0
• Mounting: 2 holes, Ø3.5 mm, 50 mm centres
• Temperature: -20...+60 °C

BRT-42A is a Banner round acrylic retroreflector on a base with two mounting holes, for photo sensors working in retroreflective mode.

• Reflector size: Ø42 mm
• Overall size: 60 x 42 mm
• Reflectivity factor: 1.0
• Mounting: 2 holes, Ø3.5 mm, 50 mm centres
• Temperature: -20...+60 °C

BRT-77X77C is a Banner square acrylic retroreflector for photo sensors working in retroreflective mode. It is fixed with two screws, and optional brackets are available.

• Reflector size: 77 x 77 mm
• Overall size: 84.5 x 84.5 x 9 mm
• Reflectivity factor: 2.0
• Mounting: 2 holes, Ø3.5 mm
• Temperature: -20...+60 °C

SME312CVG is a Banner MINI-BEAM Expert convergent-mode photo sensor with a visible green 525 nm beam focused at 16 mm to a 1.0 mm spot. Banner recommends the green beam models for colour mark sensing.

• Sensing: convergent, focus 16 mm, spot 1.0 mm, green 525 nm
• Outputs: bipolar, 1x PNP and 1x NPN, 150 mA each (100 mA at 70 °C); response 500 µs, repeatability 100 µs
• Supply: 10-30VDC, below 45 mA
• Housing: MINI-BEAM, reinforced thermoplastic polyester, encapsulated, M18x1 nose thread with nut
• Environment: IP67, -20...+70 °C
• Connection: 2 m PVC cable, 5 conductors

Set with the push button or the gray remote TEACH wire: the first condition taught becomes Output ON, so Light or Dark Operate is not selected separately. The green indicator flashes when the signal approaches the switching threshold.

BRT-84 is a Banner round acrylic retroreflector with a centre mounting hole, for photo sensors working in retroreflective mode.

• Diameter: 84 mm
• Reflectivity factor: 1.4
• Mounting: centre hole, Ø4.5 mm
• Temperature: -20...+60 °C

QS18VP6LV is a Banner QS18 series retroreflective photo sensor with a visible red beam and a 6.5 m range with a BRT-84 reflector. The object is detected when it breaks the beam between the sensor and the reflector.

• Sensing range: 6.5 m with BRT-84 reflector
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 600 µs ON/OFF; repeatability 150 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: 2 m PVC cable, 4 wires

The beam is not polarized, so shiny objects can reflect it back like a reflector would; for those a polarized model fits better. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

QS18VP6FP is a Banner QS18 series photo sensor for plastic fibre optics, with a visible red 660 nm light source. The fibres carry the light to and from the sensing point, so the sensor body can sit away from a tight or hot spot.

• Sensing range: depends on the fibre and sensing mode
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 600 µs ON/OFF; repeatability 150 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: 2 m PVC cable, 4 wires

Plastic fibre optics are ordered separately. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

QS18VP6LVQ8 is a Banner QS18 series retroreflective photo sensor with a visible red beam and a 6.5 m range with a BRT-84 reflector. The object is detected when it breaks the beam between the sensor and the reflector.

• Sensing range: 6.5 m with BRT-84 reflector
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 600 µs ON/OFF; repeatability 150 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: integral M12 4-pin male connector

The beam is not polarized, so shiny objects can reflect it back like a reflector would; for those a polarized model fits better. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

QS18VP6FPQ8 is a Banner QS18 series fibre optic amplifier for plastic fibres with a visible red 660 nm light source. The sensing range depends on the fibre and sensing mode used; gain is set with a single-turn potentiometer.

• Output: complementary PNP (SPDT), 100 mA per output
• Response: 600 µs ON/OFF, repeatability 150 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 3 mm mounting hardware included
• Environment: IP67, -20...+70 °C
• Connection: M12 4-pin male connector

A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain (1 to 1.5 times).

Vibration per MIL-STD-202F, Method 201A; shock per IEC 60947-5-2 (30 G, 11 ms).

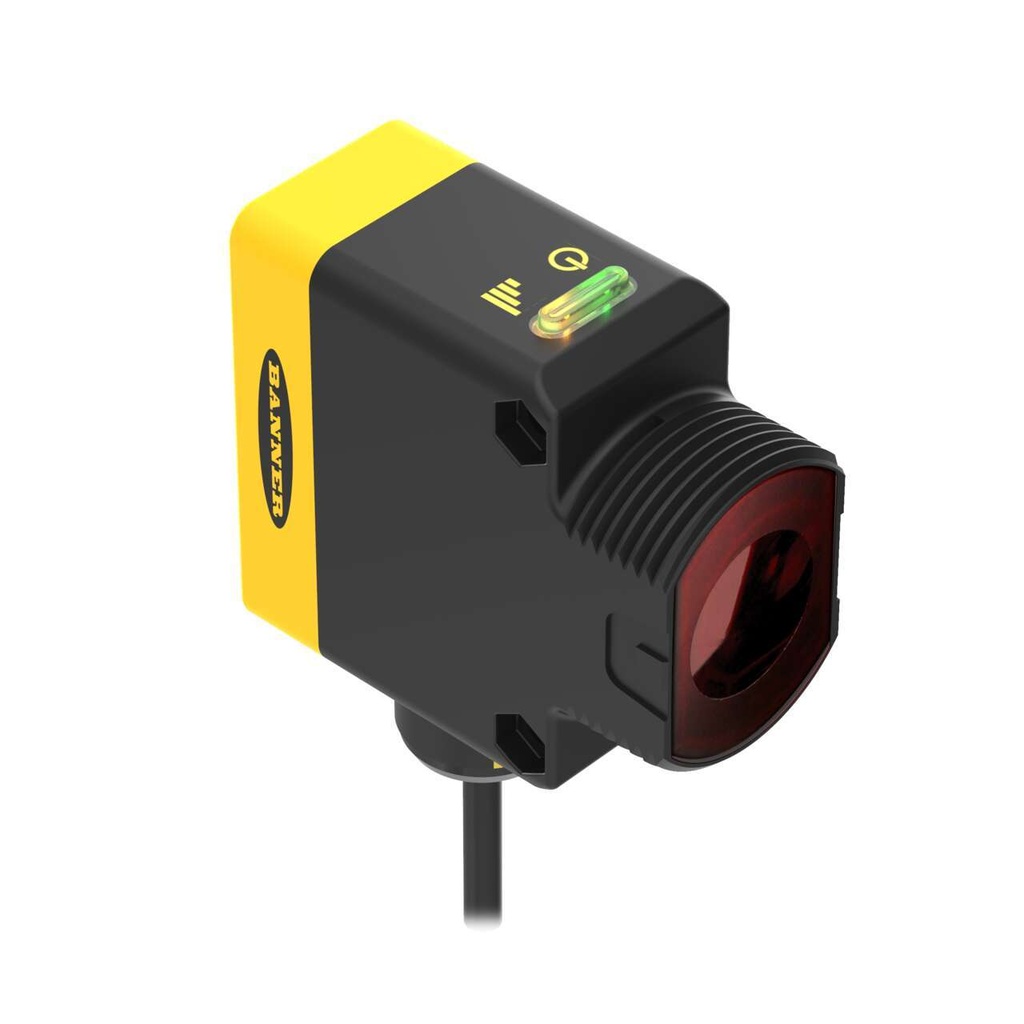

QS30EXQ is the emitter of a Banner QS30 series high-power opposed-mode pair. With a QS30ARX or QS30RRX receiver it works over 213 m with an excess gain of 2, enough to see through heavy dust, fog and lens contamination.

• Sensing range: 213 m with a QS30ARX or QS30RRX receiver (excess gain 2), infrared 875 nm
• Output: none (emitter); LED inhibit on the white wire
• Supply: 10-30 V DC, < 70 mA
• Housing: ABS, COP lens, epoxy-encapsulated electronics, 30 mm threaded nose or side mounting
• Environment: IP69K, -20...+60 °C
• Connection: integral M12 5-pin male connector

Modulation frequency A or B is chosen with the grey wire and must match the receiver, which keeps neighbouring pairs from interfering. Pulling the white wire low switches the emitter off, so the receiver can be checked. Works with a QS30ARX (light operate) or QS30RRX (dark operate) receiver, ordered separately.

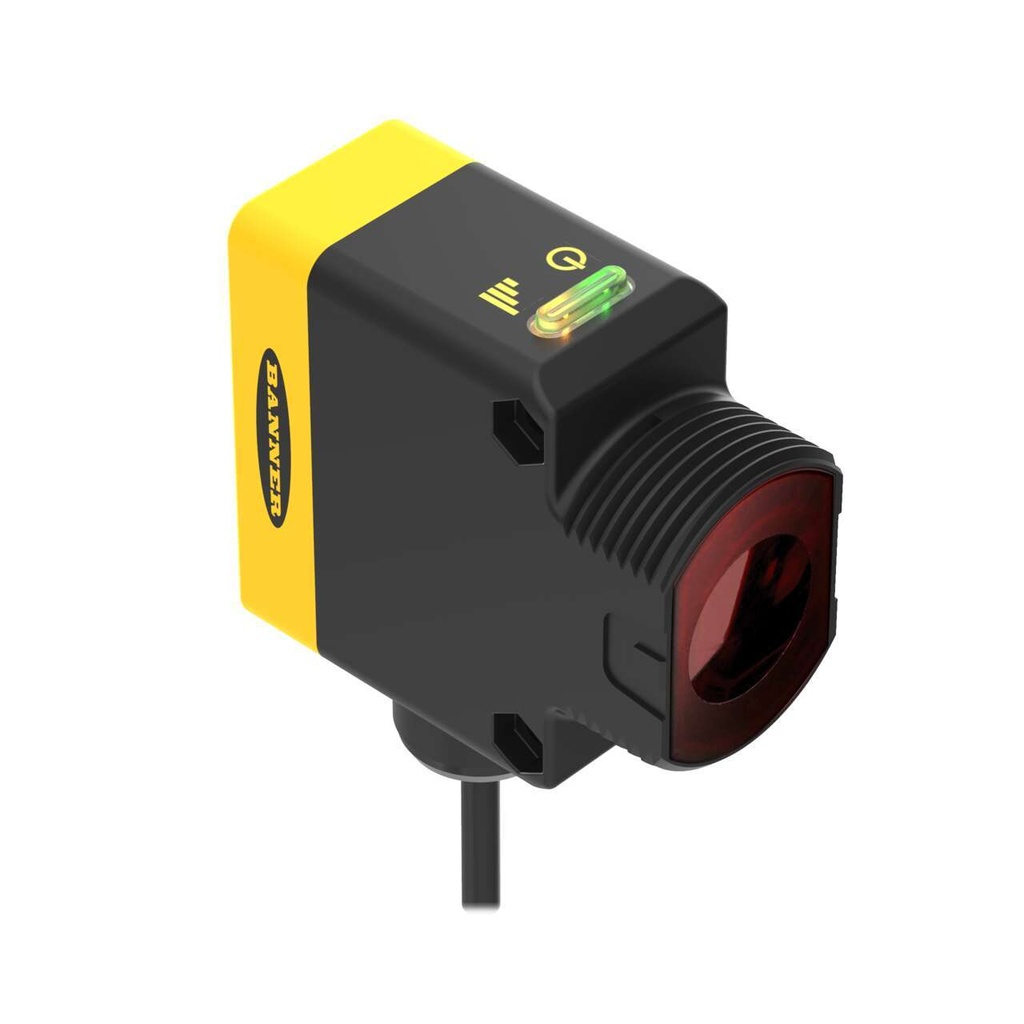

QS30ARXQ is the receiver of a Banner QS30 series high-power opposed-mode pair. With a QS30EX emitter it works over 213 m with an excess gain of 2, enough to see through heavy dust, fog and lens contamination.

• Sensing range: 213 m with a QS30EX emitter (excess gain 2)
• Output: bipolar, one PNP and one NPN, Light Operate, 100 mA
• Response: 30 ms ON/OFF; repeatability 5 ms
• Supply: 10-30 V DC, < 22 mA
• Housing: ABS, COP lens, epoxy-encapsulated electronics, 30 mm threaded nose or side mounting
• Environment: IP69K, -20...+70 °C
• Connection: integral M12 5-pin male connector

The output is on while the beam is unbroken. Modulation frequency A or B is chosen with the grey wire and must match the emitter, which keeps neighbouring pairs from interfering. A 4-LED bar shows signal strength relative to the switch point. Works with a QS30EX or QS30EXQ emitter, ordered separately.

QS18VP6FF100Q8 is a Banner QS18 series fixed-field photo sensor with a visible red 630 nm beam and a fixed 100 mm cutoff. It detects objects up to the cutoff and ignores anything behind it, so a background close behind the object does not trigger the output.

• Sensing range: fixed cutoff at 100 mm
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: integral M12 4-pin male connector

The cutoff is fixed, so there is nothing to adjust on site. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q12AB6FF50 is a Banner Q12 series fixed-field photo sensor with a visible red 640 nm beam and a 50 mm cutoff. Objects closer than the cutoff are detected regardless of colour; the background beyond it is ignored.

• Sensing range: 50 mm cutoff, focus at 16 mm
• Output: bipolar, one PNP and one NPN, Light Operate, 50 mA
• Response: 850 µs ON/OFF; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: polyamide, polycarbonate lens, 8 mm thick
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable, 4 wires

A green LED indicator shows power; the amber one shows the received signal and flashes when the signal is marginal.

QS18VP6LLPQ8 is a Banner QS18 series polarized retroreflective photo sensor with a visible red Class 1 laser (650 nm) and a 0.1-10 m range. The narrow beam, about 4 mm at 10 m, detects small objects and gives precise position control; the polarizing filter suppresses reflections from shiny objects.

• Sensing range: 0.1-10 m; beam spot about 4 mm at 10 m
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 700 µs ON/OFF; repeatability 130 µs
• Supply: 10-30 V DC, < 15 mA
• Housing: ABS, acrylic lens, 18 mm threaded nose or side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 4-pin male connector

A BRT-51X51BM reflector is included. With a beam this narrow, alignment is critical: one degree of misalignment moves the beam 100 mm off centre at 6 m. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Class 1 laser product to IEC 60825-1:2014 and 21 CFR 1040.10.

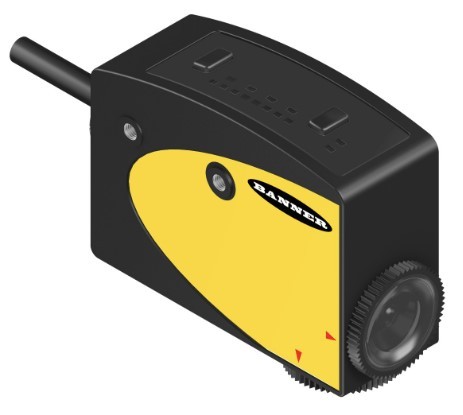

R58ECRGB1 is a Banner R58E Expert registration mark sensor with a red, green and blue LED light source. During TEACH it picks the colour that gives the most contrast between the mark and its background and detects 16 levels of grey scale; the switching frequency is 10 kHz.

• Sensing: fixed focus 10 mm ±3 mm, image 1.2 x 3.8 mm, parallel to sensor length
• Light source: red 636 nm, green 525 nm, blue 472 nm, selected automatically during TEACH
• Outputs: bipolar, 1x PNP and 1x NPN, 100 mA each; response 50 µs, repeatability 15 µs
• Supply: 10-30VDC, max 75 mA at 10 VDC
• Housing: zinc alloy die-cast, acrylic lens
• Environment: IP67, -10...+55 °C
• Connection: 2 m PVC cable, 5 conductors

Static and Dynamic TEACH by push button or the gray remote wire; in Dynamic TEACH the shorter event becomes Output ON, so Light/Dark Operate is set automatically. Mount at about 15° to shiny surfaces. A 30 ms OFF-delay or ON-delay can be enabled.

Vibration and shock per IEC 60068-2-6 and IEC 60068-2-27.

M12PDQ8 is a Banner M12 series divergent diffuse photo sensor in an M12 metal barrel, with a visible red 660 nm beam and a 400 mm range on a white test card.

• Sensing range: 400 mm, 90 % white test card
• Output: complementary PNP, one NO and one NC, 100 mA total
• Response: 500 µs ON/OFF; repeatability 95 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: M12x1 nickel-plated brass barrel, PMMA lens
• Environment: IP67, IP68, NEMA 6, -20...+60 °C
• Connection: integral M12 4-pin male connector

Sensitivity is set with a single-turn potentiometer. A green LED indicator shows power and flashes on output overload; two amber LED indicators on opposite sides show light sensed and flash at marginal excess gain.

M12PLVQ8 is a Banner M12 series retroreflective photo sensor in an M12 metal barrel, with a visible red 660 nm beam and a 2.5 m range with a BRT-84 reflector.

• Sensing range: 2.5 m with BRT-84 reflector
• Output: complementary PNP, one NO and one NC, 100 mA total
• Response: 500 µs ON/OFF; repeatability 95 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: M12x1 nickel-plated brass barrel, PMMA lens
• Environment: IP67, IP68, NEMA 6, -20...+60 °C
• Connection: integral M12 4-pin male connector

Sensitivity is set with a single-turn potentiometer. A green LED indicator shows power and flashes on output overload; two amber LED indicators on opposite sides show light sensed and flash at marginal excess gain.

Q20PDLQ7 is a Banner Q20 series long-range diffuse photo sensor with a visible red 624 nm beam. It detects an object by the light the object reflects back to the sensor, so no reflector or separate receiver is needed.

• Sensing range: 800 mm on a 90 % white test card
• Output: PNP, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: integral M8 4-pin male connector

A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20PD is a Banner Q20 series short-range diffuse photo sensor with a visible red 624 nm beam. It detects an object by the light the object reflects back to the sensor, so no reflector or separate receiver is needed.

• Sensing range: 250 mm on a 90 % white test card
• Output: PNP, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20PLP is a Banner Q20 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 4 m range with a BRT-84 reflector. The polarizing filter lets it detect shiny objects that would reflect an unpolarized beam back to the sensor.

• Sensing range: 4 m with BRT-84 reflector
• Output: PNP, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20PLPQ7 is a Banner Q20 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 4 m range with a BRT-84 reflector. The polarizing filter lets it detect shiny objects that would reflect an unpolarized beam back to the sensor.

• Sensing range: 4 m with BRT-84 reflector
• Output: PNP, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: integral M8 4-pin male connector

A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20PR is the receiver of a Banner Q20 series opposed-mode photo sensor pair. It switches when an object breaks the beam from a separate Q20 emitter up to 12 m away.

• Sensing range: 12 m with a Q20E emitter, effective beam 10 mm
• Output: PNP, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 1 ms ON, 600 µs OFF; repeatability 140 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

Works with a Q20E or Q20EQ7 emitter, ordered separately. A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20PRQ7 is the receiver of a Banner Q20 series opposed-mode photo sensor pair. It switches when an object breaks the beam from a separate Q20 emitter up to 12 m away.

• Sensing range: 12 m with a Q20E emitter, effective beam 10 mm
• Output: PNP, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 1 ms ON, 600 µs OFF; repeatability 140 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: integral M8 4-pin male connector

Works with a Q20E or Q20EQ7 emitter, ordered separately. A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20NR is the receiver of a Banner Q20 series opposed-mode photo sensor pair. It switches when an object breaks the beam from a separate Q20 emitter up to 12 m away.

• Sensing range: 12 m with a Q20E emitter, effective beam 10 mm
• Output: NPN, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 1 ms ON, 600 µs OFF; repeatability 140 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

Works with a Q20E or Q20EQ7 emitter, ordered separately. A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20E is the emitter of a Banner Q20 series opposed-mode photo sensor pair. It sends a visible red 624 nm beam to a separate Q20 receiver up to 12 m away; an object is detected when it breaks the beam.

• Sensing range: 12 m with a Q20 receiver, effective beam 10 mm
• Output: none (emitter)
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

The emitter has no output and works only with a Q20PR or Q20NR receiver, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20EQ7 is the emitter of a Banner Q20 series opposed-mode photo sensor pair. It sends a visible red 624 nm beam to a separate Q20 receiver up to 12 m away; an object is detected when it breaks the beam.

• Sensing range: 12 m with a Q20 receiver, effective beam 10 mm
• Output: none (emitter)
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: integral M8 4-pin male connector

The emitter has no output and works only with a Q20PR or Q20NR receiver, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

S12-2NAEL-2M is the long-range emitter of a Banner S12-2 series opposed-mode photo sensor pair, in a 12 mm plastic barrel. Its infrared 880 nm beam reaches an S12-2 receiver up to 20 m away; the emitter itself has no output.

• Sensing range: 20 m with an S12-2 receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: M12 threaded barrel, thermoplastic, polycarbonate lens, encapsulated
• Environment: IP67, NEMA 4X, -25...+50 °C
• Connection: 2 m PVC cable, 2 wires

Needs an S12-2 receiver, ordered separately. Banner lists this model as obsolete; it is sold while stock lasts. UL and CE approved.

S12-2RPRL-2M is the receiver of a Banner S12-2 series opposed-mode pair in a 12 mm threaded barrel. It switches when an object breaks the infrared 880 nm beam from a separate S12-2 emitter up to 20 m away.

• Sensing range: 20 m with an S12-2 emitter
• Output: one PNP, Dark Operate (on when the beam is blocked), 100 mA
• Response: 11 ms ON, 7 ms OFF; repeatability 1.5 ms
• Supply: 10-30 V DC, < 15 mA
• Housing: polycarbonate, epoxy-encapsulated electronics, M12x1 thread, nuts included
• Environment: IP67, -25...+50 °C
• Connection: 2 m PVC cable, 3 wires

Works with an S12-2NAEL or S12-2NAEJ emitter, ordered separately; the beam inhibit version lets the receiver be checked before the machine starts. A green LED shows power and flashes on output short circuit; a red LED shows light sensed and flashes at marginal excess gain.

S18-2VPDL-2M is a Banner S18-2 series diffuse photo sensor in an 18 mm plastic barrel. It detects objects by the visible red light they reflect back, up to 750 mm from the sensor.

• Sensing range: 750 mm on a 90 % white test card
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 16 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: 2 m PVC cable

The range applies to a white card; darker objects are detected at a shorter distance. Sensitivity is set with a single-turn potentiometer. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

BT23S is a Banner bifurcated glass fibre for diffuse mode: one sensing end both emits and receives light, while the two control ends go to the emitter and receiver of the sensor.

• Type: diffuse, bifurcated
• Length: 914 mm, bundle Ø3.2 mm
• Tip: 5/16-24 UNF threaded
• Sheath: stainless steel monocoil
• Bend radius: at least 25 mm
• Temperature: -140...+249 °C

The fibre ends are ground and polished, so the assembly cannot be shortened or spliced. Glass fibres carry infrared as well as visible light; Banner recommends them for IR sensors.

S18-2VPDS-Q8 is a Banner S18-2 series diffuse photo sensor in an 18 mm plastic barrel. It detects objects by the visible red light they reflect back, up to 300 mm from the sensor.

• Sensing range: 300 mm on a 90 % white test card
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 16 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male connector

The range applies to a white card; darker objects are detected at a shorter distance. Sensitivity is set with a single-turn potentiometer. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

BRT-92X92CB is a Banner square acrylic retroreflector on a black mounting base, for photo sensors working in retroreflective mode. It is fixed with two screws, and optional brackets are available.

• Reflector size: 92 x 92 mm
• Overall size: 100 x 100 x 9 mm
• Reflectivity factor: 3.0
• Mounting: 2 holes, Ø3.5 mm
• Temperature: max +50 °C

M18-4VPDL-Q8 is a Banner M18-4 series diffuse photo sensor in an M18 stainless steel barrel, with a visible red beam and a 750 mm range on a white test card. Sensitivity is set with a 250° potentiometer.

• Sensing range: 750 mm, 90 % white test card
• Output: complementary PNP, one NO and one NC, 100 mA total (50 mA above +55 °C)
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC up to +55 °C, 10-24 V DC above; 16 mA
• Housing: M18 316L stainless steel barrel, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C
• Connection: integral M12 4-pin male connector

A green LED indicator shows power and flashes at a marginal signal; amber LED indicators show the output is conducting.

Vibration and shock per MIL-STD-202F, methods 201A and 213B. ECOLAB chemical compatibility certified.

M18-4VPLPC-Q8 is a Banner M18-4 series polarized retroreflective photo sensor in an M18 stainless steel barrel, with a visible red beam and a 6 m range with a BRT-84 reflector. Sensitivity is set with a 250° potentiometer.

• Sensing range: 6 m with BRT-84 reflector
• Output: complementary PNP, one NO and one NC, 100 mA total (50 mA above +55 °C)
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC up to +55 °C, 10-24 V DC above; 16 mA
• Housing: M18 316L stainless steel barrel, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C
• Connection: integral M12 4-pin male connector

A green LED indicator shows power and flashes at a marginal signal; amber LED indicators show the output is conducting.

Vibration and shock per MIL-STD-202F, methods 201A and 213B. ECOLAB chemical compatibility certified.

S18-2VPLPC-Q8 is a Banner S18-2 series polarized retroreflective photo sensor in an 18 mm plastic barrel, with a 6 m range to a BRT-84 reflector. The polarizing filter rejects light returned by shiny objects, so they break the beam instead of acting as a reflector.

• Sensing range: 6 m with a BRT-84 reflector
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 16 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male connector

Needs a reflector, ordered separately. Sensitivity is set with a single-turn potentiometer. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

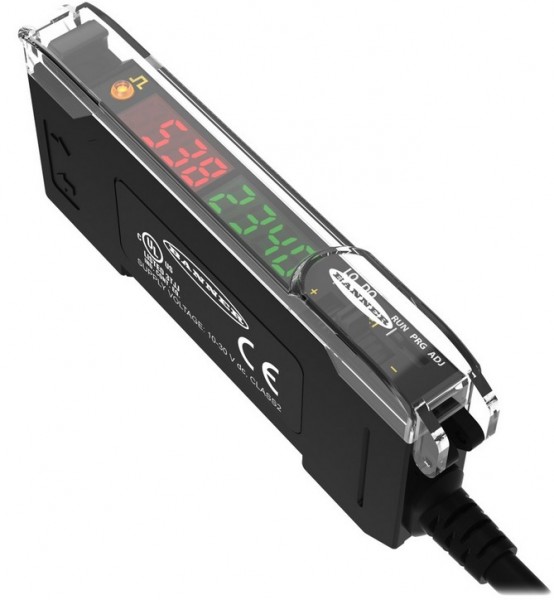

DF-G1-PS-Q5 is a Banner DF-G1 Expert amplifier for plastic and glass fibre optic assemblies, with a single PNP output. Two 4-digit displays show the signal level in red and the threshold in green at the same time, so the margin is visible without a menu.

• Output: 1x PNP, 100 mA; response 200 µs, 500 µs, 2 ms or 5 ms by mode
• Light source: visible red, 660 nm
• Supply: 10-30 V DC, < 40 mA at 24 V (< 30 mA in ECO display mode)
• Housing: 10 mm wide, ABS/polycarbonate, for 35 mm DIN rail
• Environment: IP50, -10...+55 °C
• Connection: 150 mm PVC cable with M12 male connector, 4-pin

Teach methods are two-point, dynamic, and Light, Dark, Window or Calibration SET; Light Operate or Dark Operate is chosen with a switch on the front, and ON/OFF delays and one-shot timers are set from the menu or the remote teach wire. A 4-pin M12 cordset is needed.

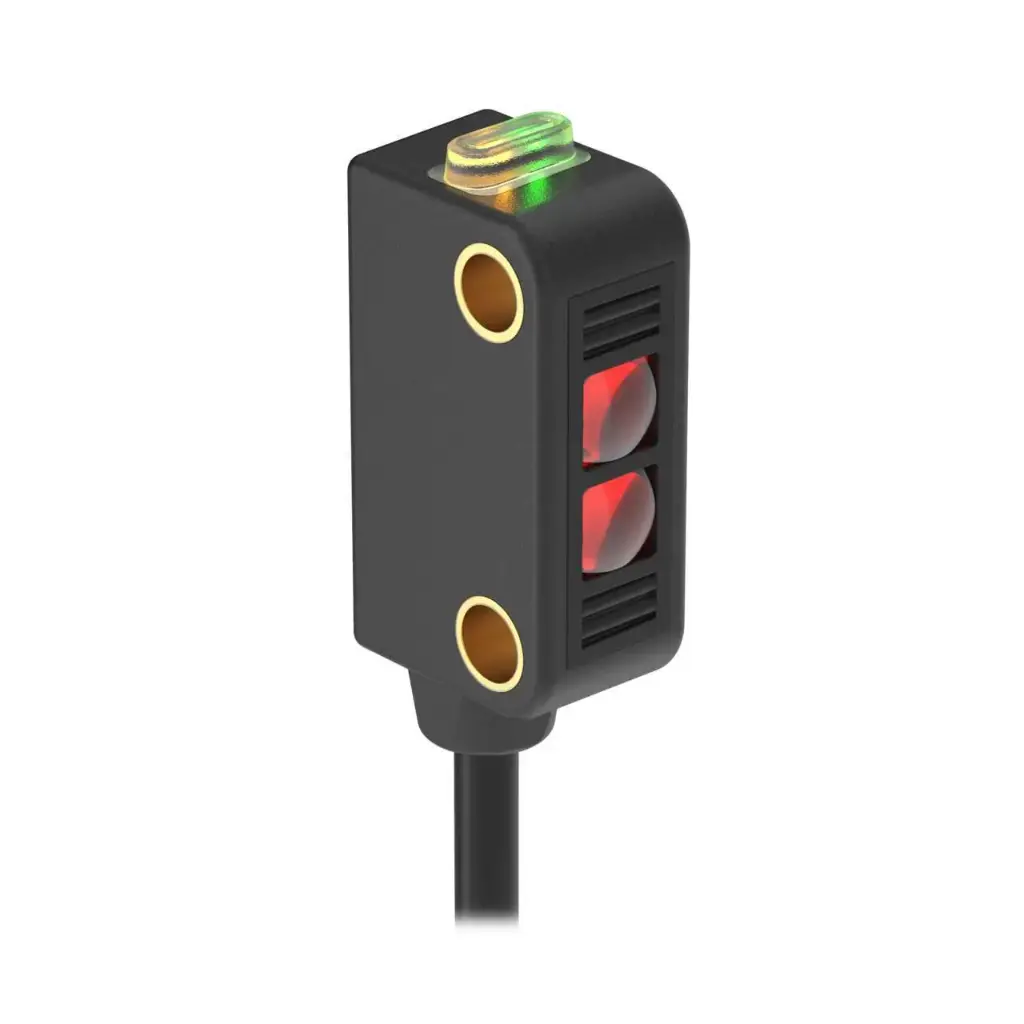

DQ12AB6FF50Q5 is a Banner DQ12 series fixed-field photo sensor with a visible red 645 nm beam and a 50 mm cutoff. Objects closer than the cutoff are detected regardless of colour; the background beyond it is ignored.

• Sensing range: 50 mm cutoff, focus at 16 mm
• Output: bipolar, one PNP and one NPN, Light Operate, 50 mA
• Response: 850 µs ON/OFF; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: polyamide, polycarbonate lens, 8 mm thick
• Environment: IP67, -20...+55 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

A green LED indicator shows power; the amber one shows the received signal and flashes when the signal is marginal.

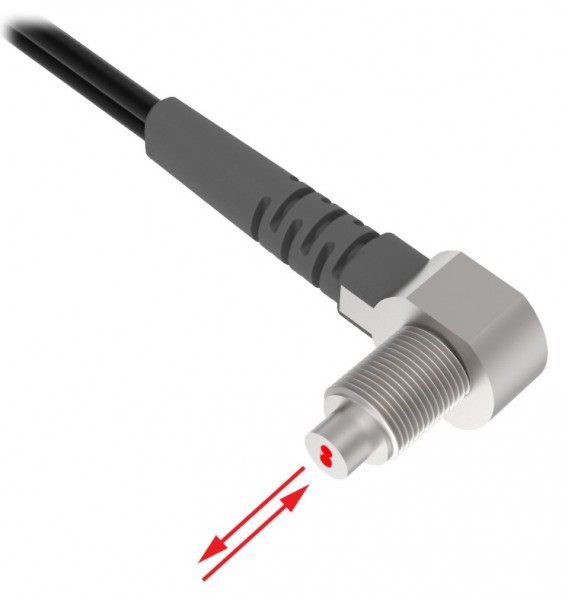

PBAT43UTA-VL is a Banner Vantage Line bifurcated plastic fibre for diffuse mode with a right-angle head and an M6 x 0.75 stainless steel thread. Two Ø1 mm cores run in parallel to the sensing end.

• Fibre: 2x Ø1 mm cores, polyethylene jacket Ø2.2 mm, length 1 m, unterminated
• Head: right-angle, Ø11.5 mm, PVC flex relief
• Thread: M6 x 0.75 stainless steel, 2 jam nuts and 2 lock washers included
• Bend radius: at least 25 mm
• Temperature: -55...+70 °C

PBT415U is a Banner bifurcated plastic fibre for diffuse mode with an M6 threaded sensing tip. One sensing end both emits and receives light; the two control ends go to the emitter and receiver of the sensor.

• Range: DF-G1 180 mm, D10D 250 mm, D10B 85 mm, D10A 72 mm
• Fibre: Ø1 mm, length 5 m, unterminated
• Tip: M6 threaded
• Material: acrylic (PMMA) core, black polyethylene jacket, nickel-plated brass tip
• Bend radius: at least 25 mm
• Temperature: -30...+70 °C

The control ends are unterminated and are cut to length with the PFC-4 cutter supplied with the fibre. The acrylic core is damaged by acids, strong alkalis and solvents; Banner recommends plastic fibres for visible-light sensors only.

PBT26U is a Banner bifurcated plastic fibre for diffuse mode with an M3 threaded sensing tip. One sensing end both emits and receives light; the two control ends go to the emitter and receiver of the sensor.

• Range: DF-G1 80 mm, D10D 150 mm, D10B 38 mm, D10A 25 mm
• Fibre: Ø0.5 mm, length 2 m, unterminated
• Tip: M3 threaded
• Material: acrylic (PMMA) core, black polyethylene jacket, nickel-plated brass tip
• Bend radius: at least 12 mm
• Temperature: -30...+70 °C

The control ends are unterminated and are cut to length with the PFC-4 cutter supplied with the fibre. The acrylic core is damaged by acids, strong alkalis and solvents; Banner recommends plastic fibres for visible-light sensors only.

S18-2VNDL-Q8 is a Banner S18-2 series diffuse photo sensor in an 18 mm plastic barrel. It detects objects by the visible red light they reflect back, up to 750 mm from the sensor.

• Sensing range: 750 mm on a 90 % white test card
• Output: complementary NPN, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 16 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male connector

The range applies to a white card; darker objects are detected at a shorter distance. Sensitivity is set with a single-turn potentiometer. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

S18-2VNRL-Q8 is the receiver of a Banner S18-2 series opposed-mode photo sensor pair in an 18 mm plastic barrel. It switches when an object breaks the beam from a separate S18-2 emitter up to 25 m away.

• Sensing range: 25 m with an S18-2 emitter
• Output: complementary NPN, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 1 ms OFF; repeatability 170 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 8 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male connector

Works with an S18-2 emitter such as S18-2NAEL, ordered separately. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on. This model has no sensitivity adjustment.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

QS18VP6AF250Q8 is a Banner QS18 series photo sensor with adjustable background suppression and a visible red 640 nm LED beam. Objects up to the set cutoff are detected regardless of colour, while anything beyond it is ignored.

• Sensing range: cutoff adjustable 30-250 mm
• Output: complementary PNP, Light Operate and Dark Operate, 50 mA per output
• Response: 1.7 ms ON, 1.1 ms OFF; repeatability 130 µs
• Supply: 10-30 V DC, < 475 mW
• Housing: ABS, 18 mm threaded nose or side mounting
• Environment: IP67, -40...+60 °C
• Connection: integral M12 4-pin male connector

The cutoff distance is set with a single-turn potentiometer. A crosstalk algorithm lets two sensors work close to each other. A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal condition.

QS18EP6XLPCQ8 is a Banner QS18 Expert series polarized coaxial retroreflective photo sensor for clear objects, with a visible red 625 nm beam and a 3 m range. Transparent bottles and film weaken the beam only slightly, and the sensor is taught to switch on that small change.

• Sensing range: 3 m
• Output: PNP, Light or Dark Operate, discrete
• Response: 400 µs; repeatability 100 µs
• Supply: 10-30 V DC
• Housing: ABS, PMMA lens, M18 mount
• Environment: IP67, NEMA 4X, -40...+70 °C
• Connection: integral M12 4-pin male connector

Set up with the teach button or the remote teach input. Output timing (hold/delay) is available.

S18-2VPRS-Q8 is the receiver of a Banner S18-2 series opposed-mode photo sensor pair in an 18 mm plastic barrel. It switches when an object breaks the beam from a separate S18-2 emitter up to 25 m away.

• Sensing range: 25 m with an S18-2 emitter
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 1 ms OFF; repeatability 170 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 8 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male connector

Works with an S18-2 emitter such as S18-2NAEL, ordered separately. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

M18-3VPLP-Q8 is a Banner M18-3 series polarized retroreflective photo sensor in an M18 nickel-plated brass barrel, with a visible red beam and a 6 m range with a BRT-84 reflector. The polarizing filter lets it detect shiny objects without false triggering.

• Sensing range: 6 m with BRT-84 reflector, no sensitivity adjustment
• Output: complementary PNP, one NO and one NC, 100 mA total (50 mA above +55 °C)
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC up to +55 °C, 10-24 V DC above; 16 mA
• Housing: M18 nickel-plated brass barrel, PMMA window
• Environment: IP67, IP69K, -40...+70 °C
• Connection: integral M12 4-pin male connector

A green LED indicator shows power and flashes at a marginal signal; amber LED indicators show the output is conducting.

Vibration and shock per MIL-STD-202F, methods 201A and 213B.

APC-18 is a Banner stainless steel collar that threads onto an 18 mm barrel sensor and blows clean air across the sensor face. The positive air pressure keeps water, dust and airborne dirt off the lens and also cools sensors exposed to ambient heat.

• Fits: 18 mm threaded barrel sensors (M18 x 1)
• Material: stainless steel
• Air connection: 1/8 x 10-32 stainless steel barb fitting for 1/8 in ID hose
• Air supply: 10 l/min at approx. 0.7 psi
• Size: Ø 34 mm, adds approx. 16 mm to the sensor length

The collar has both internal and external M18 thread, so the bracket can hold either the sensor or the collar. Use clean, dry instrument air and teach the sensor while the air is flowing. Not for ultrasonic sensors: the air flow changes the speed of sound and shifts the measurement.

SMBQ4XFAM12 is a Banner bracket kit that clamps onto a 12 mm rod and carries a Q4X, QS18 or QS30 sensor on its flat plate. The rod clamp turns the sensor around the rod axis before it is locked.

• Fits: Banner Q4X, QS18 and QS30 sensors
• Rod: Ø 12 mm (1/2 in) rod bracket systems
• Material: zinc die-cast (Zamak)
• Size: plate 43.5 x 41.3 mm, sensor fixed with M3 screws
• Included: 1 bracket with hardware pack; the socket head cap screw for the rod clamp is not included

SMBQ20LV is a Banner right-angle stainless steel bracket for mounting a Q20 sensor vertically from the back. The sensor can be tipped ±10° to align the beam after the bracket is fixed.

• Fits: Banner Q20 sensors
• Type: right-angle, vertical back mount, ±10° tilt
• Material: stainless steel
• Included: 1 bracket, no mounting hardware

BRT-60X40C is a Banner rectangular acrylic retroreflector for photo sensors working in retroreflective mode.

• Size: 40 x 60 mm
• Reflectivity factor: 1.4
• Temperature: -20...+60 °C
