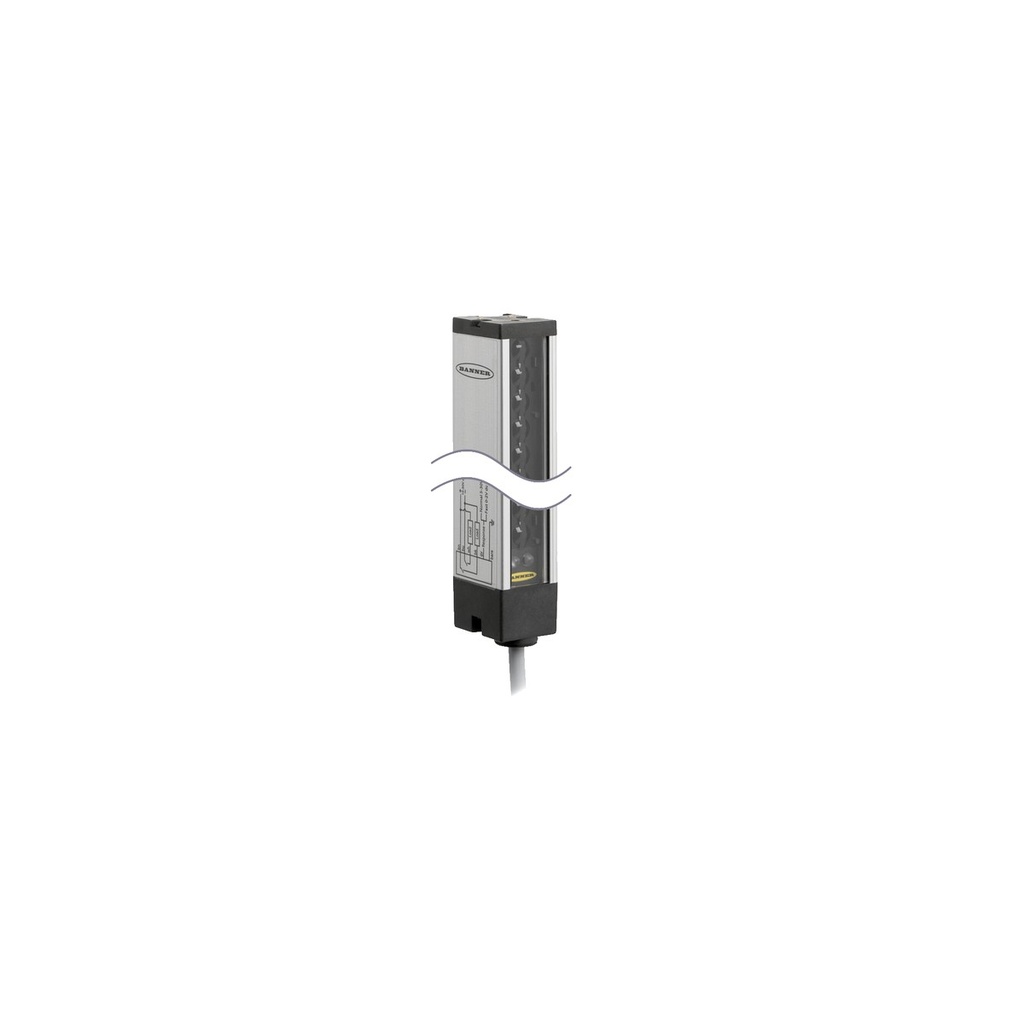

LX3EQ is the emitter of the Banner LX series light curtain, with a 67 mm light screen for part sensing. Infrared LEDs are spaced at 9.5 mm and fire in sequence, so together with an LX receiver of the same length they form a crosshatched beam pattern that also detects thin and narrow objects. No synchronisation wire is needed between emitter and receiver.

• Distance between emitter and receiver: 0.3...2 m (Normal), 0.15...0.6 m (Reduced)
• Output: none, the unit is an emitter
• Supply: 10...30 V DC, less than 1 W
• Housing: aluminium profile, die-cast zinc endcaps, acrylic lens; overall length 113.4 mm
• Environment: IP65, -20...+70 °C
• Connection: 150 mm cable with an M12 5-pin male connector

The light curtain is used for part ejection verification and package detection on conveyors, where the object may cross the beam field at any point. The range is selected with the grey wire: 5...30 V DC gives Normal, 0...2 V DC gives Reduced range, and the emitter LED indicators show the selection. The green LED is on when power is applied and the emitter is good; the red LED is on in reduced range. The emitter must be paired with an LX receiver of the same length and range, and the device is not intended for personnel protection.

Meets CE and UKCA requirements; UL listing E71083, Class 2 power, UL Environmental Rating Type 1.

LX3RQ is the receiver of the Banner LX series light curtain, with a 67 mm light screen for part sensing. Photodiodes are spaced at 9.5 mm and recognise each emitter pulse separately, so the crosshatched beam pattern also detects thin objects such as a sheet of paper. In the standard range the smallest detectable object is 9.5 mm in diameter.

• Distance between emitter and receiver: 0.3...2 m (Normal), 0.15...0.6 m (Reduced)
• Output: bipolar, one PNP and one NPN output at the same time, 125 mA each, conducting while the beam is blocked
• Response time: 0.8 ms on, 6 ms off with a 5 ms pulse stretcher
• Supply: 10...30 V DC, less than 1 W
• Housing: aluminium profile, die-cast zinc endcaps, acrylic lens; overall length 113.4 mm
• Environment: IP65, -20...+70 °C
• Connection: 150 mm cable with an M12 5-pin male connector

The receiver is used for part ejection verification and package detection on conveyors, where the object may cross the beam field at any point. The range is selected with the grey wire: 5...30 V DC gives Normal, 0...2 V DC gives Reduced range. The amber LED shows a conducting output, the bicolour LED shows green in Normal and red in Reduced range, and a flashing red light indicates a receiver hardware fault. Resolution is best in the middle 80 % of the beam field, the receiver must be paired with an LX emitter of the same length and range, and the device is not intended for personnel protection.

Meets CE and UKCA requirements; UL listing E71083, Class 2 power, UL Environmental Rating Type 1.

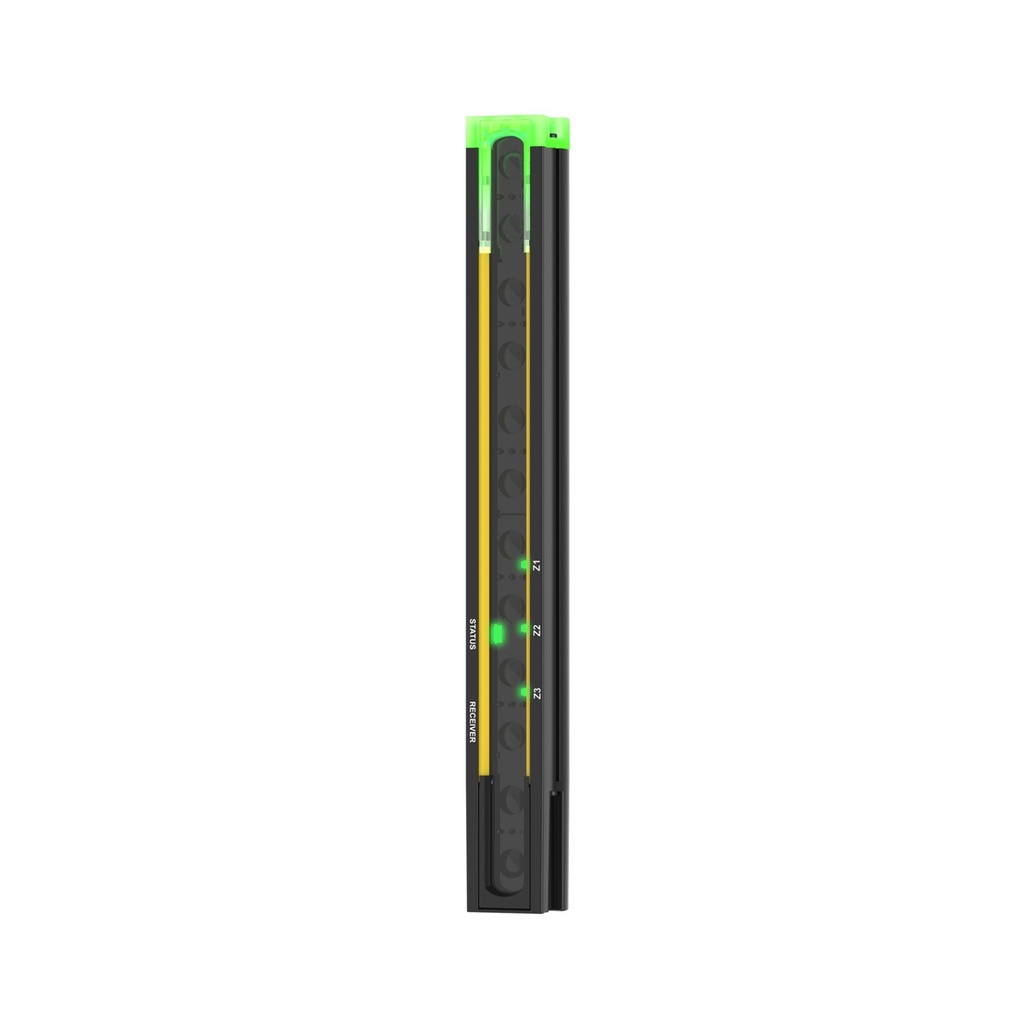

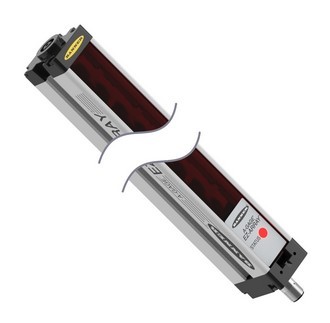

S4BR30-300-S is the receiver of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 30 mm resolution (hand detection). When any beam is interrupted, both OSSD safety outputs switch off; the lighted end cap shows clear, weak beam, blocked beam or fault from a distance.

• Defined area: 300 mm; resolution 30 mm; response time 7.5 ms
• Operating range: 0.1...12 m
• Outputs: two redundant PNP OSSD safety outputs, 24 V DC, max 0.5 A each; configurable pin for weak beam output or IO-Link (COM2)
• Supply: +24 V DC ±15 %, 96 mA typical without load
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; 5-pin or 8-pin RD cordset with M12 ordered separately

With the 8-pin RD cordset the receiver monitors the contactors itself (EDM) and needs no external safety module; with the 5-pin cordset it is wired to a safety relay, safety controller or safety PLC. Reduced resolution can be switched on to ignore one blocked beam, and up to four pairs can be cascaded.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).

S4BE30-300-S is the emitter of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 30 mm resolution (hand detection). It projects a row of synchronised, modulated infrared beams (860 nm) from end to end of the housing, so there is no dead zone at either end.

• Defined area: 300 mm; resolution 30 mm; system response time 7.5 ms
• Operating range: 0.1...12 m
• Indicators: bi-colour status indicator, two tri-colour scan code indicators
• Supply: +24 V DC ±15 %, 33 mA typical
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; RD cordset with M12 ordered separately

The emitter works only as a pair with an S4B receiver of the same length and resolution. The scan code (1 or 2) is set with switches in the RD cordset, so that two pairs mounted close to each other do not interfere.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).

S4BE14-300-S is the emitter of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 14 mm resolution (finger detection). It projects a row of synchronised, modulated infrared beams (860 nm) from end to end of the housing, so there is no dead zone at either end.

• Defined area: 300 mm; resolution 14 mm; system response time 11.5 ms
• Operating range: 0.1...12 m
• Indicators: bi-colour status indicator, two tri-colour scan code indicators
• Supply: +24 V DC ±15 %, 33 mA typical
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; RD cordset with M12 ordered separately

The emitter works only as a pair with an S4B receiver of the same length and resolution. The scan code (1 or 2) is set with switches in the RD cordset, so that two pairs mounted close to each other do not interfere.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 289 years, PFHd 3.05 × 10⁻⁹ (single pair).

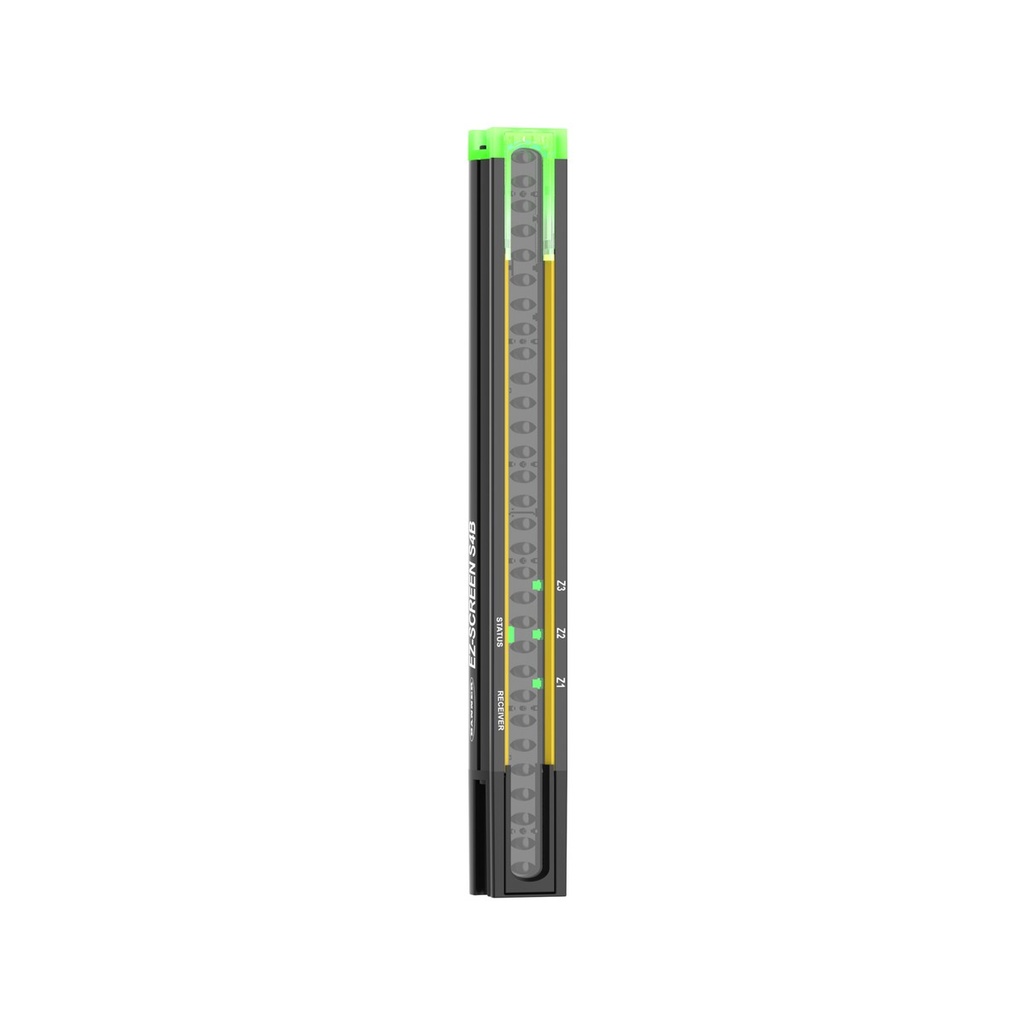

S4BR14-300-S is the receiver of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 14 mm resolution (finger detection). When any beam is interrupted, both OSSD safety outputs switch off; the lighted end cap shows clear, weak beam, blocked beam or fault from a distance.

• Defined area: 300 mm; resolution 14 mm; response time 11.5 ms
• Operating range: 0.1...12 m
• Outputs: two redundant PNP OSSD safety outputs, 24 V DC, max 0.5 A each; configurable pin for weak beam output or IO-Link (COM2)
• Supply: +24 V DC ±15 %, 96 mA typical without load
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; 5-pin or 8-pin RD cordset with M12 ordered separately

With the 8-pin RD cordset the receiver monitors the contactors itself (EDM) and needs no external safety module; with the 5-pin cordset it is wired to a safety relay, safety controller or safety PLC. Reduced resolution can be switched on to ignore one blocked beam, and up to four pairs can be cascaded.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 289 years, PFHd 3.05 × 10⁻⁹ (single pair).

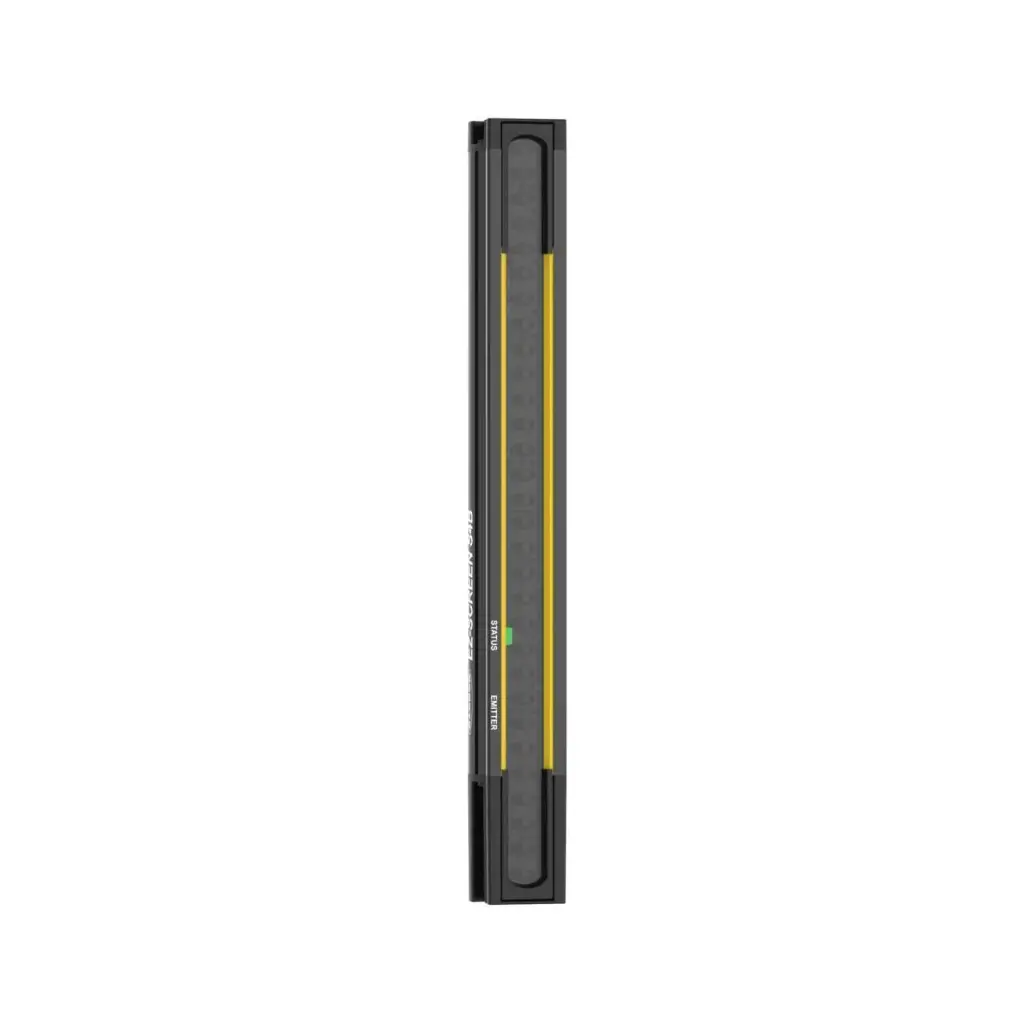

S4BE30-600-S is the emitter of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 600 mm defined area and 30 mm resolution (hand detection). It projects a row of synchronised, modulated infrared beams (860 nm) from end to end of the housing, so there is no dead zone at either end.

• Defined area: 600 mm; resolution 30 mm; system response time 10.0 ms
• Operating range: 0.1...12 m
• Indicators: bi-colour status indicator, two tri-colour scan code indicators
• Supply: +24 V DC ±15 %, 33 mA typical
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; RD cordset with M12 ordered separately

The emitter works only as a pair with an S4B receiver of the same length and resolution. The scan code (1 or 2) is set with switches in the RD cordset, so that two pairs mounted close to each other do not interfere.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).

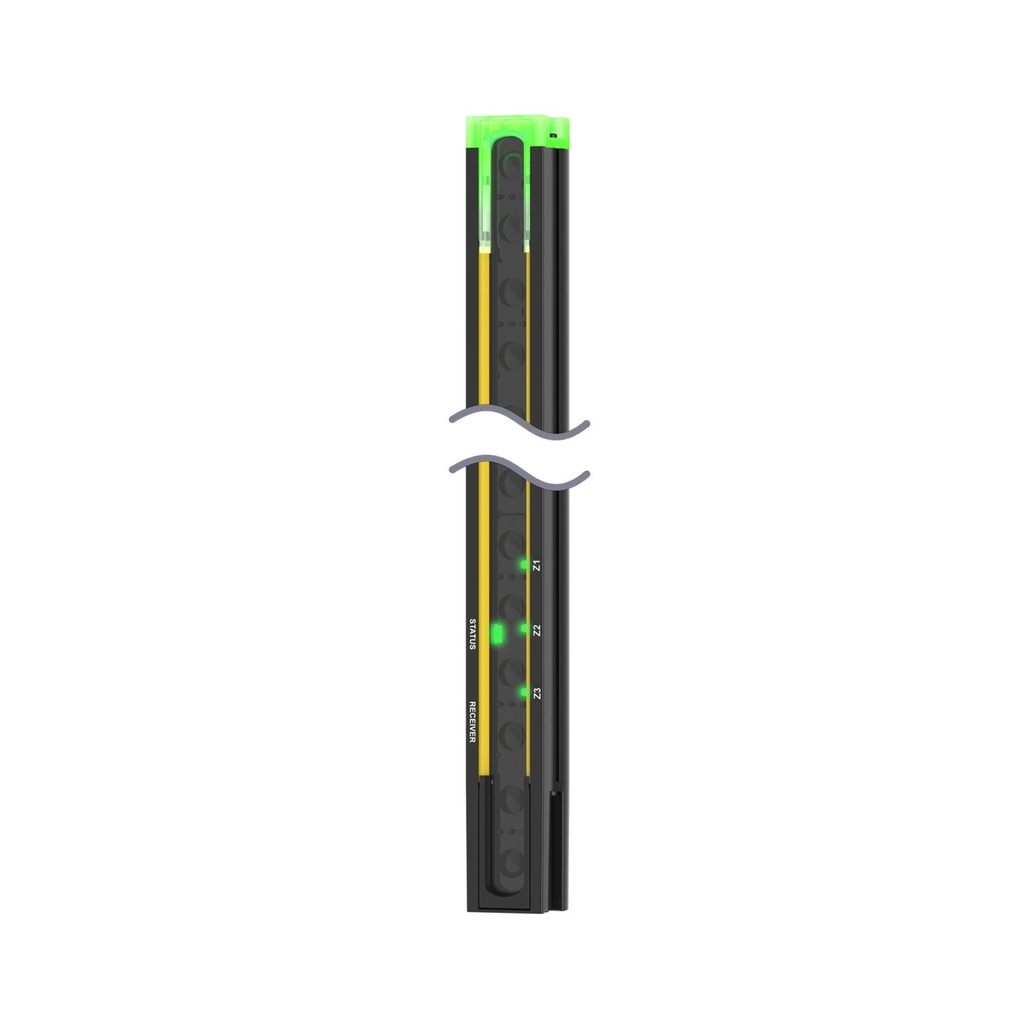

S4BR30-600-S is the receiver of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 600 mm defined area and 30 mm resolution (hand detection). When any beam is interrupted, both OSSD safety outputs switch off; the lighted end cap shows clear, weak beam, blocked beam or fault from a distance.

• Defined area: 600 mm; resolution 30 mm; response time 10.0 ms
• Operating range: 0.1...12 m
• Outputs: two redundant PNP OSSD safety outputs, 24 V DC, max 0.5 A each; configurable pin for weak beam output or IO-Link (COM2)
• Supply: +24 V DC ±15 %, 96 mA typical without load
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; 5-pin or 8-pin RD cordset with M12 ordered separately

With the 8-pin RD cordset the receiver monitors the contactors itself (EDM) and needs no external safety module; with the 5-pin cordset it is wired to a safety relay, safety controller or safety PLC. Reduced resolution can be switched on to ignore one blocked beam, and up to four pairs can be cascaded.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).
