BRT-60X40C is a Banner rectangular acrylic retroreflector for photo sensors working in retroreflective mode.

• Size: 40 x 60 mm
• Reflectivity factor: 1.4
• Temperature: -20...+60 °C

Q20KAF200Q7 is a Banner Q20 series photo sensor with adjustable background suppression and a visible red 640 nm beam. Objects up to the set cutoff are detected regardless of colour, while anything beyond it is ignored.

• Sensing range: adjustable cutoff 30...200 mm
• Output: PNP switching output with IO-Link, 50 mA; IO-Link 38400 bit/s, Smart Sensor Profile, 16-bit process data
• Response: 1.7 ms ON, 1.1 ms OFF; repeatability 130 µs
• Supply: 10-30 V DC, < 300 mW
• Housing: ABS front, copolyamide rear, PMMA lenses, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -20...+60 °C
• Connection: integral M8 4-pin male connector

The cutoff is set with a single-turn potentiometer. A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Two sensors can be mounted close together without crosstalk. All settings are also available through the IODD file.

Q20PAF200 is a Banner Q20 series photo sensor with adjustable background suppression and a visible red 640 nm beam. Objects up to the set cutoff are detected regardless of colour, while anything beyond it is ignored.

• Sensing range: adjustable cutoff 30...200 mm
• Output: complementary PNP, Light Operate and Dark Operate, 50 mA total
• Response: 1.7 ms ON, 1.1 ms OFF; repeatability 130 µs
• Supply: 10-30 V DC, < 300 mW
• Housing: ABS front, copolyamide rear, PMMA lenses, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

The cutoff is set with a single-turn potentiometer. A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Two sensors can be mounted close together without crosstalk.

Q4XTULAF300-Q8 is a Banner Q4X series Class 1 laser distance sensor in an M18 stainless steel housing that outputs the measured distance over 25...300 mm as a 0...10 V signal. The analog span is taught with two points or one point, and the 4-digit display shows either the output value or the distance in millimetres.

• Resolution: < 0.3 mm at 25...100 mm, < 1 mm at 100...300 mm; linearity follows the accuracy curve in the manual
• Measuring range: 25...300 mm
• Output: analog 0...10 V, min. load 2.5 kΩ; response time 0.5...2560 ms depending on measurement rate and averaging
• Supply: 12...30 V DC, < 675 mW; protected against reverse polarity and transient overvoltage
• Housing: M18x1 threaded barrel, 316L stainless steel, PMMA lens cover, polysulfone display window; nose mounting torque up to 20 N·m
• Environment: IP67, IP68, IP69K, -10...+50 °C
• Connection: integral M12 male connector, 5-pin; remote input for TEACH

The housing materials are ECOLAB certified for acidic and caustic cleaning and disinfecting agents and are compatible with cutting and lubricating fluids, so the sensor can stay in place on washdown lines in food processing and inside machining centres. Allow 10 minutes of warm-up for full performance.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

Q20NAF200 is a Banner Q20 series photo sensor with adjustable background suppression and a visible red 640 nm beam. Objects up to the set cutoff are detected regardless of colour, while anything beyond it is ignored.

• Sensing range: adjustable cutoff 30...200 mm
• Output: complementary NPN, Light Operate and Dark Operate, 50 mA total
• Response: 1.7 ms ON, 1.1 ms OFF; repeatability 130 µs
• Supply: 10-30 V DC, < 300 mW
• Housing: ABS front, copolyamide rear, PMMA lenses, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

The cutoff is set with a single-turn potentiometer. A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Two sensors can be mounted close together without crosstalk.

S18-2VNLPC-Q8 is a Banner S18-2 series polarized retroreflective photo sensor in an 18 mm plastic barrel, with a 6 m range to a BRT-84 reflector. The polarizing filter rejects light returned by shiny objects, so they break the beam instead of acting as a reflector.

• Sensing range: 6 m with a BRT-84 reflector
• Output: complementary NPN, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 16 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male connector

Needs a reflector, ordered separately. Sensitivity is set with a single-turn potentiometer. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

SMBQS12PD is a Banner right-angle bracket that holds the sensor by its threaded nose through a 13 mm hole.

• Sensor hole: Ø13.0 mm
• Mounting: Ø3.5 mm and 3.5 x 10.6 mm slot, 14.0 mm hole centre spacing
• Material: 16-gauge 300 series stainless steel

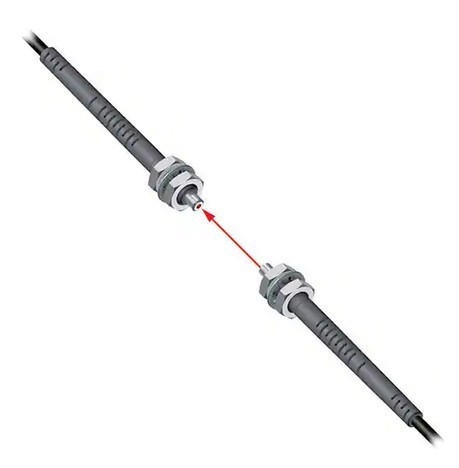

PIT46U is a Banner pair of individual plastic fibres for opposed mode, one for the emitter and one for the receiver. The tip has an M4 thread stepping down to M2.5.

• Range: DF-G1 820 mm, D10D 1200 mm, D10B 320 mm, D10A 300 mm
• Fibre: Ø1 mm, length 2 m, unterminated; supplied as a pair
• Tip: M2.5 and M4 threaded
• Material: acrylic (PMMA) core, black polyethylene jacket, nickel-plated brass tip
• Bend radius: at least 25 mm
• Temperature: -30...+70 °C

The control ends are unterminated and are cut to length with the PFC-4 cutter supplied with the fibre. The acrylic core is damaged by acids, strong alkalis and solvents; Banner recommends plastic fibres for visible-light sensors only.

BRT-51X51BM is a Banner square acrylic retroreflector with micro-prism geometry, for photo sensors working in retroreflective mode. Two slots let it be screwed on, and optional brackets are available.

• Reflector size: 51 x 51 mm
• Overall size: 51 x 61 x 6.2 mm
• Reflectivity factor: 1.5
• Mounting: 2 slots, Ø4.6 mm
• Temperature: -20...+50 °C

M18-4NAES-Q8 is the emitter of a Banner M18-4 series opposed-mode pair in an M18 stainless steel barrel, with a visible red beam and a 25 m range with an M18-4 receiver. Emitter power is set with a 250° potentiometer.

• Range: 25 m with an M18-4 receiver, effective beam 15.2 mm
• Supply: 10-30 V DC up to +55 °C, 10-24 V DC above; 17 mA
• Housing: M18 316L stainless steel barrel, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C
• Connection: integral M12 4-pin male connector

A green LED indicator shows power.

Vibration and shock per MIL-STD-202F, methods 201A and 213B. ECOLAB chemical compatibility certified.

M18-4VPRS-Q8 is the receiver of a Banner M18-4 series opposed-mode pair in an M18 stainless steel barrel, with a 25 m range with an M18-4 emitter. Sensitivity is set with a 250° potentiometer.

• Sensing range: 25 m with an M18-4 emitter, effective beam 15.2 mm
• Output: complementary PNP, one NO and one NC, 100 mA total (50 mA above +55 °C)
• Response: 1.5 ms ON, 1.0 ms OFF; repeatability 170 µs
• Supply: 10-30 V DC up to +55 °C, 10-24 V DC above; 8 mA
• Housing: M18 316L stainless steel barrel, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C
• Connection: integral M12 4-pin male connector

A green LED indicator shows power and flashes at a marginal signal; amber LED indicators show the output is conducting.

Vibration and shock per MIL-STD-202F, methods 201A and 213B. ECOLAB chemical compatibility certified.

QS18VP6DVSQ8 is a Banner QS18 series diffuse photo sensor with a small visible red 630 nm light spot. It detects an object by the light the object reflects back to the sensor, and the visible spot shows exactly where it is aimed.

• Sensing range: 250 mm
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: integral M12 4-pin male connector

A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q76E-VP-ZLVC-Q8 is a Banner Q76 series wide-beam retroreflective photo sensor with a visible red 620 nm light band and a 0.4-4 m range. The wide band detects the leading edge of irregular objects and pallets that a single-spot beam could miss.

• Sensing range: 0.4-4 m with a 100 x 100 mm BRT-92X92CB reflector; 3 m with a 40 x 60 mm reflector
• Smallest object: 19 mm standard, 12 mm increased, 8 mm fine-adjusted sensitivity
• Output: complementary PNP, Light Operate and Dark Operate; response 2 ms, 250 Hz
• Supply: 10-30 V DC
• Housing: PC-PBT, PMMA lens cover
• Environment: IP67, IP69, -40...+60 °C, ECOLAB certified
• Connection: integral M12 4-pin male connector

Standard sensitivity switches when 28 % of the band is covered and suits opaque objects; increased sensitivity switches at 18 % for containers with openings, film and transparent objects. Sensitivity and Light/Dark Operate are set with the single teach button. The reflector must be at least 50 mm wide and 30 mm tall.

OR18.GP-PV1T.7BO is a Baumer M18 diffuse photo sensor with background suppression, detecting objects at 20...200 mm and ignoring anything beyond the set distance. The switching distance is taught with qTeach instead of a potentiometer, so the setting is repeatable and cannot drift from vibration. A small PinPoint LED light spot allows detection of small parts.

• Sensing range: 20...200 mm, adjustable 45...200 mm; red PinPoint LED 630 nm
• Output: PNP complementary (NO and NC at the same time), max. 100 mA; response time < 0.49 ms
• Supply: 10...30 V DC, max. 45 mA
• Housing: M18 x 1 threaded, 65 mm long, nickel-plated brass, PA lens
• Environment: IP67; -25...+60 °C
• Connection: M12 4-pin connector

Used for presence detection on conveyors and in assembly stations where a machine frame or wall sits close behind the object. Both outputs are available on one connector (black and white wires), so one sensor gives the controller the light and dark operate signal. A green LED shows power, a yellow LED shows the output state.

T30R-1515-KIQ is a Banner T30R series 122 GHz FMCW radar sensor in an M30 housing with a 15 x 15° beam. It outputs the measured distance as 4-20 mA and has one configurable PNP/NPN discrete output that also carries IO-Link.

• Accuracy: linearity < ±20 mm below 500 mm, < ±4 mm above 500 mm (RCS 1 m² reference target); repeatability < 1 mm; temperature effect < ±10 mm
• Range: detection 0.15...15 m, measurement 0.2...15 m
• Outputs: analog 4-20 mA (white wire); discrete PNP/NPN or IO-Link push/pull (black wire), 50 mA; analog update 2 ms, discrete response 6 ms
• Supply: 10...30 V DC, < 100 mA at 24 V
• Housing: PBT, M30 x 1.5 thread, COP window
• Environment: IP67, -40...+65 °C
• Connection: integral M12 5-pin male

The rounded lens focuses the signal into a narrow 15° beam. Detection is unaffected by wind, fog, steam and temperature changes and resists rain and snow. Settings are made over IO-Link, with Banner Measurement Sensor Configuration Software or with the remote input wire.

Radio approval: US, Canada, Europe, UK, Australia, New Zealand, India, Singapore, Malaysia, Korea; ETSI EN 305 550-1 and -2. Vibration per MIL-STD-202F method 201A, shock per method 213B (75 g operating).

Q20NLPQ7 is a Banner Q20 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 4 m range with a BRT-84 reflector. The polarizing filter lets it detect shiny objects that would reflect an unpolarized beam back to the sensor.

• Sensing range: 4 m with BRT-84 reflector
• Output: NPN, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: integral M8 4-pin male connector

A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

T18-2VPDL-Q8 is a Banner T18-2 series diffuse sensor with visible red light that detects objects by the light they reflect back. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas. A single-turn potentiometer sets the sensitivity.

• Sensing range: 750 mm
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 0.75 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

QS18VP6R W/30 is the receiver of a Banner QS18 series opposed-mode photo sensor pair. It switches when an object breaks the beam from a separate QS186E emitter up to 20 m away.

• Sensing range: 20 m with a QS186E emitter, effective beam 13 mm
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 750 µs ON, 375 µs OFF; repeatability 100 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: 9 m PVC cable, 4 wires

Works with a QS186E emitter, ordered separately. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

QS186E W/30 is the emitter of a Banner QS18 series opposed-mode photo sensor pair. It sends an infrared 940 nm beam to a separate QS18 receiver up to 20 m away; an object is detected when it breaks the beam.

• Sensing range: 20 m with a QS18 receiver, effective beam 13 mm
• Output: none (emitter)
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: 9 m PVC cable, 2 wires

The emitter has no output and works only with a QS18VP6R or QS18VN6R receiver, ordered separately. A green LED indicator shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

T18-2NAES-Q8 is a Banner T18-2 series opposed-mode emitter with visible red light, used with a T18-2 receiver. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas. A single-turn potentiometer sets the sensitivity.

• Sensing range: 25 m with a T18-2 receiver
• Light source: visible red LED
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

SI-MAGB2MM is the coded magnet for Banner SI-MAGB2 non-contact magnetic safety interlock switches. It is mounted on the moving guard, and the switch changes state when the magnet comes within its switching distance.

• Fits: SI-MAGB2SM and SI-MAGB2SMQD switches
• Switching distance: 3...14 mm
• Mounting: two Ø 4.3 mm holes
• Operating temperature: -25...+70 °C

The coding is low: any SI-MAGB2 magnet operates any SI-MAGB2 switch, so the magnet and switch should be fixed with tamper-resistant fasteners. Magnets from the older SI-MAG models without the B do not work with SI-MAGB switches.

OR18W.TI-ZZZP.9VO is the emitter half of the Baumer OR18W through-beam pair, in a washdown stainless steel 1.4404 (V4A) housing rated IP 67/69K. It carries no switching output - it only sends the infrared beam, and the matching OR18W receiver does the detecting.

• Housing: stainless steel 1.4404 (V4A), M18 x 1 thread, 67.2 mm long, PMMA lens
• Environment: IP 67/69K; -25...+55 °C
• Operating range: 13 m actual (nominal 20 m), pulsed infrared diode 880 nm
• Emission power: adjustable, 270° potentiometer
• Supply: 12...30 V DC, max. 40 mA
• Connection: M12 4-pin connector

Pins 2 and 4 (white and black) are the ON/OFF inputs, so the beam can be switched off from the controller without cutting the supply - useful when two pairs face each other and have to be run alternately. A green LED shows that the emitter is powered. The receiver is ordered separately.

OR18W.EI-PW1P.9VO is the receiver half of the Baumer OR18W through-beam pair, in a washdown stainless steel 1.4404 (V4A) housing rated IP 67/69K. It switches when the beam from the matching OR18W emitter is interrupted, so the emitter has to be ordered with it.

• Housing: stainless steel 1.4404 (V4A), M18 x 1 thread, 67.2 mm long, PMMA lens
• Environment: IP 67/69K; -25...+55 °C
• Operating range: 13 m actual (nominal 20 m)
• Output: PNP, < 100 mA, light/dark operate; response time < 2 ms
• Supply: 12...30 V DC, max. 40 mA
• Connection: M12 4-pin connector

A through-beam pair holds its range on wet, dark or poorly reflecting objects, which is what makes it the choice on washdown lines where a reflector would be fouled by the cleaning water. Sensitivity is set on the receiver with a 270° potentiometer and pin 2 (white) is a control input. A green LED shows beam alignment and lens soiling, a yellow LED the output state.

T18-2NAEL-2M is a Banner T18-2 series opposed-mode emitter with visible red light, used with a T18-2 receiver. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 receiver
• Light source: visible red LED
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: 2 m PVC cable

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

T18-2VPRL-2M is a Banner T18-2 series opposed-mode receiver, used with a T18-2 emitter. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 emitter
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 1 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: 2 m PVC cable

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

T18-2NAEL-Q8 is a Banner T18-2 series opposed-mode emitter with visible red light, used with a T18-2 receiver. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 receiver
• Light source: visible red LED
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

Q5XKLAF5000-Q8 is a Banner Q5X series Class 2 laser measurement sensor with a 50...5000 mm range and two independent switching outputs. It detects black targets below 6 % reflectance, also against a black or shiny metal background, and shows the measured distance on its display; settings are made with the buttons or over IO-Link.

• Sensing range: 50...5000 mm; laser alignment tolerance ±86 mm at 5000 mm
• Output 1: IO-Link, push/pull or PNP/NPN switching, 50 mA
• Output 2: PNP/NPN switching, pulse frequency output or remote input, 50 mA; response time 2, 5, 15, 50 or 250 ms
• IO-Link: v1.1, 38.4 kbit/s, Smart Sensor Profile, min. cycle time 3.6 ms
• Supply: 10...30 V DC, < 1.4 W; protected against reverse polarity and transient overvoltage
• Housing: ABS, PMMA lens cover; side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 4-pin, rotatable through 270°

Black gain mode raises excess gain about three times for low-reflectivity targets, and shiny gain mode lowers it to about one third for highly reflective ones. The sensor reaches full performance after 20 minutes of warm-up.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

OT500.GL-PLPVB.72F is a background suppression photo sensor from the Baumer OT500 series, measuring by time of flight over a 150...2500 mm switching range. A red laser diode (680 nm, laser class 1) forms a point beam focused at 1500 mm, and switching follows the measured distance rather than the amount of reflected light.

• Switching range: 150...2500 mm (Tw), set by qTeach or an external teach wire
• Output: PNP, complementary (Light operate), output current 50 mA
• Repeat accuracy: ≤ 1200...4300 µm, linearity error ± 10 mm
• Supply: 12...30 V DC, consumption max. 60 mA
• Housing: plastic (ASA, PMMA), 18 x 45 x 32 mm, PMMA optics window
• Environment: IP 67, -20...+50 °C
• Connection: M12 connector, 5 pin

The complementary output gives an NO and an NC signal at the same time, so the operating mode need not be chosen before installation. Teaching is done either with qTeach on the housing or through an external wire, which allows the switching distance to be re-taught from the control cabinet. Suppression of reciprocal influence allows several sensors to be mounted side by side.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).

SI-RF-A2 is the low-profile RFID actuator for Banner SI-RF non-contact safety switches. It carries a fixed safety code that the switch reads when the guard closes.

• Fits: all SI-RF switches (Low, High and Unique coded)
• Size: 36 x 18 mm
• Mounting: two Ø 4.3 mm holes

With a Low coded switch any actuator works. A High coded switch accepts only the last taught actuator (up to 12 teach-ins), and a Unique coded switch accepts only the one actuator taught at installation, so a replacement SI-RF-A2 has to be taught in on High models and cannot be used on Unique models without replacing the switch.

UR18.EB0.2-GP2J.9SF is the receiver of a Baumer UR18 series ultrasonic through-beam sensor, in an M18 stainless steel housing with an operating range up to 2000 mm. The manufacturer recommends it for double sheet detection.

• Accuracy: repeatability 3 mm; hysteresis typ. 5 % Sde; temperature drift < 2 % Sde; minimum object size > 4 cm² at 50 mm
• Operating range: 0...2000 mm; response time < 9 ms; sonic frequency 200 kHz
• Outputs: push-pull (works as PNP or NPN), up to 100 mA; IO-Link V1.1, COM 2 (38.4 kBaud), cycle time ≥ 3 ms, port type Class A, also transmits excess gain
• Supply: 12...30 V DC, consumption up to 25 mA; short-circuit and reverse-polarity protected
• Housing: M18 threaded cylinder, stainless steel (V2A) / TR90, PEEK-coated sensor face, 64 mm long
• Environment: IP69 (housing), IP67 (connection), operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin

Works only as a pair with the UR18.TB0.2-ZZZZ.9SF emitter, which is ordered separately. The switching threshold is set by qTeach, Line-Teach or over IO-Link, which also configures output logic, time filters and the counter.

UR18.TB0.2-ZZZZ.9SF is the emitter of a Baumer UR18 series ultrasonic through-beam sensor, in an M18 stainless steel housing with an operating range up to 2000 mm. The emitter has no switching output.

• Operating range: 0...2000 mm; sonic frequency 200 kHz
• Supply: 12...30 V DC, typical consumption 25 mA; short-circuit and reverse-polarity protected
• Housing: M18 threaded cylinder, stainless steel (V2A) / TR90, PEEK-coated sensor face, 64 mm long
• Environment: IP69 (housing), IP67 (connection), operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin; green LED shows power

Works only as a pair with the UR18.EB0.2-GP2J.9SF receiver, which is ordered separately; all settings and the output are on the receiver.

UWG18-5.0 is a Banner wave guide that threads onto the 18 mm barrel of an S18U or QS18U ultrasonic sensor and focuses the beam through a 5.0 mm bore. It lets the sensor reach into small openings and detect sheet metal edges.

• Fits: Banner S18U and QS18U ultrasonic sensors
• Bore: inside Ø 5.0 mm, outside Ø 7.0 mm
• Material: acetal
• Included: slim threaded plastic nut and gasket

Tighten the wave guide until the sensor face sits on the gasket and the bevel faces down, so debris does not collect in the opening. In high-vibration positions a little thread-locker is recommended.

SMB30FA is a Banner swivel bracket for 30 mm barrel sensors. The clamp tilts and pans on a 3/8-16 bolt, so the sensor can be aimed after the bracket is fixed.

• Fits: sensors with M30 thread, Ø 30.1 mm clamp hole
• Movement: tilt and pan, locked with a 10-24 clamp screw
• Mounting: 3/8-16 UNC bolt
• Material: stainless steel
