18.605 G is a submersible OEM pressure transmitter for hydrostatic level measurement in water and fuel oil tanks. It features a piezoresistive stainless steel sensor with 0.5% span accuracy according to EN IEC 62828-2 and nominal ranges from 0…1 mH₂O up to 0…10 mH₂O, making it a compact and reliable solution for tank level monitoring.

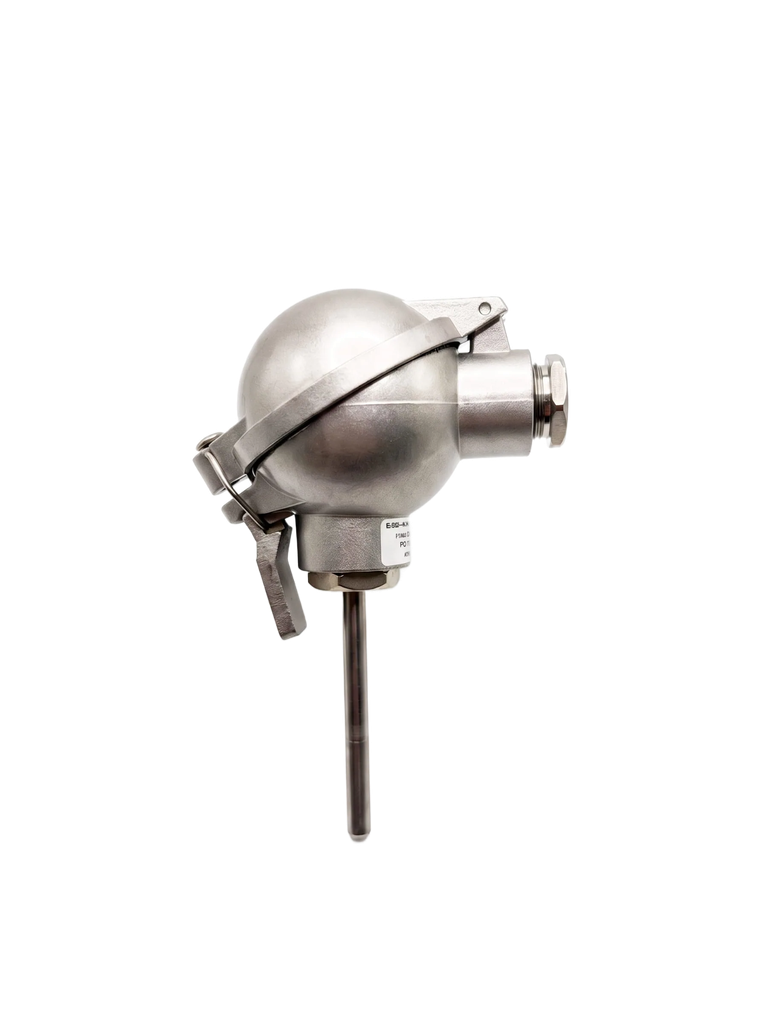

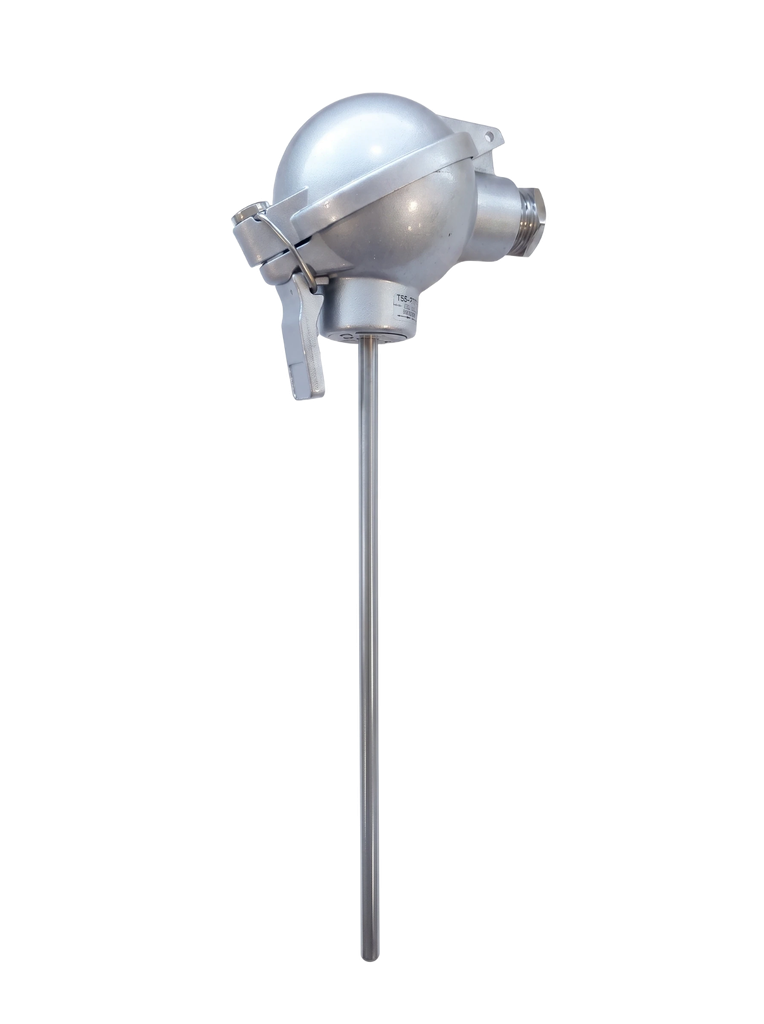

Versatile mineral-insulated (MgO) temperature sensor with a wide working range of −200…+600 °C. The vibration-resistant, bendable sheath (stainless steel AISI 316L, Ø 6 mm) with 4-wire Pt1000 element, Class B (Class A and duplex elements on request), ensures fast response and high measuring accuracy. Supplied with a robust NAA aluminium head, IP67, with quick-release lid.

Available with thermowells, threaded connections, head-mounted transmitters (4–20 mA, 0–10 V, RS485 Modbus RTU) and in ATEX, Marine and SIL3-certified versions. Made in Italy.

Early detection = Early warning
Detection of water and moisture
Mounting:
- Directly on floor
the WLD 24 have 2 sensing parts (electrode extensions)
under the unit
- On the wall with external water detection tape WDT
Switching output
Relay 60 V / 1 A, potential free changer
Power supply 24 Vac/dc
Sensitivity adjustable via potentiometer
LED status indication

Power supply: 24 Vac/dc Relay output: 60 V / 1 A, potential-free changer Sensitivity: adjustable via potentiometer Mounting: directly on the floor with two electrode extensions or on the wall with an external water detection tape (WDT) LED status indication Protection class: IP65 Dimensions: 79x69x56 mm, plus 7 mm height for the electrode extensions Operating conditions: -30°C to +70°C, 0 to 98% relative humidity

The BD Sensors DMD331 is a compact differential pressure transmitter designed for precise monitoring of gases and non-aggressive liquids. It delivers stable, high-accuracy measurements even at low pressure ranges, making it ideal for HVAC, filtration, cleanroom, and process control applications. Reliable, robust, and easy to integrate.

The 17.600 G is a welded stainless steel OEM pressure transmitter designed for demanding mobile hydraulics and industrial applications. It is suitable for mechanical and plant engineering, refrigeration technology, medical technology, and utility vehicles. Thanks to its robust design and high media compatibility, it can be used with fuels, oils, and oxygen.

DMP 331 is a stainless steel pressure transmitter for universal industrial applications, provided the medium is compatible with stainless steel 1.4404 (316L) or 1.4435 (316L). Various elastomer seals and a helium-tested welded version are available. Its modular design allows combining different sensor elements, electronic modules, and electrical/mechanical connections, resulting in a wide range of configurations that meet almost all industrial requirements.

Versatile mineral-insulated (MgO) temperature sensor with a wide working range of −200…+600 °C. The vibration-resistant, bendable sheath (stainless steel AISI 316L, Ø 6 mm) with 4-wire Pt1000 element, Class B (Class A and duplex elements on request), ensures fast response and high measuring accuracy. Supplied with a robust NAA aluminium head, IP67, with quick-release lid.

Available with thermowells, threaded connections, head-mounted transmitters (4–20 mA, 0–10 V, RS485 Modbus RTU) and in ATEX, Marine and SIL3-certified versions. Made in Italy.

DMP 331P is a flush-mounted stainless steel pressure transmitter designed for hygienic applications in the food and pharmaceutical industries. Its compact design with hygienic process connections ensures high accuracy, excellent temperature stability and long-term reliability. Thanks to its modular construction, it can be configured with different process connections, filling fluids, cooling elements and electrical connections, making it a flexible solution for most hygienic process applications.

DMP 331 Pi is a high-precision, flush-mounted stainless steel pressure transmitter for hygienic applications in the food and pharmaceutical industries. The specially designed stainless steel sensor is combined with a new digital electronics platform that actively compensates hysteresis, temperature errors and non-linearity. Standard operation is possible from -40…125 °C, and with an integrated cooling element the process temperature range can be extended up to 300 °C.

DMP 331 Pi is a high-precision, flush-mounted stainless steel pressure transmitter for hygienic applications in the food and pharmaceutical industries. The specially designed stainless steel sensor is combined with a new digital electronics platform that actively compensates hysteresis, temperature errors and non-linearity. Standard operation is possible from -40…125 °C, and with an integrated cooling element the process temperature range can be extended up to 300 °C.

DMP 331 Pi is a high-precision, flush-mounted stainless steel pressure transmitter for hygienic applications in the food and pharmaceutical industries. The specially designed stainless steel sensor is combined with a new digital electronics platform that actively compensates hysteresis, temperature errors and non-linearity. Standard operation is possible from -40…125 °C, and with an integrated cooling element the process temperature range can be extended up to 300 °C.

DM 01 is a high-precision digital pressure gauge with a stainless steel sensor, designed for test and calibration tasks as well as demanding process monitoring. Thanks to its modular concept, different pressure transmitters can be quickly exchanged on site without tools or reconfiguration. The integrated data logger records pressure and temperature values for later analysis with BD|LOG software. Typical areas of application include mechanical and plant engineering and laboratory environments.

DMP 333 is a stainless steel pressure transmitter specially designed for hydraulic applications with high static and dynamic pressure. It offers excellent long-term stability, even under rapidly changing pressures and both positive and negative pressure peaks. Thanks to its modular design, different stainless steel sensors and electronic modules can be combined with a wide range of electrical and mechanical connections, creating many variants to meet almost all hydraulic application requirements. Typical fields of use include mechanical and plant engineering, refrigeration technology, utility vehicles and mobile hydraulics.

DMP 331P is a flush-mounted stainless steel pressure transmitter designed for hygienic applications in the food and pharmaceutical industries. Its compact design with hygienic process connections ensures high accuracy, excellent temperature stability and long-term reliability. Thanks to its modular construction, it can be configured with different process connections, filling fluids, cooling elements and electrical connections, making it a flexible solution for most hygienic process applications.

DMP 331P is a flush-mounted stainless steel pressure transmitter designed for hygienic applications in the food and pharmaceutical industries. Its compact design with hygienic process connections ensures high accuracy, excellent temperature stability and long-term reliability. Thanks to its modular construction, it can be configured with different process connections, filling fluids, cooling elements and electrical connections, making it a flexible solution for most hygienic process applications.

The 18.601G OEM Pressure Transmitter is a low-pressure sensor designed for general industrial applications. It features a stainless steel measuring cell combined with a Viton (FKM) seal, ensuring good chemical resistance and reliable performance. Its compact, robust design makes it well suited for integration into OEM equipment and machinery.

The 18.601G OEM Pressure Transmitter is a low-pressure sensor designed for general industrial applications. It features a stainless steel measuring cell combined with a Viton (FKM) seal, ensuring good chemical resistance and reliable performance. Its compact, robust design makes it well suited for integration into OEM equipment and machinery.

Differential pressure sensor with two measuring ranges (0–5000 Pa or 0–10000 Pa) for dependable mid-range pressure monitoring. It provides flexible integration via 0–10 VDC and 4–20 mA analog outputs and runs on 24 V AC/DC. The LED display shows real-time pressure readings, and the response time can be selected to match your system—fast 100 ms feedback or smoother 1 second operation.

Differential pressure sensor with two measuring ranges (0–5000 Pa or 0–10000 Pa) for dependable mid-range pressure monitoring. It provides flexible integration via 0–10 VDC and 4–20 mA analog outputs and runs on 24 V AC/DC. Choose the response time that fits your system—fast 100 ms feedback or smoother 1 second operation.

DPS 300 is a differential pressure transmitter designed for optimal monitoring of air flows. Developed for HVAC applications, it is suitable for measuring non-aggressive gases. It provides stable, reliable readings and is easy to integrate into ventilation, air conditioning, and building automation systems.

Media:

Gases

Weight transmitter and indicator for

• 4 independent reading channels

• Suitable for back panel

• Six-digit semi-alphanumeric display

• 7 segment 8 mm height

• 6 signalling LEDs

• Four buttons for the system calibration (behind display)

• Removable screw terminal blocks

• The T1-4 Channel Transmitter can be configured and managed,

using the free “Instrument Manager” PC software,

which you can download from our website.

18.605 G is a submersible OEM pressure transmitter for hydrostatic level measurement in water and fuel oil tanks. It features a piezoresistive stainless steel sensor with 0.5% span accuracy according to EN IEC 62828-2 and nominal ranges from 0…1 mH₂O up to 0…10 mH₂O, making it a compact and reliable solution for tank level monitoring.

DMP 331 is a stainless steel pressure transmitter for universal industrial applications, provided the medium is compatible with stainless steel 1.4404 (316L) or 1.4435 (316L). Various elastomer seals and a helium-tested welded version are available. Its modular design allows combining different sensor elements, electronic modules, and electrical/mechanical connections, resulting in a wide range of configurations that meet almost all industrial requirements.
