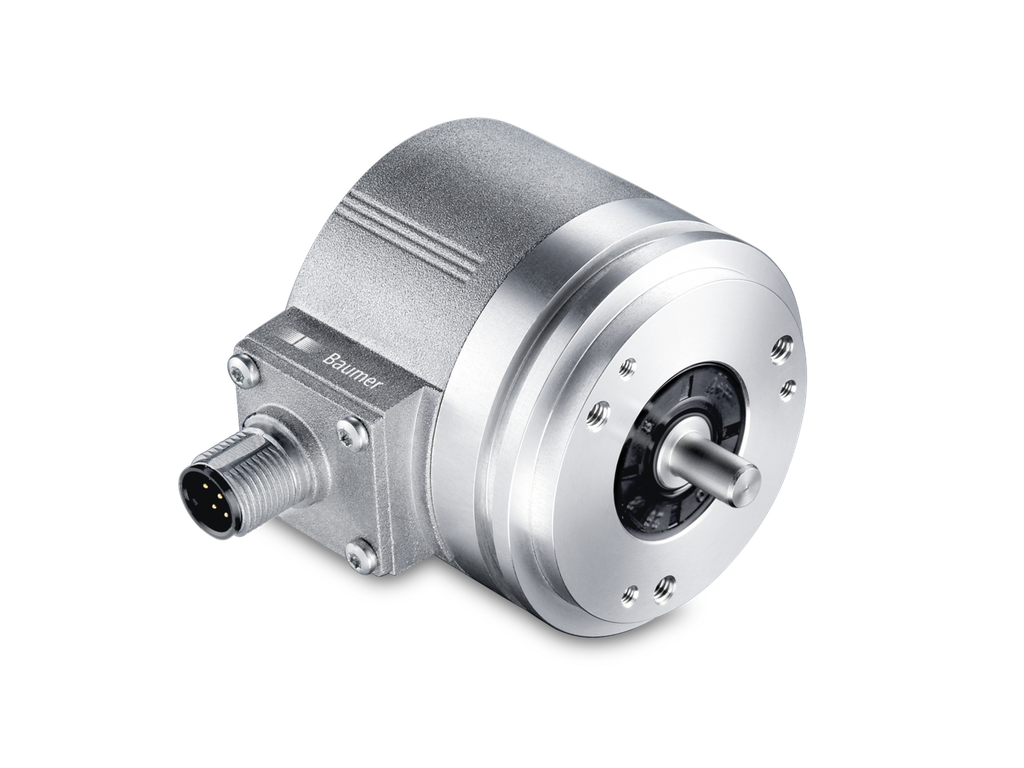

Encoder EIL580-SY06.5EQ.01000.A, 1000 PPR, HTL push-pull, 4.75-30VDC, synchro flange, Ø6 mm shaft

EIL580-SY06.5EQ.01000.A is a Baumer optoPulse incremental encoder with optical sensing, 1000 pulses per revolution and synchro flange mounting. The HTL output level follows the supply (Vout = Vin), so on a 24 V system the signal is at 24 V and goes straight to a PLC high-speed counter input.

• Resolution: 1000 pulses per revolution, zero pulse
• Output: HTL/push-pull, 6 channels (A+, B+, R+, A-, B-, R-), up to 160 kHz
• Supply: 4.75-30 V DC, no-load consumption ≤70 mA
• Housing: Ø58 mm, synchro flange with Ø50 mm centring collar, Ø6 x 10 mm shaft with flat
• Environment: IP65, -40...+85 °C, up to 12000 rpm

The synchro flange lets the encoder be held with clamps and rotated around its shaft before tightening. The shaft needs a flexible coupling.

UL 508 / CSA 22.2 approved. EMC to EN 61000-6-2 and EN 61000-6-3; vibration (30 g, 10-2000 Hz) and shock (300 g, 6 ms) resistance to EN 60068-2-6 and EN 60068-2-27.
