Level sensor ZMX-3DE2500HF-Q7, 3D ToF, 0.2...2.5 m, 2x PNP/NPN, Ethernet, M8

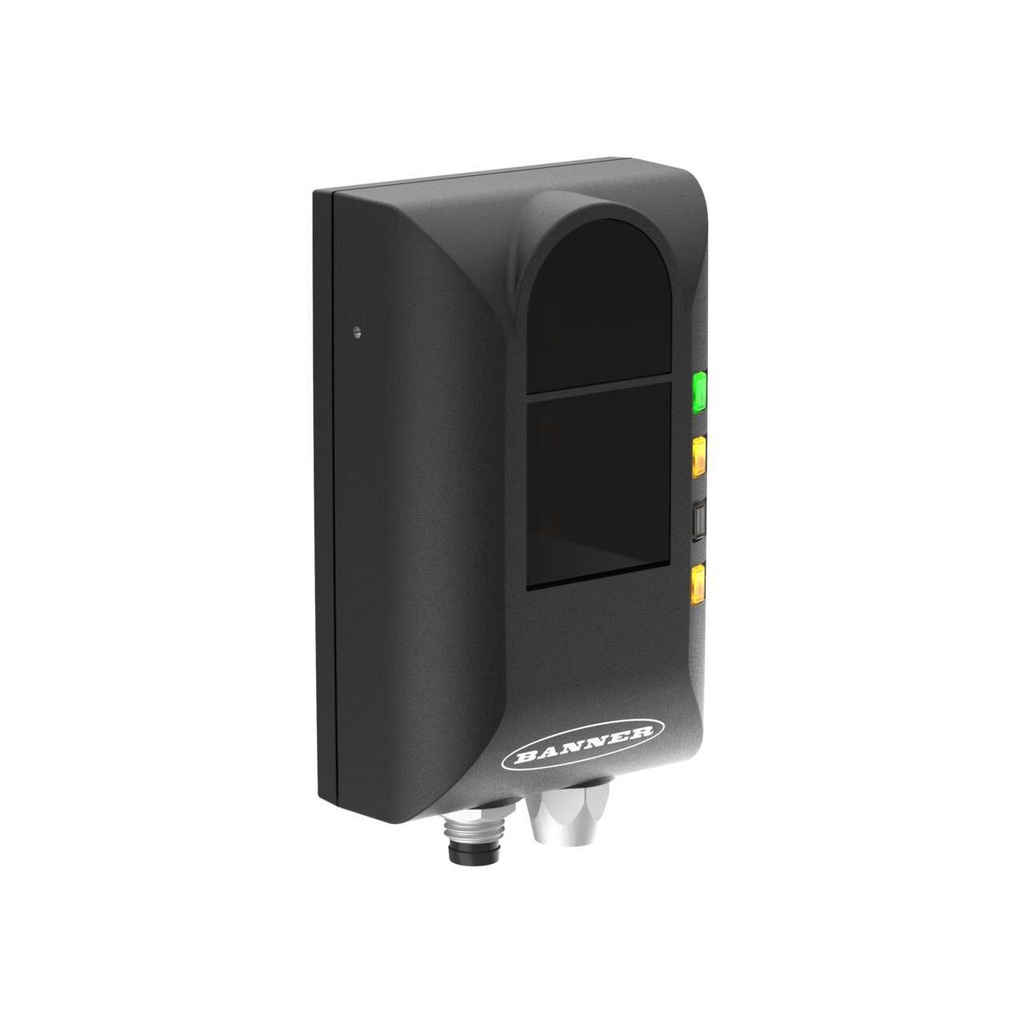

ZMX-3DE2500HF-Q7 is a Banner ZMX series 3D time-of-flight sensor that measures distance over a 60 x 45° area with 272 x 208 pixels. Instead of a single point it estimates the fill level and the peak height of the whole region, so uneven stacks and gaps between items do not distort the reading.

• Accuracy: ±30 mm at > 10x excess gain (6...90 % targets, centre 25 % of the field of view); repeatability 2...40 mm
• Measuring range: 200...2500 mm (white and 20 % grey), 200...1700 mm (6 % black); up to 6 frames/s
• Outputs: channel 1 PNP/NPN or PFM; channel 2 PNP/NPN, PFM or remote trigger; 50 mA
• Communication: Ethernet 100 Mbps, Modbus TCP and EtherNet/IP
• Supply: 12...30 V DC, 200 mA average, 2.5 A peak
• Environment: IP65, -10...+40 °C; aluminium housing, Class 1 infrared laser 850 nm
• Connection: M8 4-pin male for power and I/O, M8 4-pin female for Ethernet

Used for bin and gaylord fill level, package height in shipping containers and overfill detection in totes. The region of interest and the container bottom are set once in the Banner 3D Configuration software; after that the sensor runs without a PC. A power cordset and an M8 Ethernet cordset must be ordered separately.

Vibration per MIL-STD-202G method 201A, shock per method 213B (100 g). UL, CE and UKCA.
