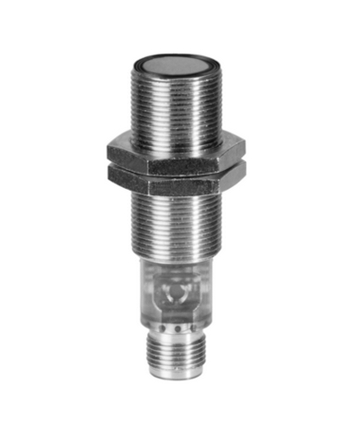

Ultrasonic sensor - receiver UR18.EB0.2-GP2J.9SF, 0...2000 mm, push-pull, IO-Link, M18, M12 5-pin

UR18.EB0.2-GP2J.9SF is the receiver of a Baumer UR18 series ultrasonic through-beam sensor, in an M18 stainless steel housing with an operating range up to 2000 mm. The manufacturer recommends it for double sheet detection.

• Accuracy: repeatability 3 mm; hysteresis typ. 5 % Sde; temperature drift < 2 % Sde; minimum object size > 4 cm² at 50 mm
• Operating range: 0...2000 mm; response time < 9 ms; sonic frequency 200 kHz
• Outputs: push-pull (works as PNP or NPN), up to 100 mA; IO-Link V1.1, COM 2 (38.4 kBaud), cycle time ≥ 3 ms, port type Class A, also transmits excess gain
• Supply: 12...30 V DC, consumption up to 25 mA; short-circuit and reverse-polarity protected
• Housing: M18 threaded cylinder, stainless steel (V2A) / TR90, PEEK-coated sensor face, 64 mm long
• Environment: IP69 (housing), IP67 (connection), operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin

Works only as a pair with the UR18.TB0.2-ZZZZ.9SF emitter, which is ordered separately. The switching threshold is set by qTeach, Line-Teach or over IO-Link, which also configures output logic, time filters and the counter.
