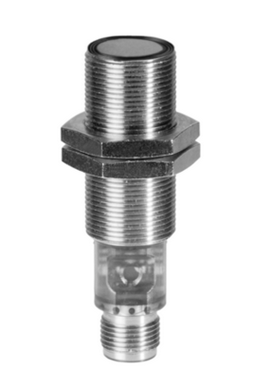

Ultrasonic sensor - emitter UR18.TB0.2-ZZZZ.9SF, 0...2000 mm, M18, M12 5-pin

UR18.TB0.2-ZZZZ.9SF is the emitter of a Baumer UR18 series ultrasonic through-beam sensor, in an M18 stainless steel housing with an operating range up to 2000 mm. The emitter has no switching output.

• Operating range: 0...2000 mm; sonic frequency 200 kHz
• Supply: 12...30 V DC, typical consumption 25 mA; short-circuit and reverse-polarity protected
• Housing: M18 threaded cylinder, stainless steel (V2A) / TR90, PEEK-coated sensor face, 64 mm long
• Environment: IP69 (housing), IP67 (connection), operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin; green LED shows power

Works only as a pair with the UR18.EB0.2-GP2J.9SF receiver, which is ordered separately; all settings and the output are on the receiver.
