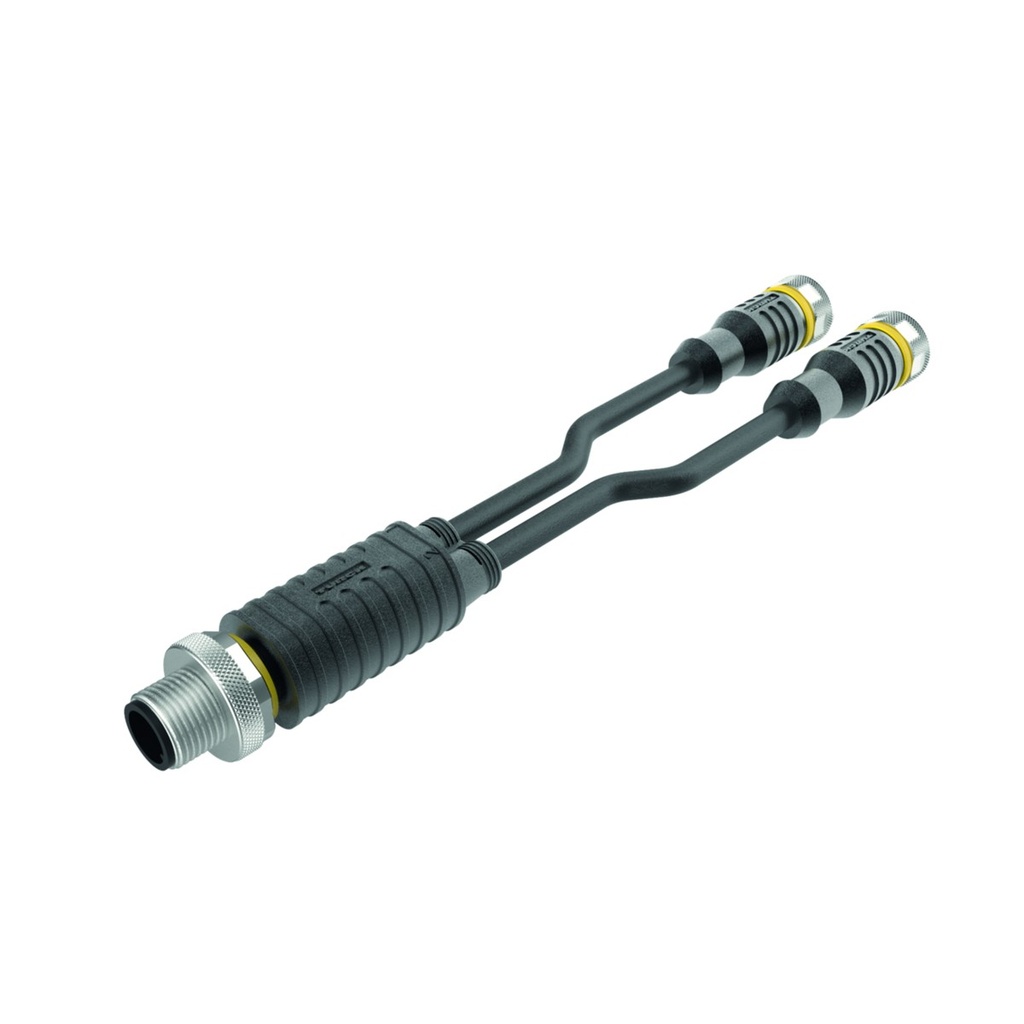

2-way splitter VBRS4.4-2RKC4.4T-0.3/0.3/TXL, M12 male / 2 x M12 female, straight, 4/4-pin, 0.3m PUR

VBRS4.4-2RKC4.4T-0.3/0.3/TXL is a TURCK Y-splitter with a straight M12 male connector (4-pin) and two straight M12 female connectors (4-pin) on 0.3 m PUR cable branches.

• Connectors: M12 x 1 male, 4-pin / 2 x M12 x 1 female, 4-pin, all straight, gold-plated brass (CuZn) contacts
• Cable: 2 x 0.3 m, PUR, black, Ø 4.7 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nuts, FPM/FKM seal; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

RoHS compliant.
