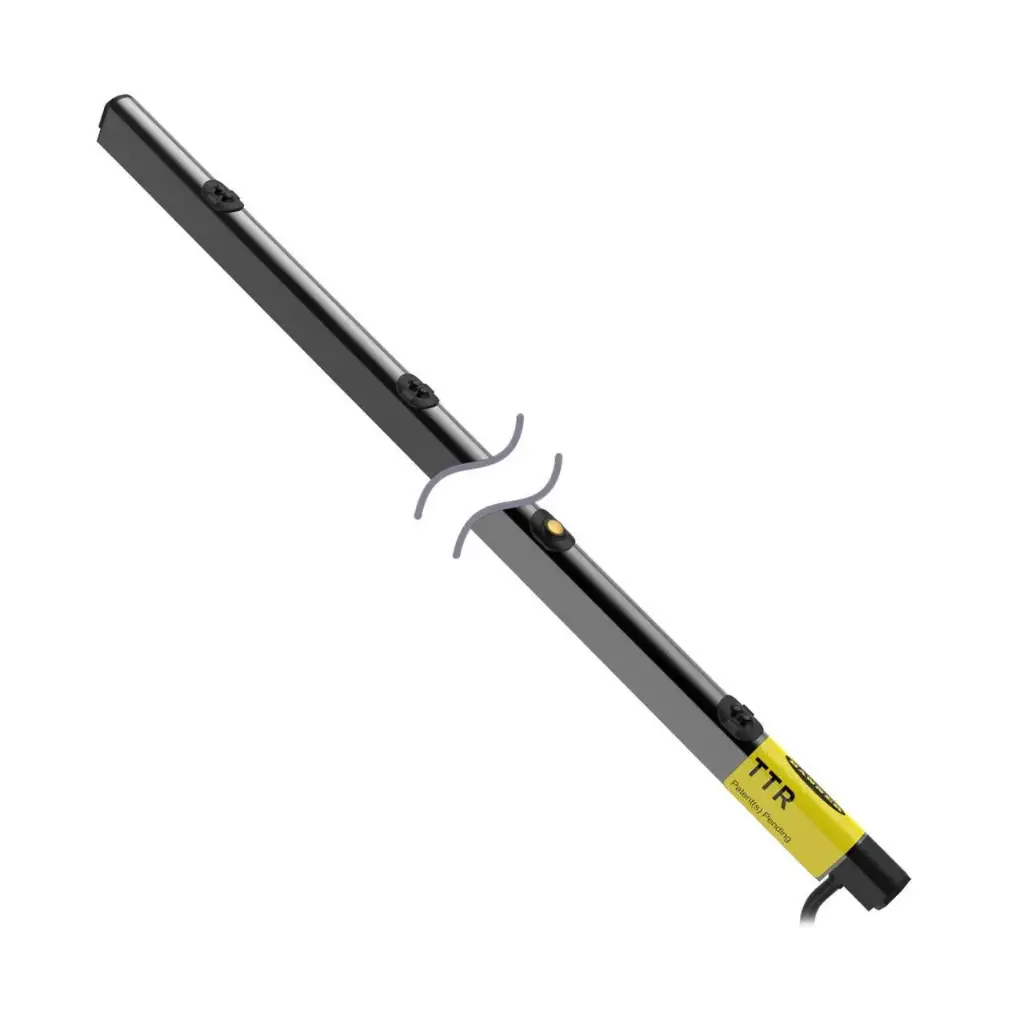

Photo sensor array TTR558APSB6T-2.0Q3-061, roller conveyor, 6 beams, 558 mm, PNP, M8

TTR558APSB6T-2.0Q3-061 is a Banner Through the Roller sensor: an aluminium bar with six diffuse infrared beams that sits in the gap between conveyor rollers and detects the leading edge of letters, thin packages, poly bags, totes and boxes. All six beams switch one common output.

• Sensing range: 0...≥120 mm on 90% white card, 0...≥50 mm on 18% grey, ≤3...≥30 mm on 6% black
• Beams: 6, spacing 93.1 mm, first beam 61 mm from the cable end cap; infrared 940 nm
• Output: PNP, Light Operate, 100 mA; response 1 ms
• Supply: 18-30VDC, 45 mA
• Housing: aluminium, 558 mm between frames, end cap style T for T-slot mounting
• Environment: IP50, -10...+55 °C
• Connection: 2 m cable with M8 4-pin snap connector

On the T-slot the sensor is 6 mm shorter than the stated between-frame distance, and the bracket and hardware are supplied by the customer. Keep at least 12 mm clearance to any fixed barrier in the beam path.

Vibration per IEC 60068-2-6, IEC 60947-5-2 and MIL-STD-202F, Method 201A; shock per IEC 60068-2-27.
