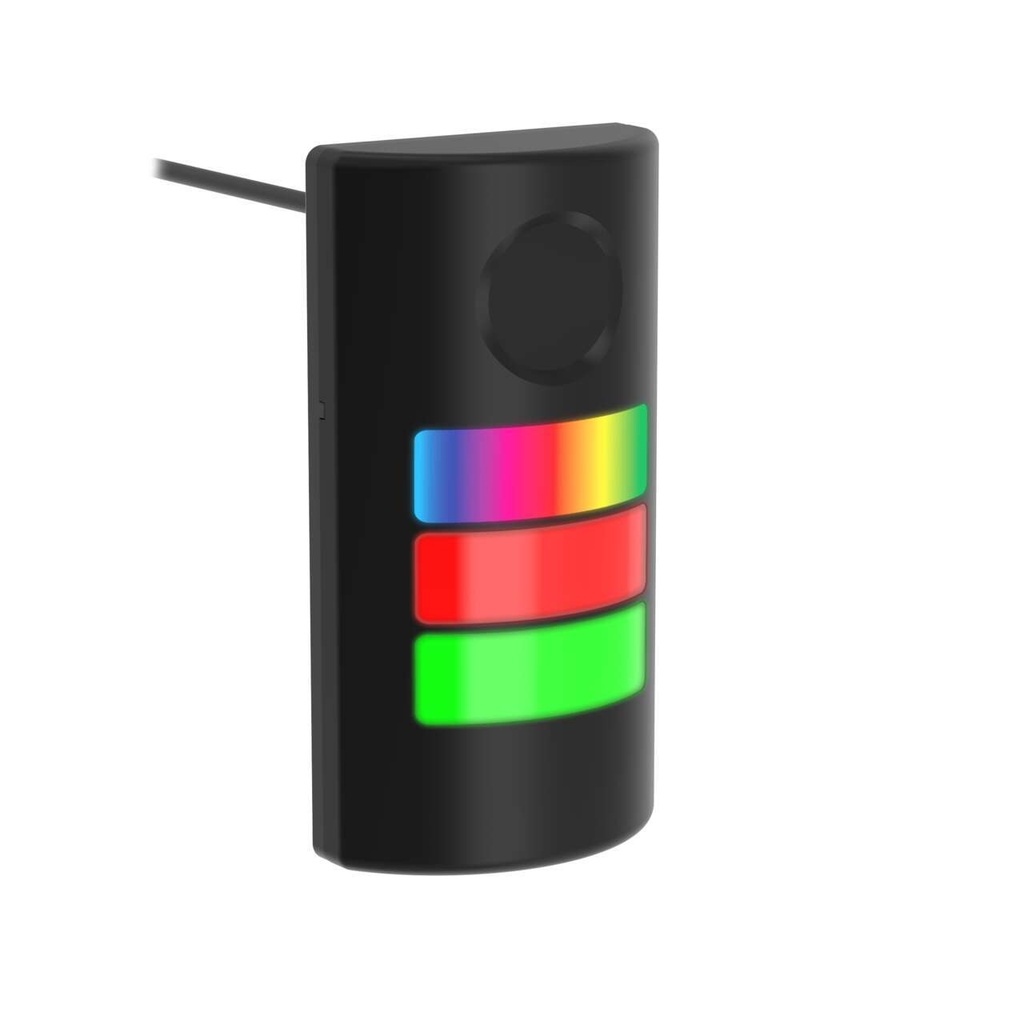

LED indication tower TLF100P3QP, flush mount, 3 RGB segments, PNP/NPN, 12-30VDC, IP69K, M12 5-pin pigtail

TLF100P3QP is a Banner TLF100 Pro series 100 mm tower light with three RGB segments in a flat housing that mounts flush on a machine surface. Each segment is switched by its own bimodal PNP or NPN input wire.

• Segments: 3, RGB multicolor, default green/yellow/red from the bottom; e.g. green 7.5 lm, yellow 9.8 lm, red 3.7 lm per segment
• Inputs: bimodal PNP/NPN, one wire per segment, response max. 250 ms; advanced mode adds PWM/PFM (100...5000 Hz), counter and timer inputs
• Supply: 12...30 V DC, typ. 59 mA per segment at 24 V
• Housing: black polycarbonate, 100 x 190 x 42.2 mm, flush mounting; supplied screws for surfaces up to 8 mm
• Environment: IP65, IP69K, UL Type 4X, -40...+50 °C
• Connection: 150 mm PVC cable with 5-pin M12 male connector

Colors, flash patterns, animations and the level, counter and timer modes are set with Banner's free Pro Editor software, which needs the Pro Converter Cable. The cable must not be cleaned with a high-pressure jet.

CE, UKCA and UL marked. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
