LED indication tower TL50HGYRQP, high brightness, green/yellow/red, PNP/NPN, 18-30VDC/24VAC, IP67, 150 mm cable with M12

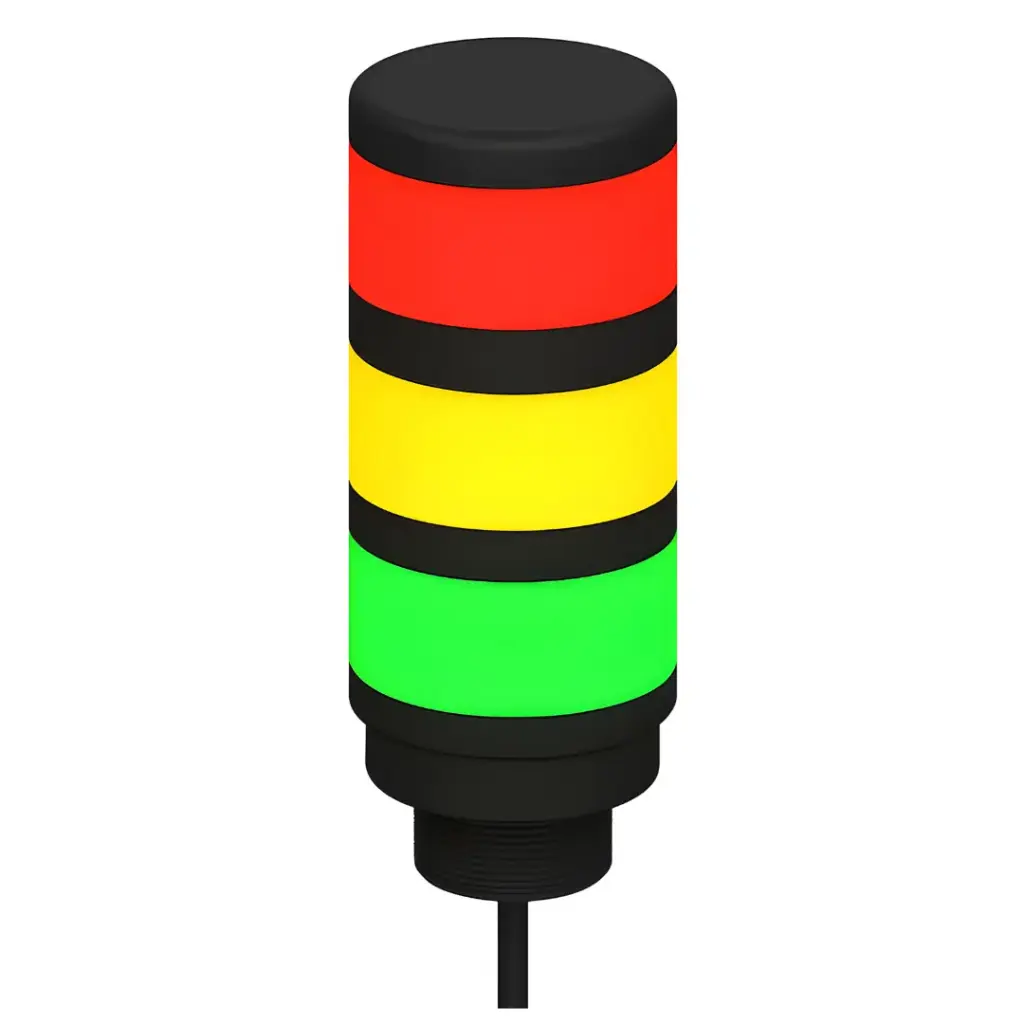

TL50HGYRQP is a Banner TL50H series high-brightness 50 mm tower light with green, yellow and red segments, for areas with strong ambient light. It comes assembled and each color is switched by its own bimodal input.

• Colors (bottom to top): green 525 nm (60 lm), yellow 590 nm (23 lm), red 625 nm (32 lm)
• Input: bimodal PNP/NPN, response 10 ms
• Supply: 18...30 V DC or 24 V AC; per color 100 mA at 18 V, 60 mA at 30 V
• Housing: ABS base and covers, polycarbonate segments, M30x1.5 thread, Ø50 x 161.5 mm
• Environment: IP67, UL Type 4X Indoor and 13, -40...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
