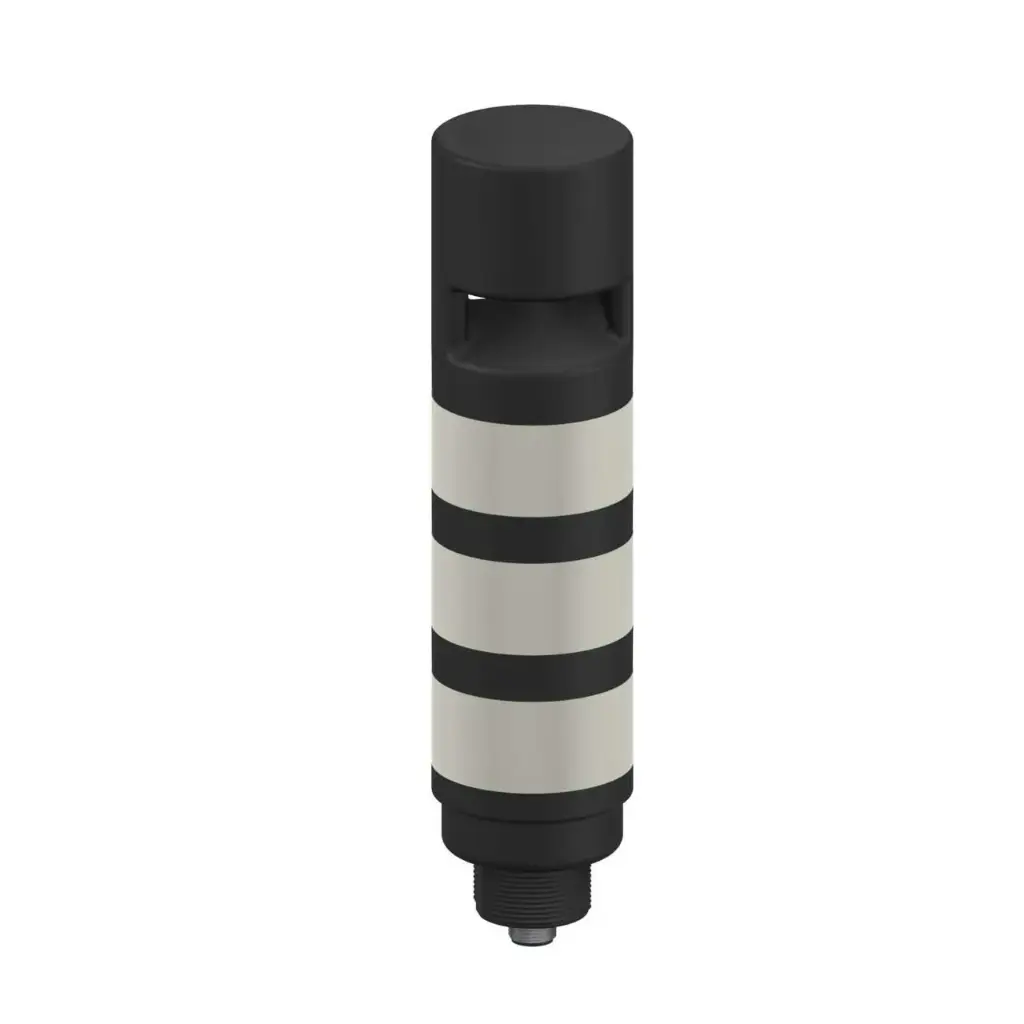

LED indication tower TL50HGYRAOS4Q, high brightness, green/yellow/red, omni audible 99 dB, PNP/NPN, IP67, M12 5-pin

TL50HGYRAOS4Q is a Banner TL50H series high-brightness 50 mm tower light with green, yellow and red segments and an omni-directional sealed audible with a staccato tone. It comes assembled; each color and the audible have their own bimodal input.

• Colors (bottom to top): green 525 nm (60 lm), yellow 590 nm (23 lm), red 625 nm (32 lm)
• Audible: omni-directional sealed, staccato, 2.1 kHz, 99 dB at 1 m, not adjustable
• Input: bimodal PNP/NPN, response 10 ms
• Supply: 18...30 V DC or 24 V AC; per color 100 mA at 18 V, audible 45 mA
• Housing: ABS base and covers, polycarbonate segments, M30x1.5 thread; IP67, UL Type 4X Indoor and 13
• Connection: integral 5-pin M12 male connector

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
