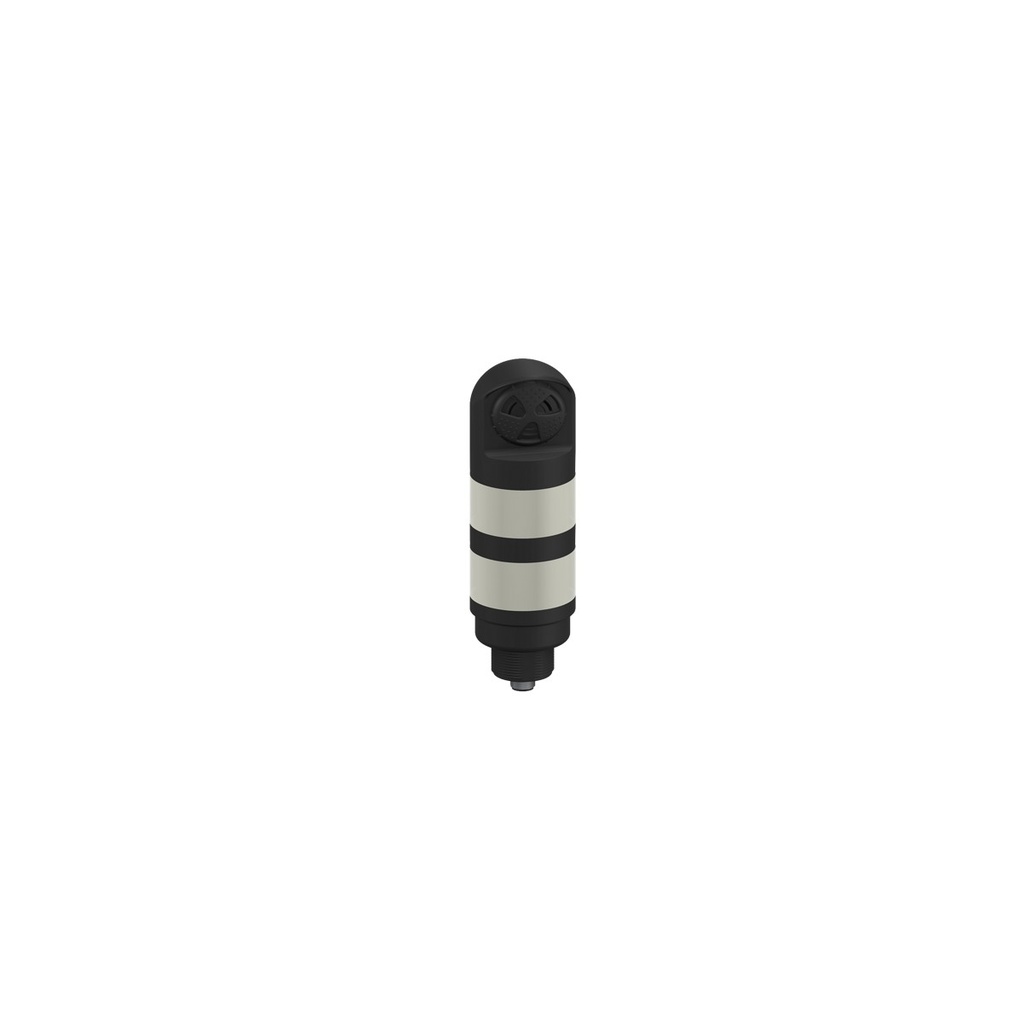

LED indication tower TL50GRALSQ, green/red, audible 94 dB, 18-30VDC/24VAC, M12 4-pin

TL50GRALSQ is a Banner TL50 series 50 mm LED tower light with 2 colour segments: green, red, from the bottom up, topped by a sealed audible alarm. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: green 528 nm, red 625 nm
• Audible: continuous tone, 2.9 kHz, up to 94 dB at 1 m, adjustable down to 74 dB
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC or 24 V AC 50/60 Hz, up to 45 mA per colour, alarm 35 mA
• Housing: Ø50 x 183.2 mm, ABS base and covers, polycarbonate light segments, black, M30x1.5 base mount
• Environment: IP67, -20...+50 °C
• Connection: integral M12 male connector, 4-pin

The tower connects through a separately ordered 4-pin M12 female cordset. Audible intensity is adjusted by rotating the front cover of the alarm.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).
