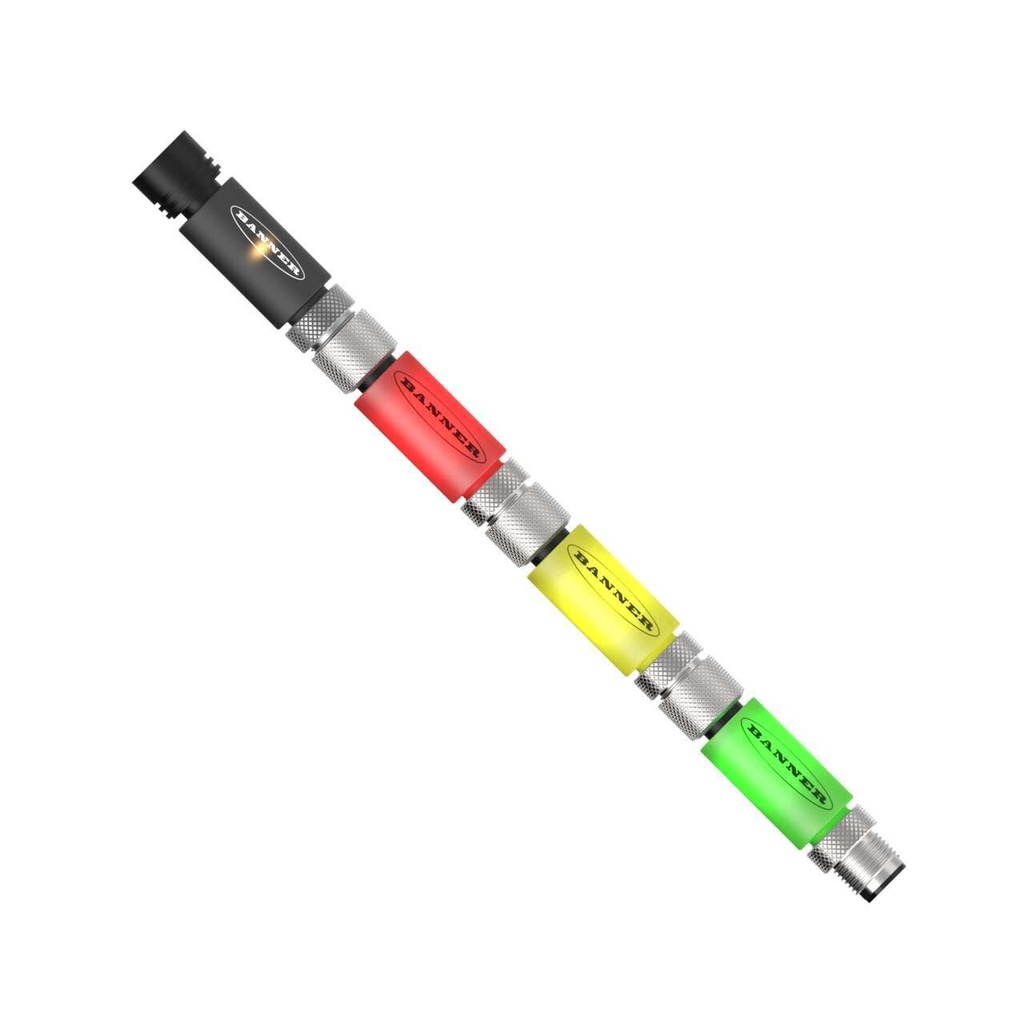

LED indication tower TL15GYRAQ, in-line kit, green/yellow/red + audible 79 dB, 12/24VDC, M12 5-pin

TL15GYRAQ is a Banner TL15 series kit of four 15 mm in-line segments - green, yellow, red and an audible - that screw together on M12 connectors into an ultra-small tower light. Each segment responds to one pin, so a single 5-pin cable drives all four.

• Segments: green 535 nm (18 lm, pin 4), yellow 590 nm (22 lm, pin 1), red 620 nm (10 lm, pin 2), audible (pin 5)
• Audible: 2.9 kHz, 79 dB at 1 m
• Input: lights bimodal PNP/NPN, audible PNP
• Supply: lights 12 V DC (80 mA) or 24 V DC (40 mA) ±10 %; audible 12...30 V DC
• Environment: lights IP65, IP67, IP68; audible IP60; -40...+50 °C
• Connection: 5-pin M12 male/female on light segments, M12 male on audible

The kit can stand alone or be added in-line to a sensor or an existing tower light; the segments are packed separately and assembled on site.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
