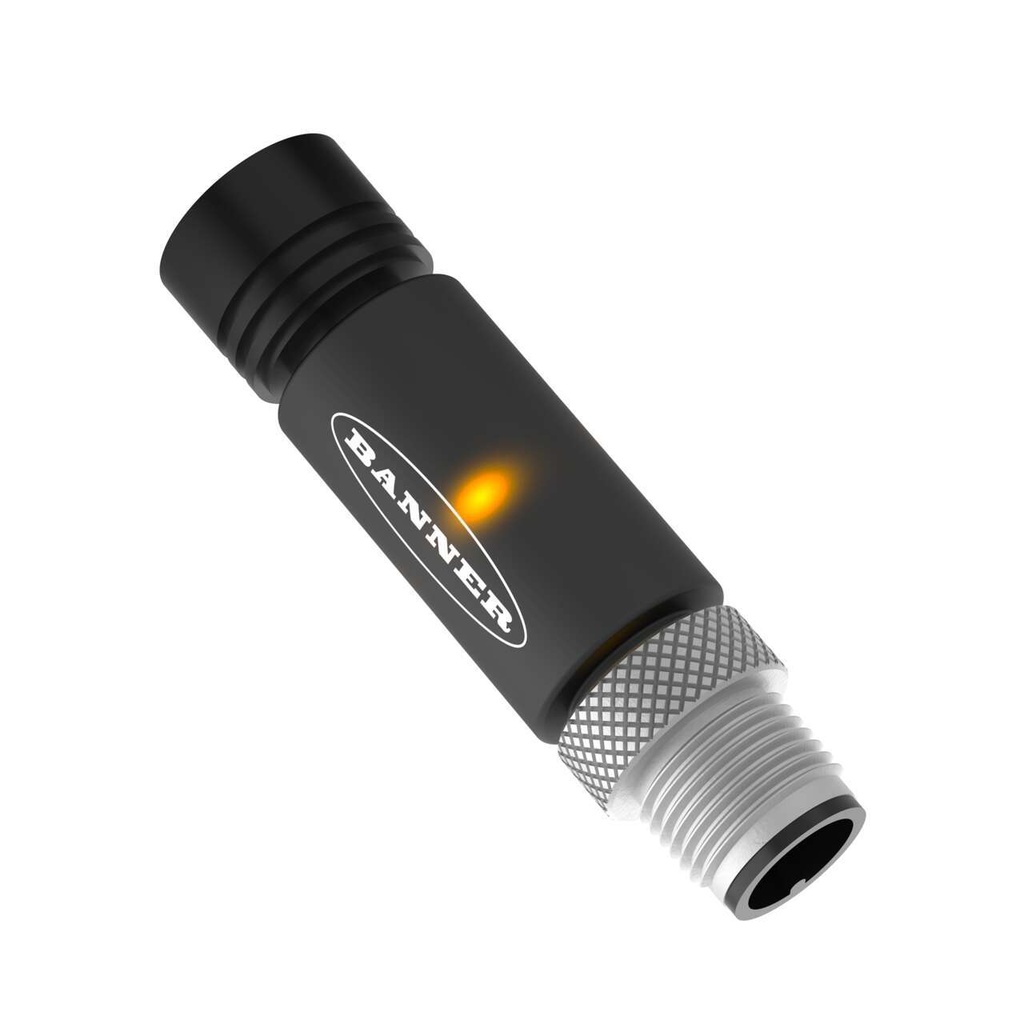

Indication tower audible module TL15A5Q, in-line, 79 dB, PNP pin 5, 12-30VDC, M12 5-pin

TL15A5Q is a Banner TL15 series 15 mm audible segment that fits in an M12 line or on top of a TL15 in-line tower light. It sounds when pin 5 is driven with a PNP signal.

• Audible: 2.9 kHz, 79 dB at 1 m; small yellow LED lights while sounding
• Input: PNP, active on pin 5
• Supply: 12...30 V DC, 55 mA at 12 V, 30 mA at 24 V
• Housing: nylon, Ø15 x 58 mm, nickel-plated brass coupling
• Environment: IP60, UL Type 1, -40...+50 °C
• Connection: integral 5-pin M12 male connector

The audible segment has only a male connector, so it is always the last element of a TL15 stack.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
