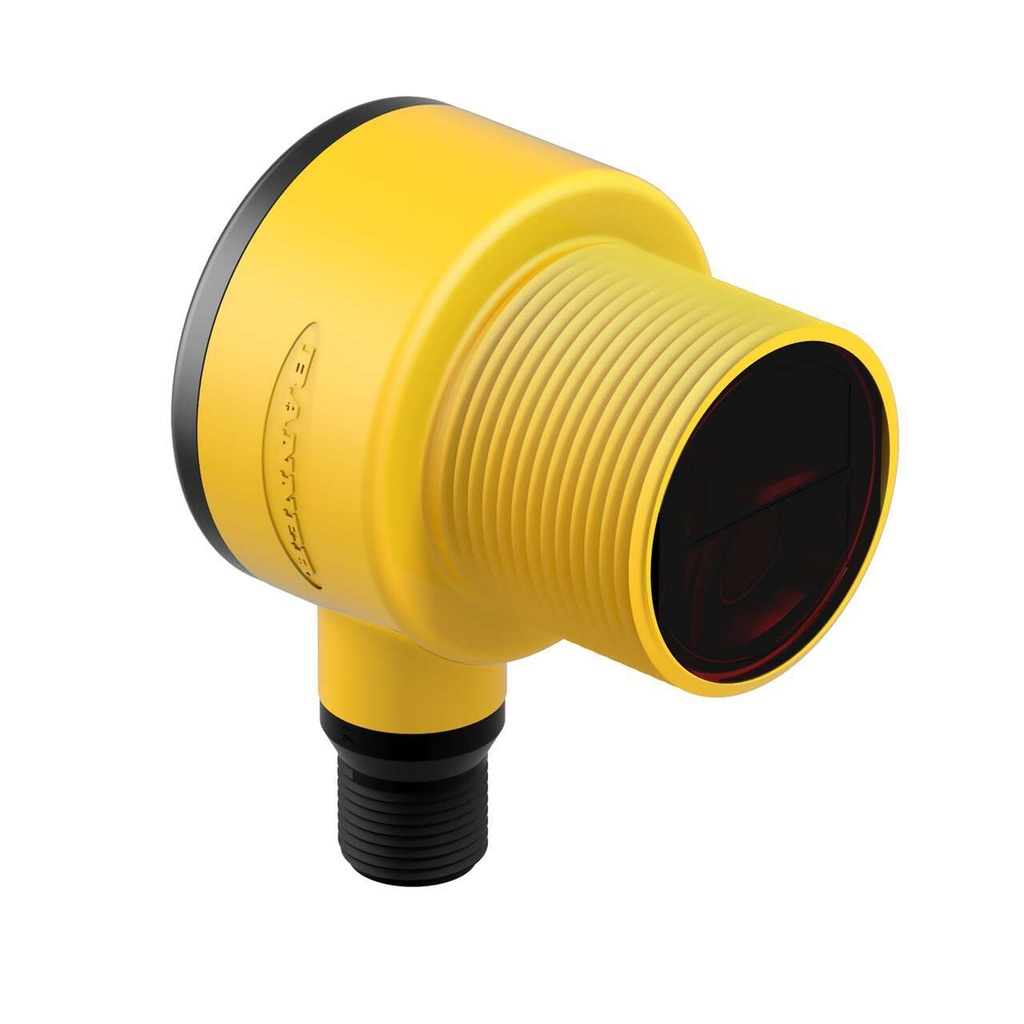

Photo sensor T30SP6FF100Q, fixed field 100 mm, PNP NO/NC, 10-30VDC, M12 4-pin, IP69K

T30SP6FF100Q is a Banner T30 series fixed-field photo sensor with a 100 mm cutoff and an infrared beam, in a right-angle housing with a 30 mm threaded lens. The sensor detects objects up to 100 mm and ignores backgrounds beyond.

• Sensing range: 100 mm cutoff, fixed
• Output: PNP, Light/Dark Operate
• Response: 3 ms; repeatability 750 µs
• Supply: 10-30 V DC
• Housing: right-angle, 30 mm thread, thermoplastic, acrylic lens, encapsulated
• Environment: IP69K, NEMA 4X, -40...+70 °C
• Connection: integral M12 4-pin male connector

There is no sensitivity adjustment.

UL, CE and UKCA approved.
