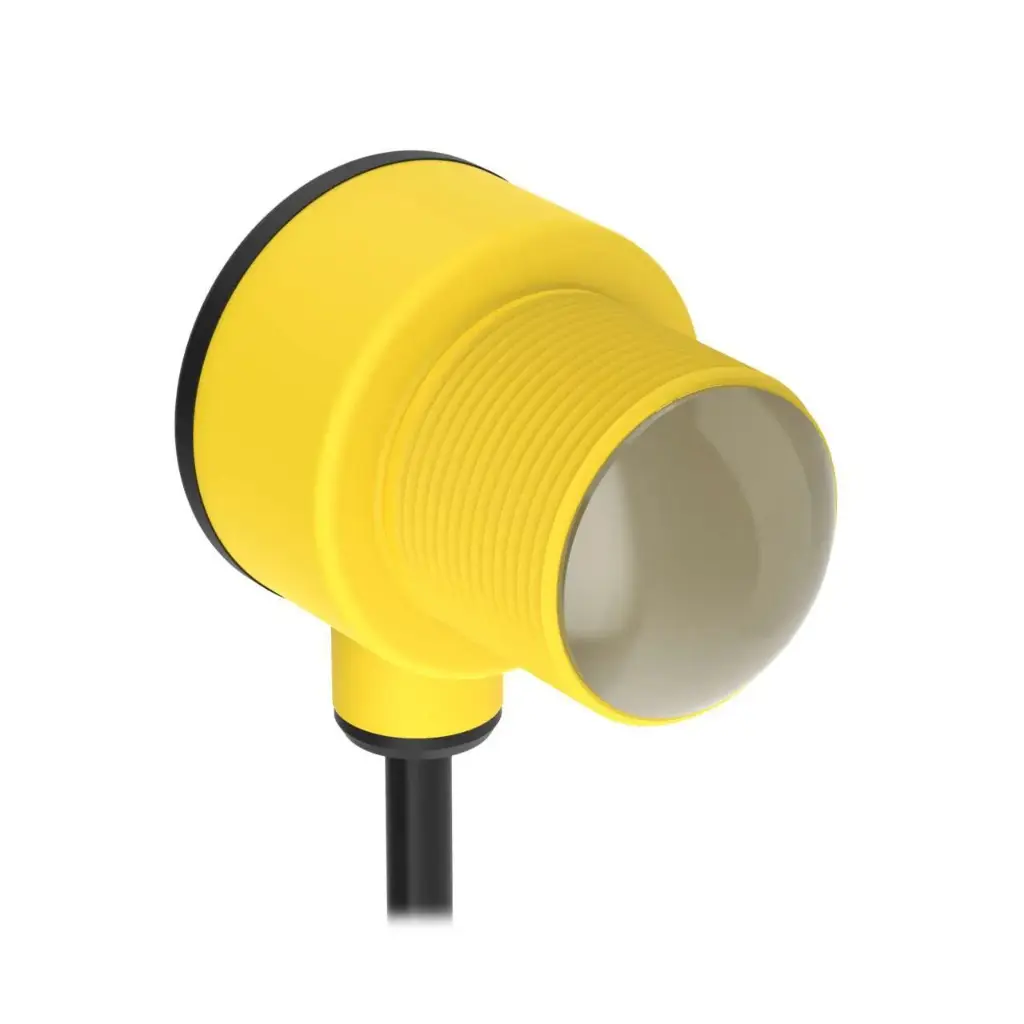

Radar sensor T30R-1515-CKIQP, 0.1...6 m, 4-20mA, PNP/NPN, IO-Link, 15°, M30, 150 mm cable with M12

T30R-1515-CKIQP is a Banner T30R series 122 GHz FMCW radar sensor in an M30 housing with a 15 x 15° beam. It outputs the measured distance as 4-20 mA and has one configurable PNP/NPN discrete output that also carries IO-Link.

• Accuracy: linearity < ±4 mm (RCS 1 m² reference target); repeatability < 1 mm; temperature effect < ±10 mm
• Range: detection 0.1...6 m, measurement 0.1...6 m
• Outputs: analog 4-20 mA (white wire); discrete PNP/NPN or IO-Link push/pull (black wire), 50 mA; analog update 2 ms, discrete response 6 ms
• Supply: 10...30 V DC, < 100 mA at 24 V
• Housing: PBT, M30 x 1.5 thread, COP window
• Environment: IP67, -40...+65 °C
• Connection: 150 mm PUR cable with M12 5-pin male connector

The C version sweeps a wider bandwidth than the standard T30R-1515, giving a smaller dead zone and the same linearity across the whole 0.1...6 m range, for measurement close to the sensor. Settings are made over IO-Link, with Banner Measurement Sensor Configuration Software or with the remote input wire.

Radio approval for this model: US, Canada and Korea only - it is not listed as approved for Europe. Vibration per MIL-STD-202F method 201A, shock per method 213B (75 g operating).
