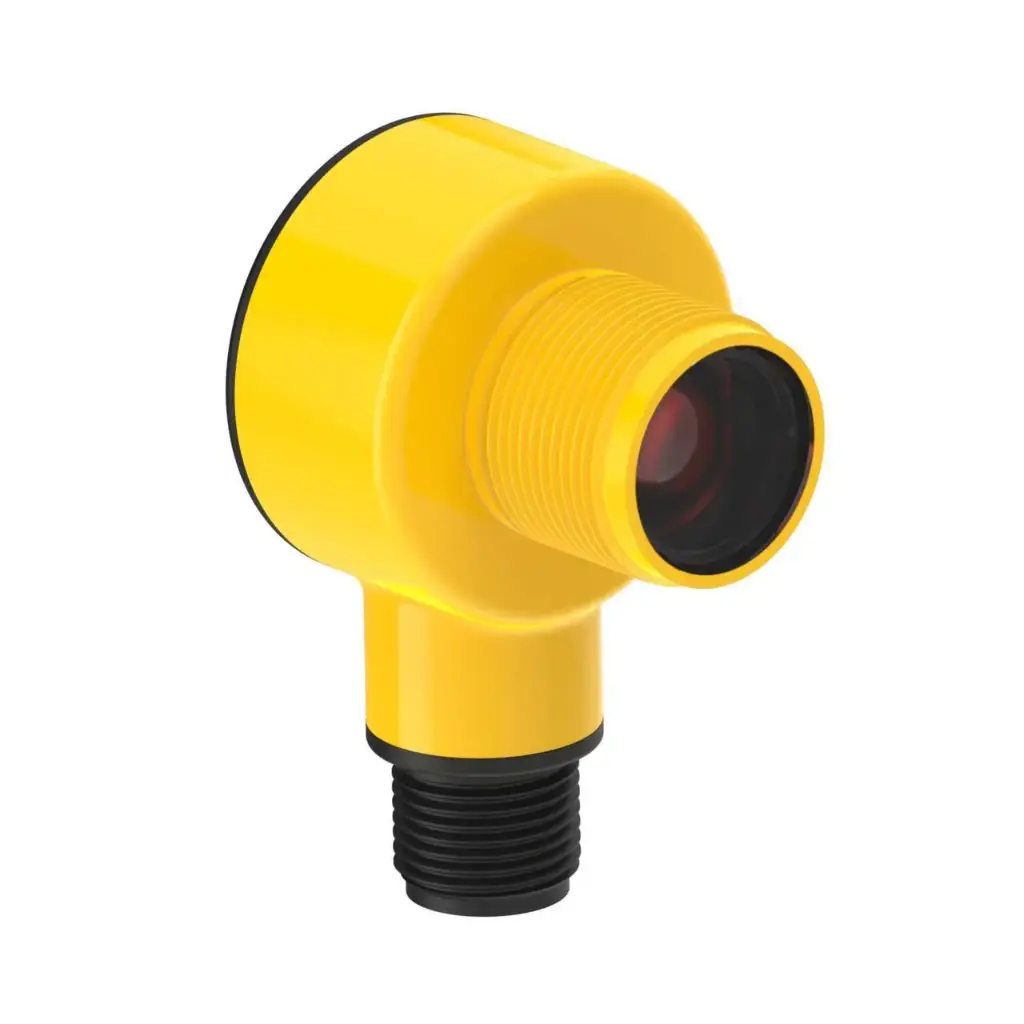

Photo sensor - receiver T18-2VPRL-Q8, opposed 25 m, PNP NO/NC, 10-30VDC, M12 4-pin, IP69K

T18-2VPRL-Q8 is a Banner T18-2 series opposed-mode receiver, used with a T18-2 emitter. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 emitter
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 1 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).
