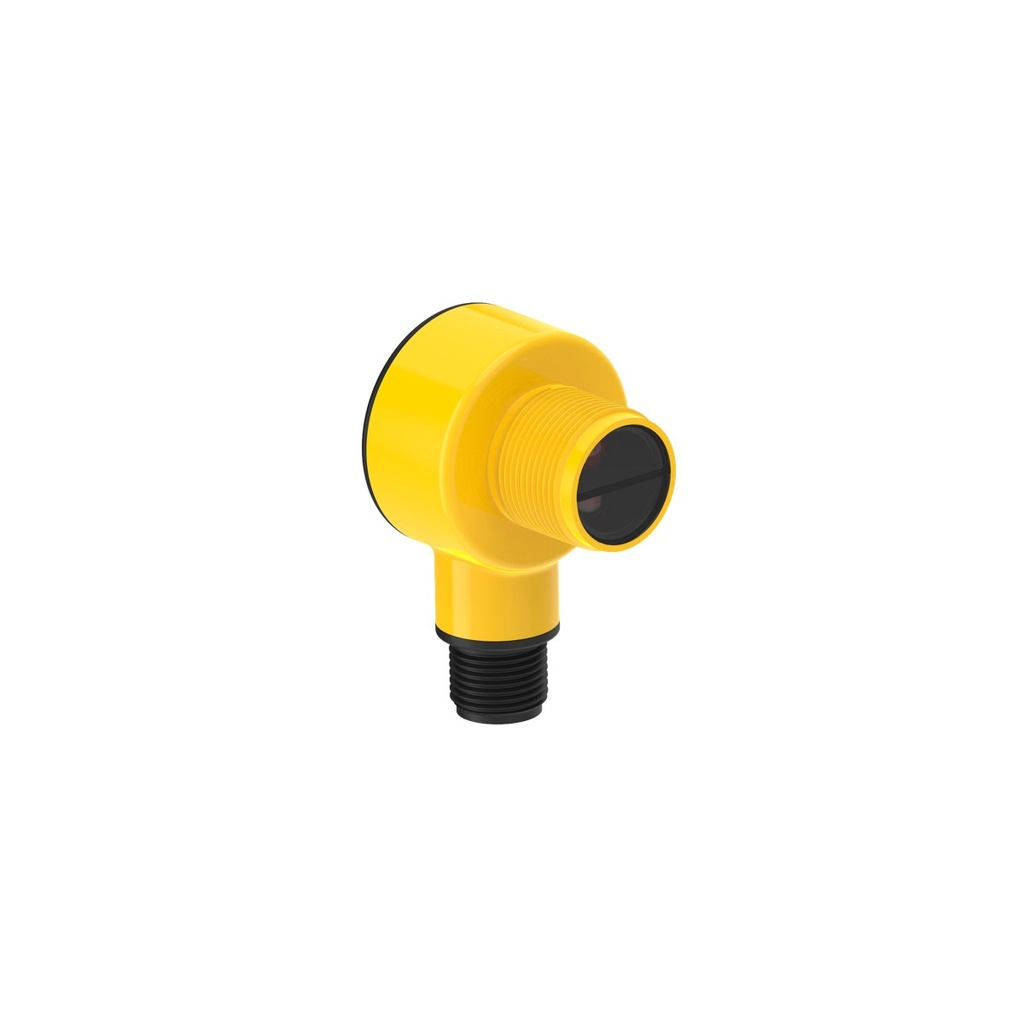

Photo sensor T18-2VPLPC-Q8, polarized retroreflective 6 m, PNP NO/NC, 10-30VDC, M12 4-pin, IP69K

T18-2VPLPC-Q8 is a Banner T18-2 series polarized retroreflective sensor, which works with a reflector and ignores light returned by shiny objects. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas. A single-turn potentiometer sets the sensitivity.

• Sensing range: 6 m with a BRT-84 reflector
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 0.75 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).
