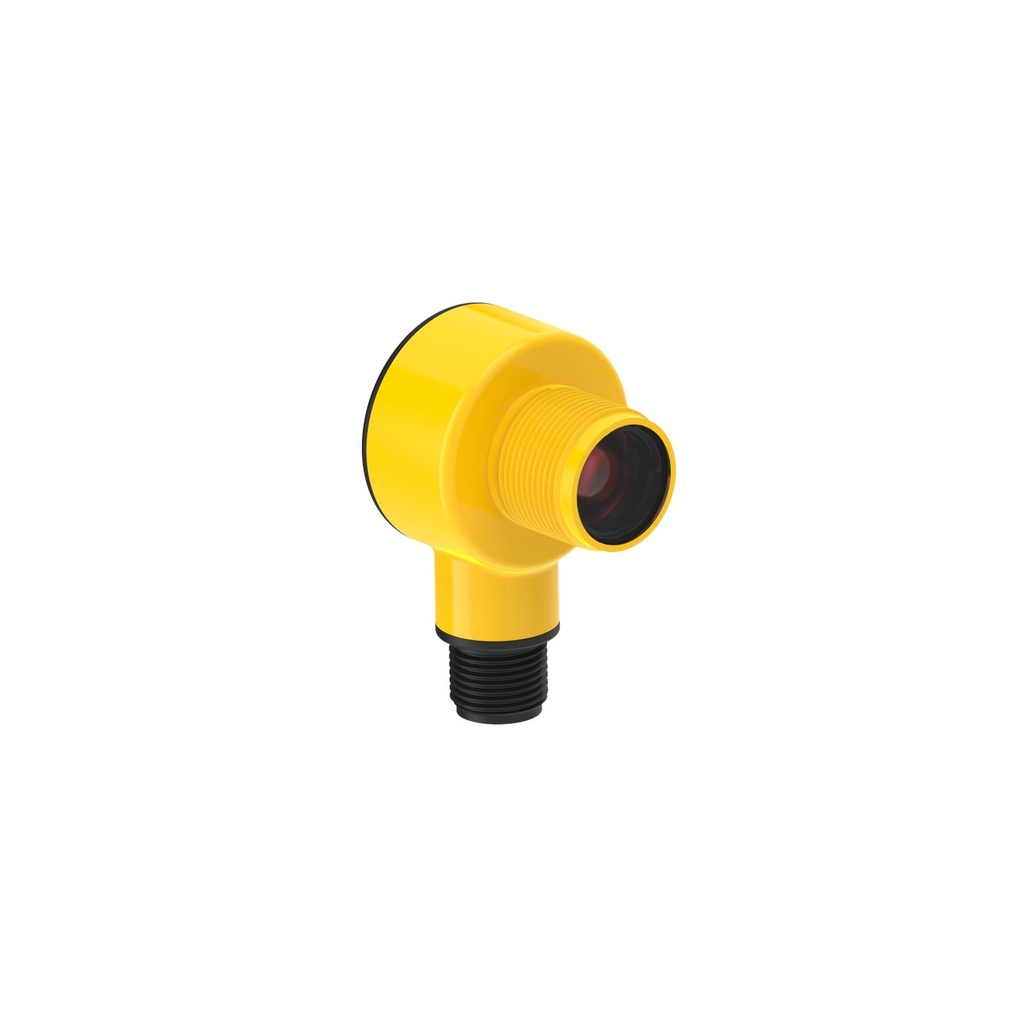

Photo sensor - emitter T18-2NAELIR-Q8, opposed 25 m, IR, 10-30VDC, M12 4-pin, IP69K

T18-2NAELIR-Q8 is a Banner T18-2 series opposed-mode emitter with infrared, 850 nm light, used with a T18-2 receiver. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 receiver
• Light source: infrared, 850 nm LED
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).
