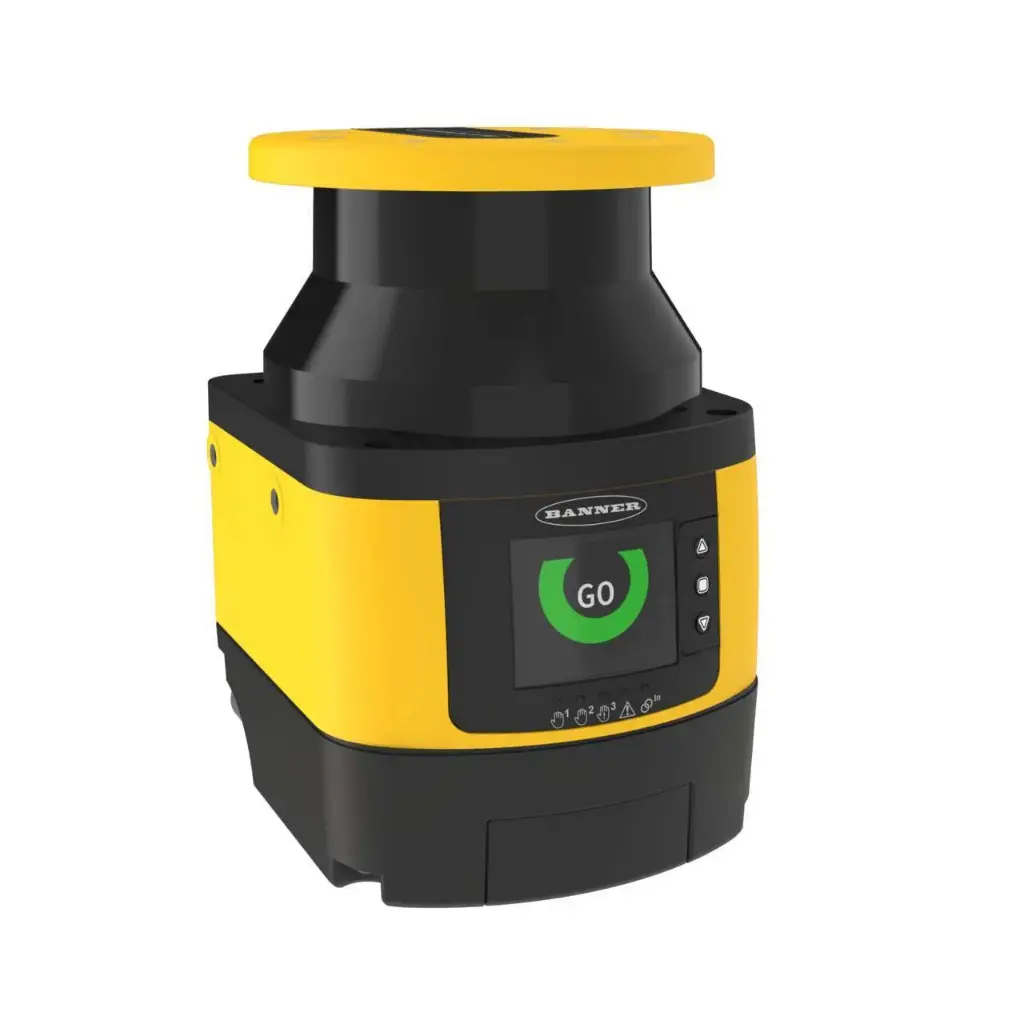

Safety laser scanner SX5-M70, Master, 70 zone sets, 3 OSSD pairs, removable memory, 5.5 m, 275°

SX5-M70 is a Master model of the Banner SX5 Type 3 safety laser scanner, with 3 OSSD pairs and up to 70 zone sets over its 17-pin and 8-pin connections. Remote SX5-R scanners can be added, and the configuration is held in a removable memory.

• Protective field: up to 5.5 m (70/150 mm resolution), 4 m (50 mm), 3 m (40 mm), 2.5 m (30 mm); warning field up to 40 m (90 % white)
• Outputs: 3 OSSD pairs, 250 mA at 24 V DC, push-pull; 2 auxiliary outputs, 250 mA
• Scanning: 275°, angular resolution 0.1°, scan cycle 30 ms, response time programmable 62...1202 ms; 905 nm Class 1 laser
• Connection: I/O and power M12 A-coded 17-pin + 8-pin; Ethernet M12 D-coded 4-pin; M12 8-pin port for remote scanners; removable memory in the system plug
• Supply: 24 V DC (19.2...30 V DC) SELV/PELV, 0.3 A without load
• Housing: aluminium alloy, yellow RAL 1003, replaceable PC window, 102 x 152 x 112.5 mm, 1.5 kg
• Environment: IP65, -10...+50 °C, 95 % RH non-condensing

The scanner is for indoor industrial use only - not outdoors, not through a window or other transparent material, and not where heavy vapour, smoke or dust is in the air. Commissioning needs the Banner SX5 configuration software and the machine interface and M12 Ethernet cables, ordered separately.

Type 3 (EN 61496-1), PL d and Category 3 (EN ISO 13849-1), SIL 2 (IEC 61508), SIL CL 2 (EN 62061), PFHd 6.38 × 10-8. CE and cULus.
