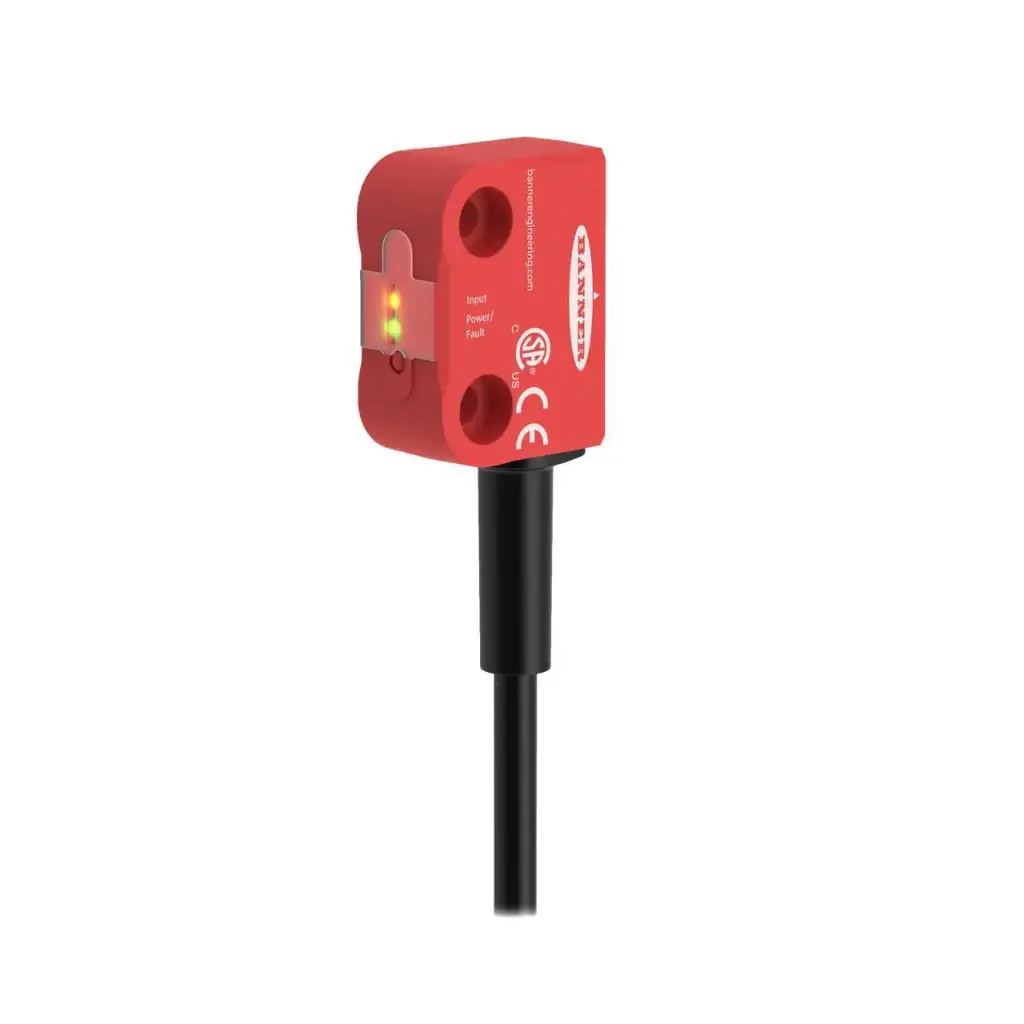

SI-RFPT-HP5 is a Banner SI-RF non-contact RFID safety switch with high coding: it accepts only the last actuator taught in, and a new actuator can be taught up to 12 times. Two OSSD safety outputs and a PNP auxiliary output for door status are brought out on a 250 mm cable with an M12 5-pin connector.

• Sensing distance with SI-RF-A: Sao 10 mm, Sar 25 mm, Sn 13 mm, hysteresis 2 mm
• Outputs: 2 OSSD PNP NO, 100 mA, DC-13; auxiliary PNP output 10 mA
• Supply: 24 V DC +25/-20 %, ≤ 50 mA without load; switch-off delay max. 100 ms
• Housing: PA66 + PA6, red, 36 x 26 x 15 mm, two holes for M4 screws
• Connection: 250 mm black PUR cable, M12 5-pin connector, nickel-plated brass
• Environment: IP69, -25...+70 °C, 93 % RH at +40 °C non-condensing

To teach a new actuator, hold it in front of the switch, power the switch for at least 5 s, remove power, and power it again for at least 5 s. The SI-RF-A actuator is ordered separately.

PL e and Category 4 (EN ISO 13849-1), SIL CL 3 (EN 62061), PFHd 6 × 10-9 1/h. TÜV Nord, cCSAus.

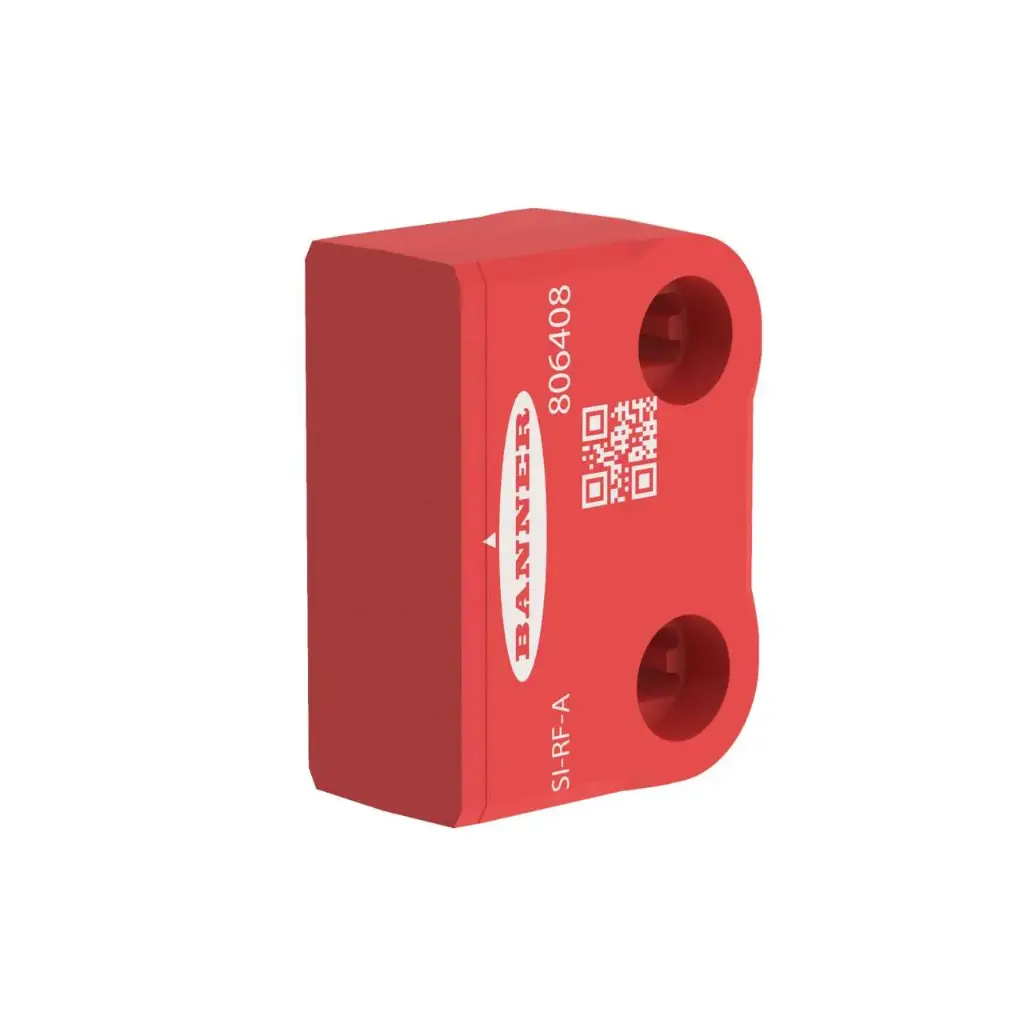

SI-RF-A is the standard coded RFID actuator for Banner SI-RF safety switches. Its safety code is fixed and cannot be changed; the switch stores it during teach-in.

• Fits: SI-RF series safety switches
• Sensing distance with SI-RF: Sao 10 mm, Sar 25 mm, Sn 13 mm, hysteresis 2 mm
• Housing: thermoplastic, 36 x 26 x 15 mm
• Environment: IP69, -25...+70 °C

SGSA-MBK-10-4 is a set of four Banner clamp brackets for mounting SGS Safety Grid System emitters and receivers. Each bracket has a Ø 43 mm ring clamp closed with an M5 stud and a base with slotted holes.

• Fits: SGS Safety Grid System
• Clamp: Ø 43 mm ring, FH-M5x18 stud
• Dimensions: base 56 x 41 mm, height 89 mm, clamp centre 53 mm above the base
• Mounting: 6.8 mm slotted holes, 36 mm spacing
• Included: 4 brackets

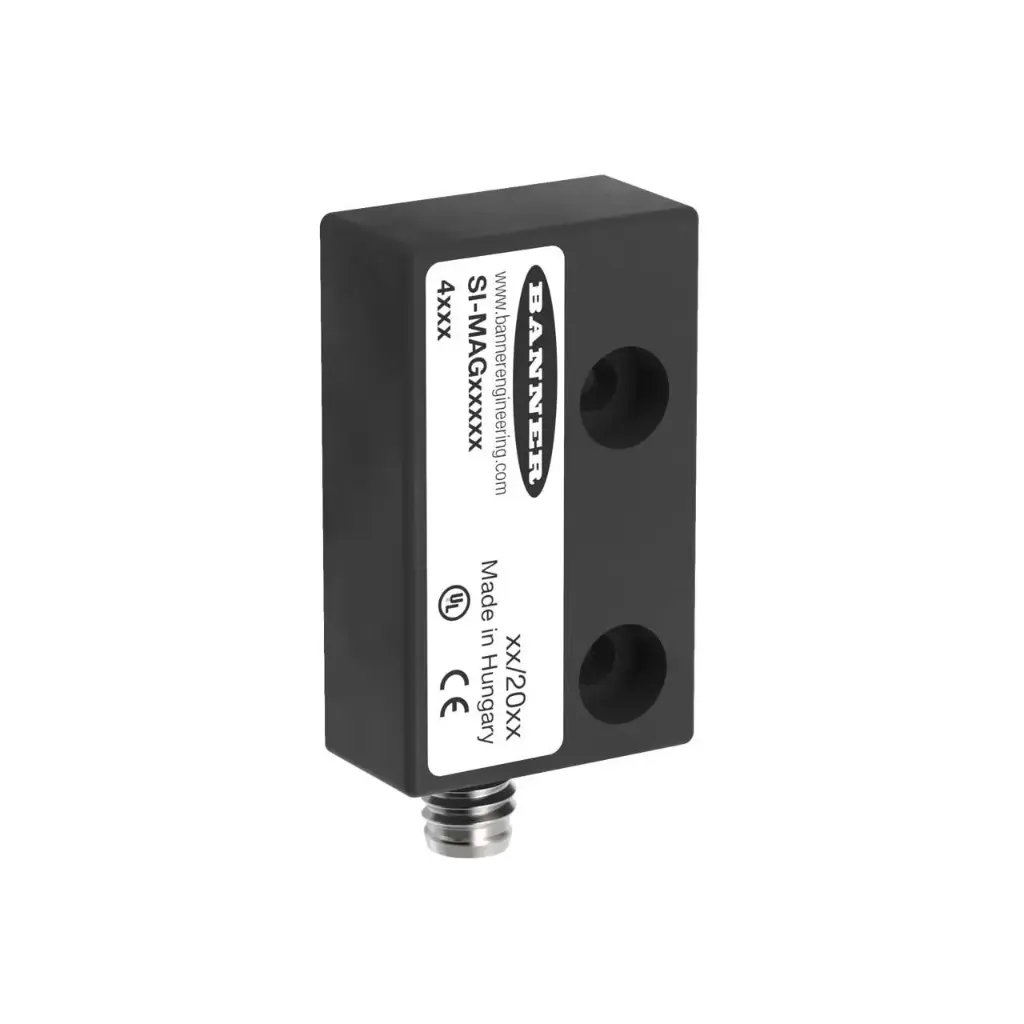

SI-MAGB2SMQD is the sensor half of a Banner SI-MAG coded magnetic safety switch: three reed contacts in an epoxy-encapsulated PA 6 housing switch when the SI-MAGB2MM coded magnet comes within 3...14 mm. Monitored by a suitable safety module, one switch and magnet pair can reach Category 4, PL e or SIL CL 3.

• Switching: 3 reed contacts, max. 30 V DC / 60 V AC, 0.08 A, 0.25 VA
• Switching distance: 3...14 mm with SI-MAGB2MM; repeat accuracy 0.1 × switching distance
• Housing: polyamide PA 6, epoxy-encapsulated, 43 x 26 mm
• Connection: M8 4-pin connector
• Environment: IP67, -25...+70 °C (below -5 °C the cable must be fixed)
• Life: B10d 20 million cycles at 20 % load; mechanical 3 × 10^8 cycles; max. 1 Hz

A working system also needs the SI-MAGB2MM coded magnet, an M8 cordset and a safety monitoring device, all ordered separately.

CE and UKCA. Safety data per ISO 13849-1, mission time 20 years.

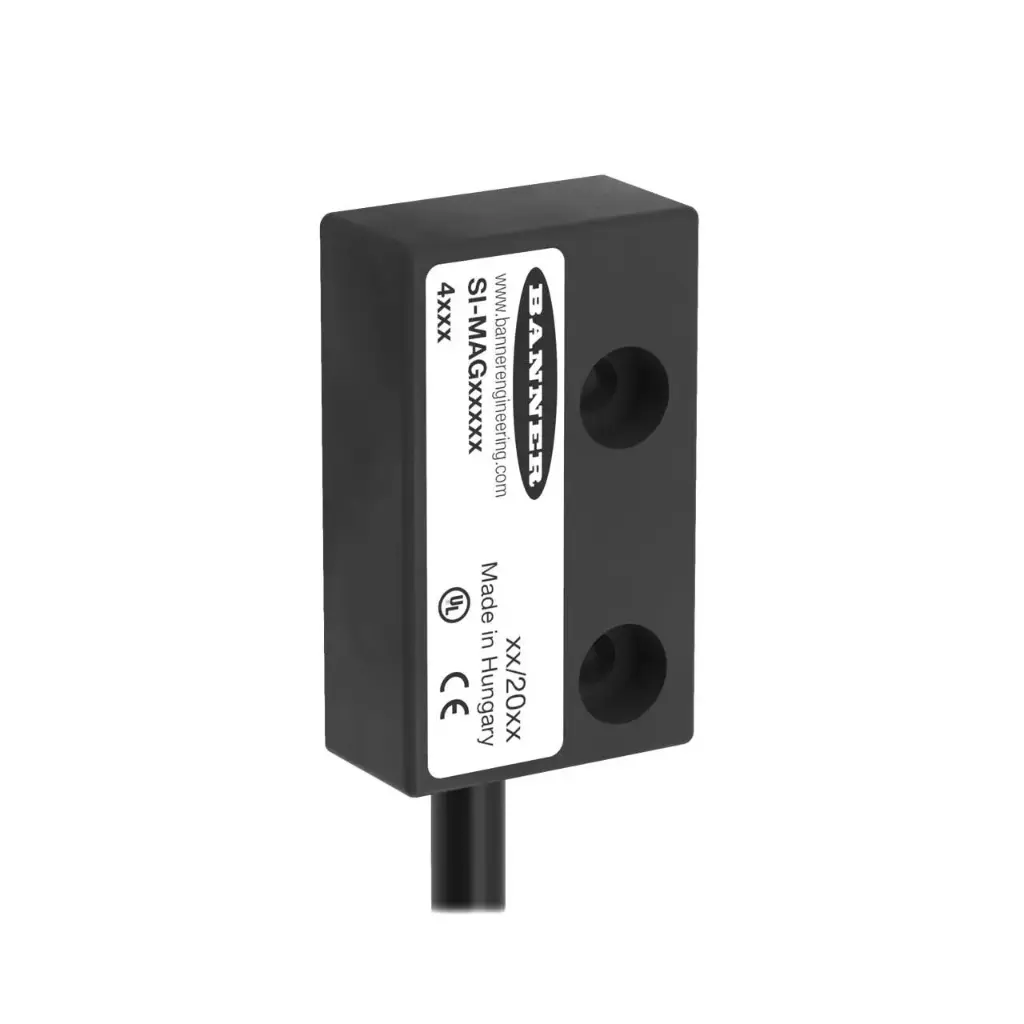

SI-MAGB2SM is the sensor half of a Banner SI-MAG coded magnetic safety switch: three reed contacts in an epoxy-encapsulated PA 6 housing switch when the SI-MAGB2MM coded magnet comes within 3...14 mm. Monitored by a suitable safety module, one switch and magnet pair can reach Category 4, PL e or SIL CL 3.

• Switching: 3 reed contacts, max. 30 V DC / 60 V AC, 0.08 A, 0.25 VA
• Switching distance: 3...14 mm with SI-MAGB2MM; repeat accuracy 0.1 × switching distance
• Housing: polyamide PA 6, epoxy-encapsulated, 43 x 26 mm
• Connection: 3 m PVC cable, 4 x 26 AWG, flying leads
• Environment: IP67, -25...+70 °C (below -5 °C the cable must be fixed)
• Life: B10d 20 million cycles at 20 % load; mechanical 3 × 10^8 cycles; max. 1 Hz

A working system also needs the SI-MAGB2MM coded magnet and a safety monitoring device, both ordered separately.

CE and UKCA. Safety data per ISO 13849-1, mission time 20 years.

EZLSA-MBK-16 is a Banner side-mount bracket for EZ-SCREEN LS safety light curtains, in black zinc die-cast, supplied as one bracket with hardware. The clamp turns 35° in total (+15°/-20°) for aligning the emitter and receiver.

• Fits: EZ-SCREEN LS safety light curtains
• Material: black zinc die-cast
• Dimensions: 74 x 55 mm, height 55 mm; 6.5 mm mounting holes, 58 mm spacing
• Tightening torque: M4 screws, max. 1.7 Nm and 2.3 Nm
• Included: 1 bracket with hardware

SR-IM-9A is a Banner interface module with three 6 A safety output channels. Each NO channel is built from contacts of two force-guided relays in series, and the NC feedback contacts Y1-Y4 go to the EDM input of the light curtain or safety module that drives it - that is how the combination reaches Category 4 and PL e.

• Outputs: 3 NO safety channels, 6 A each; max. 250 V AC / 24 V DC
• Switching capacity: AC-15 250 V AC 3 A; DC-13 24 V DC 2 A; contacts AgNi + 0.2 µm gold
• Input: 24 V DC ±15 %, no polarity, 50 mA per channel, from OSSD or hard-contact outputs
• Response and life: 20 ms max.; mechanical 20 million operations; electrical 1,000,000 cycles at 450 VA
• Housing: polycarbonate, 22.5 mm wide, 35 mm DIN rail, push-in spring clamp terminals 0.2...2.08 mm²
• Environment: IP20 (install in an IP54 enclosure), 0...+50 °C, 90 % RH at +50 °C

For inductive loads, fit suppressors across the load, never across the output contacts. Each spring clamp terminal takes one wire only.

Up to SIL 3 (IEC 61508, IEC 62061), Category 4 and PL e (EN ISO 13849-1) with EDM; PFHd 2.1 × 10-10. CE, UKCA, UL.

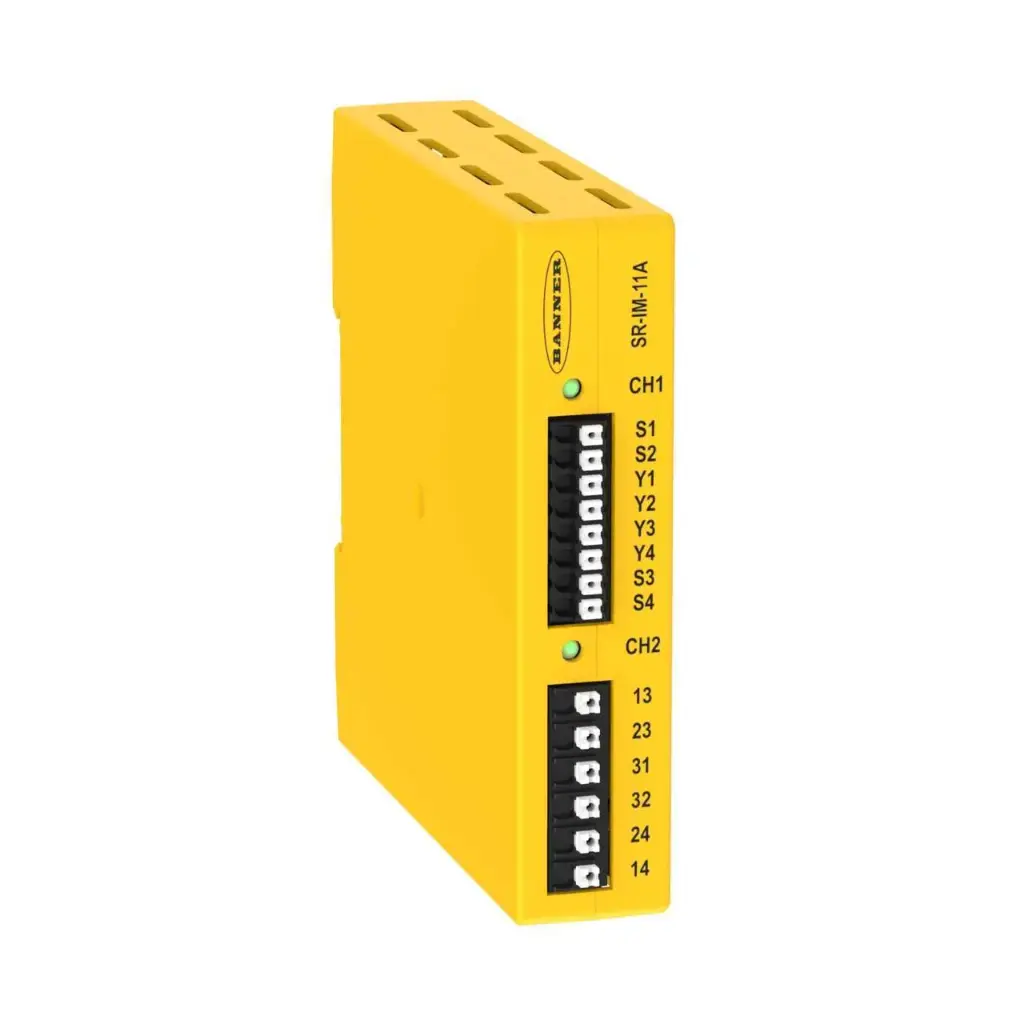

SR-IM-11A is a Banner interface module with two 6 A safety output channels and one 6 A NC auxiliary channel. Each NO channel is built from contacts of two force-guided relays in series, and the NC feedback contacts Y1-Y4 go to the EDM input of the light curtain or safety module that drives it - that is how the combination reaches Category 4 and PL e.

• Outputs: 2 NO safety channels + 1 NC auxiliary channel, 6 A each; max. 250 V AC / 24 V DC
• Switching capacity: AC-15 NO 250 V AC 3 A, NC 250 V AC 2 A; DC-13 24 V DC 2 A; contacts AgNi + 0.2 µm gold
• Input: 24 V DC ±15 %, no polarity, 50 mA per channel, from OSSD or hard-contact outputs
• Response and life: 20 ms max.; mechanical 20 million operations; electrical 1,000,000 cycles at 450 VA
• Housing: polycarbonate, 22.5 mm wide, 35 mm DIN rail, push-in spring clamp terminals 0.2...2.08 mm²
• Environment: IP20 (install in an IP54 enclosure), 0...+50 °C, 90 % RH at +50 °C

For inductive loads, fit suppressors across the load, never across the output contacts. Each spring clamp terminal takes one wire only.

Up to SIL 3 (IEC 61508, IEC 62061), Category 4 and PL e (EN ISO 13849-1) with EDM; PFHd 2.1 × 10-10. CE, UKCA, UL.

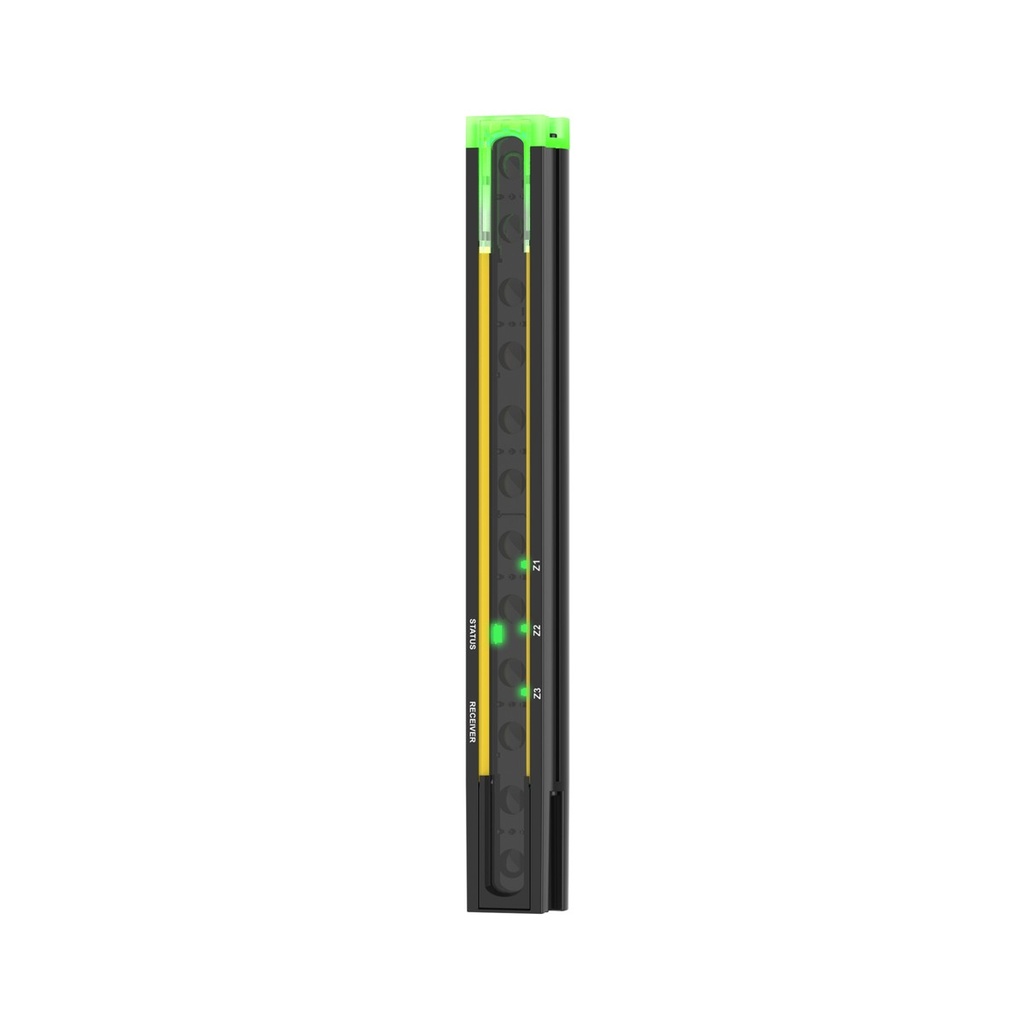

S4BR30-300-S is the receiver of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 30 mm resolution (hand detection). When any beam is interrupted, both OSSD safety outputs switch off; the lighted end cap shows clear, weak beam, blocked beam or fault from a distance.

• Defined area: 300 mm; resolution 30 mm; response time 7.5 ms
• Operating range: 0.1...12 m
• Outputs: two redundant PNP OSSD safety outputs, 24 V DC, max 0.5 A each; configurable pin for weak beam output or IO-Link (COM2)
• Supply: +24 V DC ±15 %, 96 mA typical without load
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; 5-pin or 8-pin RD cordset with M12 ordered separately

With the 8-pin RD cordset the receiver monitors the contactors itself (EDM) and needs no external safety module; with the 5-pin cordset it is wired to a safety relay, safety controller or safety PLC. Reduced resolution can be switched on to ignore one blocked beam, and up to four pairs can be cascaded.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).

S4BE30-300-S is the emitter of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 30 mm resolution (hand detection). It projects a row of synchronised, modulated infrared beams (860 nm) from end to end of the housing, so there is no dead zone at either end.

• Defined area: 300 mm; resolution 30 mm; system response time 7.5 ms
• Operating range: 0.1...12 m
• Indicators: bi-colour status indicator, two tri-colour scan code indicators
• Supply: +24 V DC ±15 %, 33 mA typical
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; RD cordset with M12 ordered separately

The emitter works only as a pair with an S4B receiver of the same length and resolution. The scan code (1 or 2) is set with switches in the RD cordset, so that two pairs mounted close to each other do not interfere.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).

S4BA-MBK-11 is an end mount bracket kit for Banner EZ-SCREEN S4B safety light curtains: two L-brackets with a glass-filled polycarbonate adapter that lets the sensor rotate ±15°.

• Fits: S4B emitters and receivers with FID 3 or older
• Included: 2 brackets and mounting hardware
• Material: 8-gauge cold-rolled steel, black zinc finish; glass-filled polycarbonate adapter
• Adjustment: ±15° rotation

Not for FID 4 and later S4B units (the models with the lighted end cap). Light curtains longer than 900 mm also need a side mount bracket.

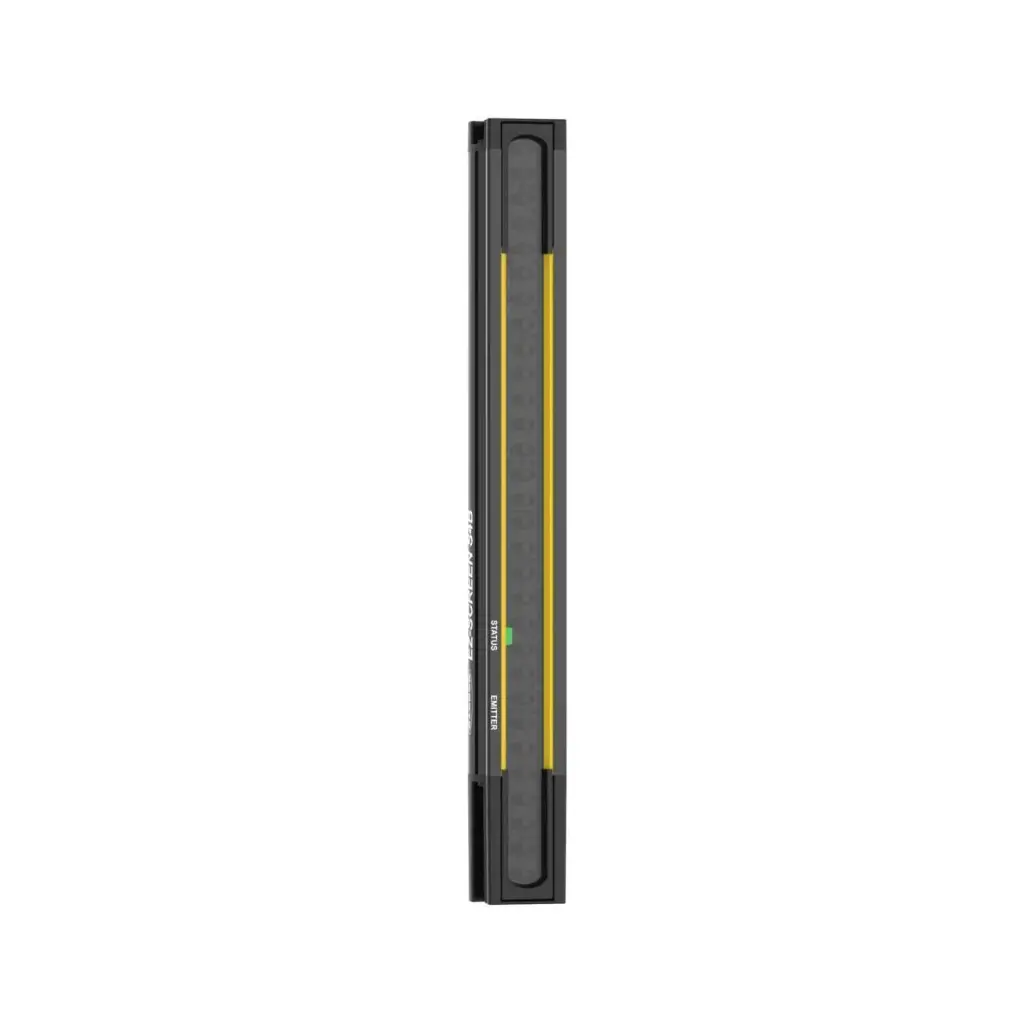

S4BE14-300-S is the emitter of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 14 mm resolution (finger detection). It projects a row of synchronised, modulated infrared beams (860 nm) from end to end of the housing, so there is no dead zone at either end.

• Defined area: 300 mm; resolution 14 mm; system response time 11.5 ms
• Operating range: 0.1...12 m
• Indicators: bi-colour status indicator, two tri-colour scan code indicators
• Supply: +24 V DC ±15 %, 33 mA typical
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; RD cordset with M12 ordered separately

The emitter works only as a pair with an S4B receiver of the same length and resolution. The scan code (1 or 2) is set with switches in the RD cordset, so that two pairs mounted close to each other do not interfere.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 289 years, PFHd 3.05 × 10⁻⁹ (single pair).

S4BR14-300-S is the receiver of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 14 mm resolution (finger detection). When any beam is interrupted, both OSSD safety outputs switch off; the lighted end cap shows clear, weak beam, blocked beam or fault from a distance.

• Defined area: 300 mm; resolution 14 mm; response time 11.5 ms
• Operating range: 0.1...12 m
• Outputs: two redundant PNP OSSD safety outputs, 24 V DC, max 0.5 A each; configurable pin for weak beam output or IO-Link (COM2)
• Supply: +24 V DC ±15 %, 96 mA typical without load
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; 5-pin or 8-pin RD cordset with M12 ordered separately

With the 8-pin RD cordset the receiver monitors the contactors itself (EDM) and needs no external safety module; with the 5-pin cordset it is wired to a safety relay, safety controller or safety PLC. Reduced resolution can be switched on to ignore one blocked beam, and up to four pairs can be cascaded.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 289 years, PFHd 3.05 × 10⁻⁹ (single pair).

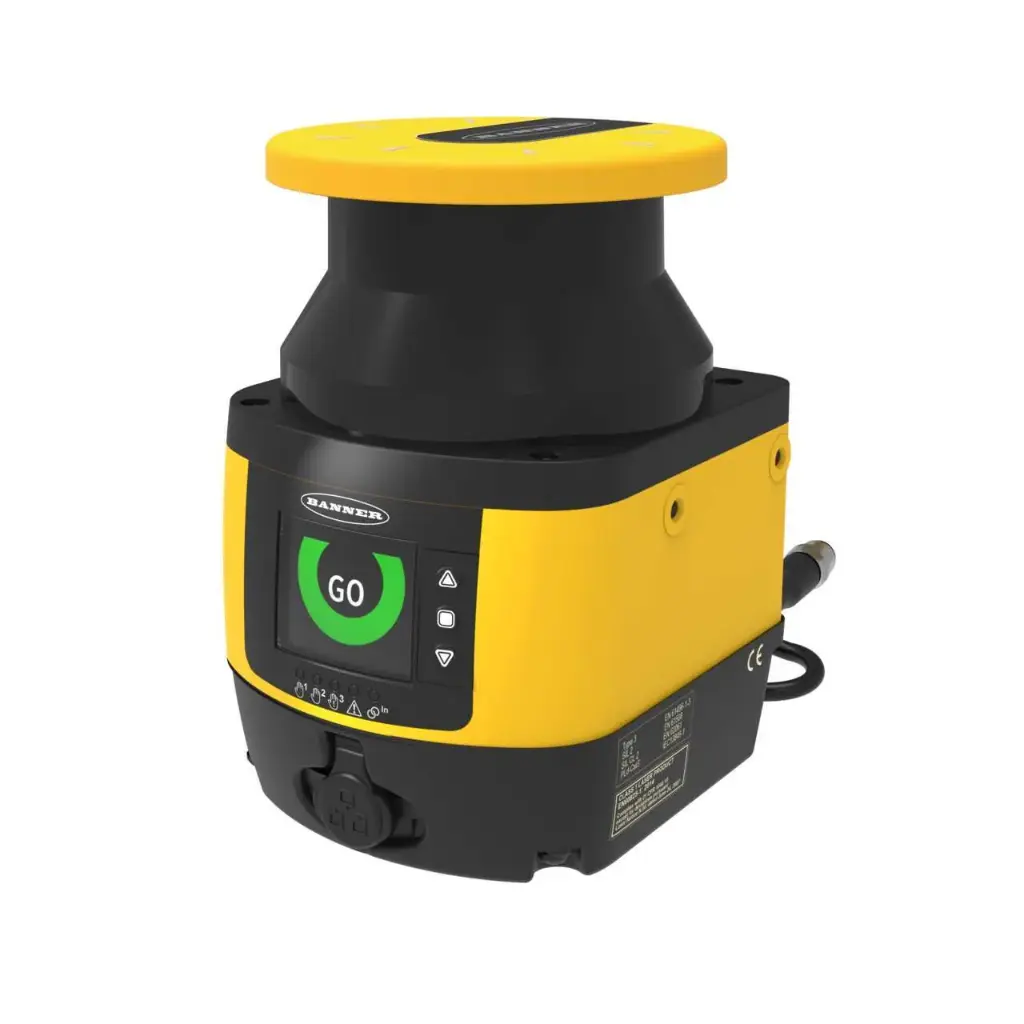

SX5-B6 is the stand-alone model of the Banner SX5 Type 3 safety laser scanner, with its own OSSD pair and 6 switchable zone sets. Protective fields reach 5.5 m and warning fields 40 m over a 275° scan.

• Protective field: up to 5.5 m (70/150 mm resolution), 4 m (50 mm), 3 m (40 mm), 2.5 m (30 mm); warning field up to 40 m (90 % white)
• Outputs: 1 OSSD pair, 250 mA at 24 V DC, push-pull; 2 auxiliary outputs, 250 mA
• Scanning: 275°, angular resolution 0.1°, scan cycle 30 ms, response time programmable 62...1202 ms; 905 nm Class 1 laser
• Connection: I/O and power M12 A-coded 8-pin; Ethernet M12 D-coded 4-pin for the configuration software
• Supply: 24 V DC (19.2...30 V DC) SELV/PELV, 0.3 A without load
• Housing: aluminium alloy, yellow RAL 1003, replaceable PC window, 102 x 152 x 112.5 mm, 1.5 kg
• Environment: IP65, -10...+50 °C, 95 % RH non-condensing

The scanner is for indoor industrial use only - not outdoors, not through a window or other transparent material, and not where heavy vapour, smoke or dust is in the air. Commissioning needs the Banner SX5 configuration software and the machine interface and M12 Ethernet cables, ordered separately.

Type 3 (EN 61496-1), PL d and Category 3 (EN ISO 13849-1), SIL 2 (IEC 61508), SIL CL 2 (EN 62061), PFHd 6.38 × 10-8. CE and cULus.

SX5-M10 is a Master model of the Banner SX5 Type 3 safety laser scanner, with 2 OSSD pairs and up to 10 zone sets (12-pin connection). Remote SX5-R scanners can be added, and the configuration is held in a removable memory.

• Protective field: up to 5.5 m (70/150 mm resolution), 4 m (50 mm), 3 m (40 mm), 2.5 m (30 mm); warning field up to 40 m (90 % white)
• Outputs: 2 OSSD pairs, 250 mA at 24 V DC, push-pull; 2 auxiliary outputs, 250 mA
• Scanning: 275°, angular resolution 0.1°, scan cycle 30 ms, response time programmable 62...1202 ms; 905 nm Class 1 laser
• Connection: I/O and power M12 A-coded 12-pin or 8-pin; Ethernet M12 D-coded 4-pin; M12 8-pin port for remote scanners; removable memory in the system plug
• Supply: 24 V DC (19.2...30 V DC) SELV/PELV, 0.3 A without load
• Housing: aluminium alloy, yellow RAL 1003, replaceable PC window, 102 x 152 x 112.5 mm, 1.5 kg
• Environment: IP65, -10...+50 °C, 95 % RH non-condensing

The scanner is for indoor industrial use only - not outdoors, not through a window or other transparent material, and not where heavy vapour, smoke or dust is in the air. Commissioning needs the Banner SX5 configuration software and the machine interface and M12 Ethernet cables, ordered separately.

Type 3 (EN 61496-1), PL d and Category 3 (EN ISO 13849-1), SIL 2 (IEC 61508), SIL CL 2 (EN 62061), PFHd 6.38 × 10-8. CE and cULus.

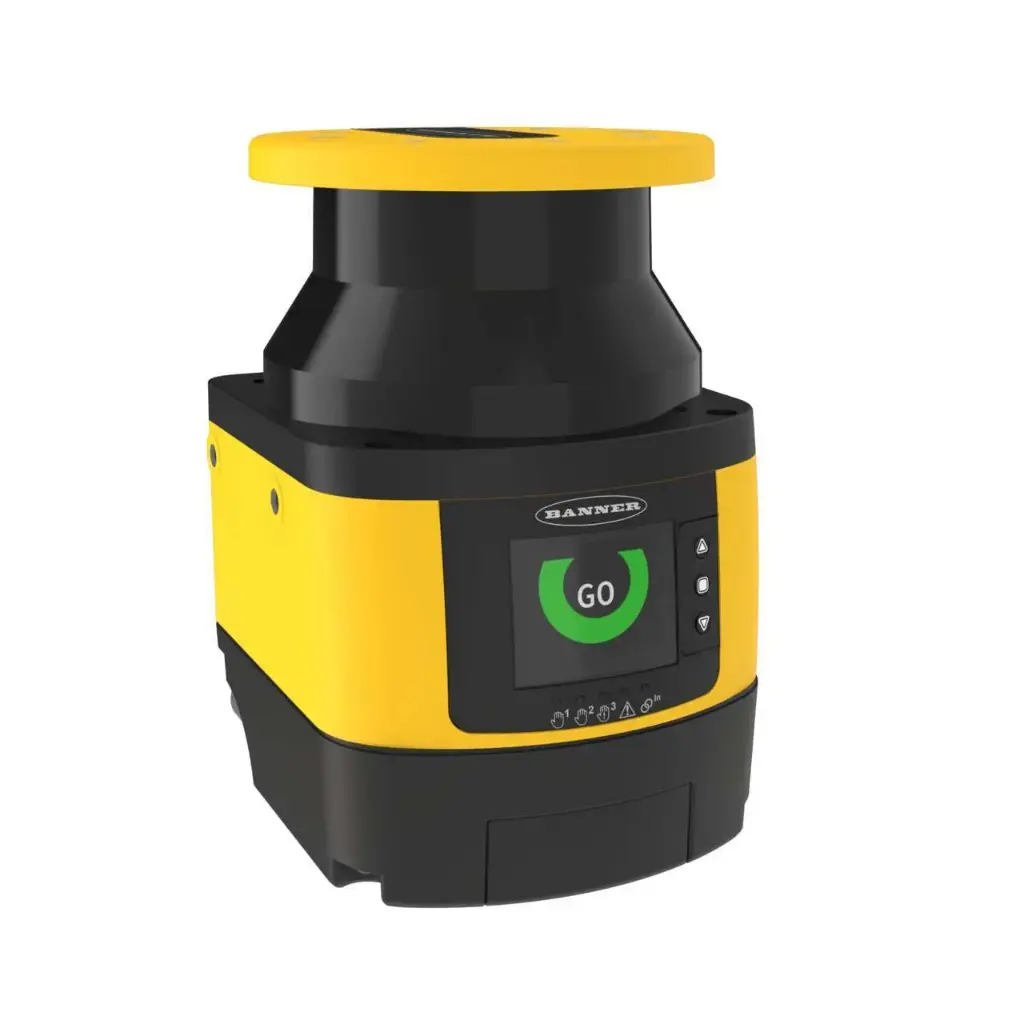

SX5-M70 is a Master model of the Banner SX5 Type 3 safety laser scanner, with 3 OSSD pairs and up to 70 zone sets over its 17-pin and 8-pin connections. Remote SX5-R scanners can be added, and the configuration is held in a removable memory.

• Protective field: up to 5.5 m (70/150 mm resolution), 4 m (50 mm), 3 m (40 mm), 2.5 m (30 mm); warning field up to 40 m (90 % white)
• Outputs: 3 OSSD pairs, 250 mA at 24 V DC, push-pull; 2 auxiliary outputs, 250 mA
• Scanning: 275°, angular resolution 0.1°, scan cycle 30 ms, response time programmable 62...1202 ms; 905 nm Class 1 laser
• Connection: I/O and power M12 A-coded 17-pin + 8-pin; Ethernet M12 D-coded 4-pin; M12 8-pin port for remote scanners; removable memory in the system plug
• Supply: 24 V DC (19.2...30 V DC) SELV/PELV, 0.3 A without load
• Housing: aluminium alloy, yellow RAL 1003, replaceable PC window, 102 x 152 x 112.5 mm, 1.5 kg
• Environment: IP65, -10...+50 °C, 95 % RH non-condensing

The scanner is for indoor industrial use only - not outdoors, not through a window or other transparent material, and not where heavy vapour, smoke or dust is in the air. Commissioning needs the Banner SX5 configuration software and the machine interface and M12 Ethernet cables, ordered separately.

Type 3 (EN 61496-1), PL d and Category 3 (EN ISO 13849-1), SIL 2 (IEC 61508), SIL CL 2 (EN 62061), PFHd 6.38 × 10-8. CE and cULus.

SX5-ME70 is the Master model of the Banner SX5 Type 3 safety laser scanner with encoder inputs, so zone sets on an AGV can be selected by its speed, measured by two independent encoders. It has 3 OSSD pairs, up to 70 zone sets and a removable configuration memory.

• Protective field: up to 5.5 m (70/150 mm resolution), 4 m (50 mm), 3 m (40 mm), 2.5 m (30 mm); warning field up to 40 m (90 % white)
• Outputs: 3 OSSD pairs, 250 mA at 24 V DC, push-pull; 2 auxiliary outputs, 250 mA
• Scanning: 275°, angular resolution 0.1°, scan cycle 30 ms, response time programmable 62...1202 ms; 905 nm Class 1 laser
• Connection: I/O and power M12 A-coded 17-pin + 8-pin; Ethernet M12 D-coded 4-pin; M12 8-pin port for remote scanners; removable memory in the system plug
• Supply: 24 V DC (19.2...30 V DC) SELV/PELV, 0.3 A without load
• Housing: aluminium alloy, yellow RAL 1003, replaceable PC window, 102 x 152 x 112.5 mm, 1.5 kg
• Environment: IP65, -10...+50 °C, 95 % RH non-condensing

The scanner is for indoor industrial use only - not outdoors, not through a window or other transparent material, and not where heavy vapour, smoke or dust is in the air. Commissioning needs the Banner SX5 configuration software and the machine interface and M12 Ethernet cables, ordered separately.

Type 3 (EN 61496-1), PL d and Category 3 (EN ISO 13849-1), SIL 2 (IEC 61508), SIL CL 2 (EN 62061), PFHd 6.38 × 10-8. CE and cULus.

SX5-R is the Remote model of the Banner SX5 Type 3 safety laser scanner. It has no safety outputs of its own: it connects to an SX5 Master over an 8-pin M12 cable and switches the Master's OSSDs.

• Protective field: up to 5.5 m (70/150 mm resolution), 4 m (50 mm), 3 m (40 mm), 2.5 m (30 mm); warning field up to 40 m (90 % white)
• Outputs: none of its own - uses the OSSD pairs of the SX5 Master; each Remote adds 10 ms to the response time
• Scanning: 275°, angular resolution 0.1°, scan cycle 30 ms, response time programmable 62...1202 ms; 905 nm Class 1 laser
• Connection: M12 A-coded 8-pin to the Master or the next Remote
• Supply: 24 V DC (19.2...30 V DC) SELV/PELV, 0.3 A without load
• Housing: aluminium alloy, yellow RAL 1003, replaceable PC window, 102 x 152 x 112.5 mm, 1.5 kg
• Environment: IP65, -10...+50 °C, 95 % RH non-condensing

It works only with an SX5-M10, SX5-M70 or SX5-ME70 Master, ordered separately. The scanner is for indoor industrial use only - not outdoors, not through a window or other transparent material, and not where heavy vapour, smoke or dust is in the air.

Type 3 (EN 61496-1), PL d and Category 3 (EN ISO 13849-1), SIL 2 (IEC 61508), SIL CL 2 (EN 62061), PFHd 6.38 × 10-8. CE and cULus.

S4BE30-600-S is the emitter of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 600 mm defined area and 30 mm resolution (hand detection). It projects a row of synchronised, modulated infrared beams (860 nm) from end to end of the housing, so there is no dead zone at either end.

• Defined area: 600 mm; resolution 30 mm; system response time 10.0 ms
• Operating range: 0.1...12 m
• Indicators: bi-colour status indicator, two tri-colour scan code indicators
• Supply: +24 V DC ±15 %, 33 mA typical
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; RD cordset with M12 ordered separately

The emitter works only as a pair with an S4B receiver of the same length and resolution. The scan code (1 or 2) is set with switches in the RD cordset, so that two pairs mounted close to each other do not interfere.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).

S4BR30-600-S is the receiver of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 600 mm defined area and 30 mm resolution (hand detection). When any beam is interrupted, both OSSD safety outputs switch off; the lighted end cap shows clear, weak beam, blocked beam or fault from a distance.

• Defined area: 600 mm; resolution 30 mm; response time 10.0 ms
• Operating range: 0.1...12 m
• Outputs: two redundant PNP OSSD safety outputs, 24 V DC, max 0.5 A each; configurable pin for weak beam output or IO-Link (COM2)
• Supply: +24 V DC ±15 %, 96 mA typical without load
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; 5-pin or 8-pin RD cordset with M12 ordered separately

With the 8-pin RD cordset the receiver monitors the contactors itself (EDM) and needs no external safety module; with the 5-pin cordset it is wired to a safety relay, safety controller or safety PLC. Reduced resolution can be switched on to ignore one blocked beam, and up to four pairs can be cascaded.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).

RSIO-L5-6SI2SO-C is a Banner RSio remote safety I/O block that brings six safety inputs and two OSSD outputs onto a CIP Safety over EtherNet/IP network. Each input port also accepts an In-Series Diagnostics (ISD) chain of up to 32 devices, 192 per block.

• Inputs and outputs: 6 safety input ports, single or dual channel; 2 OSSD outputs, 1 A at 24 V DC, splittable; up to 12 PNP non-safe outputs
• Communication: CIP Safety over EtherNet/IP, 10/100 Mbit/s, two M12 D-coded 4-pin Ethernet ports
• Configuration: IP address on 3 rotary dials; set up from the safety PLC project, Studio 5000 recommended
• Supply: 24 V DC ±20 %, 200 mA without load; 5-pin L-coded M12 power in and pass-through out, 8 A per circuit
• Housing: glass-filled polyamide, epoxy-encapsulated, 261.9 x 73.9 x 39.4 mm; I/O on M12 A-coded 5-pin
• Environment: IP65, IP67, -25...+70 °C, indoor use only

The block needs a safety PLC with CIP Safety on EtherNet/IP; Banner provides the EDS file and Studio 5000 AOI and UDT files. Input reaction time is 6 ms plus debounce (default 6 ms), output reaction time 5 ms.

Up to Category 4 and PL e (EN ISO 13849-1), SIL 3 (IEC 61508); EMC per IEC 61326-3-1. CE and UL.

RSIO-MA4-6SI2SO-C is a Banner RSio remote safety I/O block that brings six safety inputs and two OSSD outputs onto a CIP Safety over EtherNet/IP network. Each input port also accepts an In-Series Diagnostics (ISD) chain of up to 32 devices, 192 per block.

• Inputs and outputs: 6 safety input ports, single or dual channel; 2 OSSD outputs, 1 A at 24 V DC, splittable; up to 12 PNP non-safe outputs
• Communication: CIP Safety over EtherNet/IP, 10/100 Mbit/s, two M12 D-coded 4-pin Ethernet ports
• Configuration: IP address on 3 rotary dials; set up from the safety PLC project, Studio 5000 recommended
• Supply: 24 V DC ±20 %, 200 mA without load; 4-pin 7/8" Mini power in and pass-through out, 8 A per circuit
• Housing: glass-filled polyamide, epoxy-encapsulated, 261.9 x 73.9 x 39.4 mm; I/O on M12 A-coded 5-pin
• Environment: IP65, IP67, -25...+70 °C, indoor use only

The block needs a safety PLC with CIP Safety on EtherNet/IP; Banner provides the EDS file and Studio 5000 AOI and UDT files. Input reaction time is 6 ms plus debounce (default 6 ms), output reaction time 5 ms.

Up to Category 4 and PL e (EN ISO 13849-1), SIL 3 (IEC 61508); EMC per IEC 61326-3-1. CE and UL.

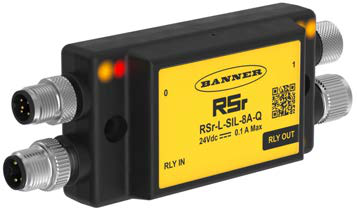

RSr-L-SIL-8A-Q is a remote safety relay from Banner's RSr family. It converts the OSSD outputs of a safety device into two volt-free normally open relay contacts, so a light curtain, a safety I/O block or a safety PLC can switch loads that do not tolerate OSSD test pulses. This is the latch model: after a stop the outputs stay off until a reset signal is applied on the A-code port.

• Input: one dual-channel OSSD pair, ON threshold > 15 V DC, OFF below 5 V DC
• Output: two normally open safety contacts, 8 A at 24 V DC (DC1) per IEC/EN 60947-5-1
• Supply: 24 V DC ±20 %, under 100 mA, approximately 2 W
• Response time 20 ms maximum, minimum OFF-state recovery 400 ms
• Housing: thermoplastic polyurethane, IP65 / IP67, 138 × 50 × 27.8 mm, −25 °C to +60 °C
• Connection: four 5-pin M12 connectors — two A-code for signals and reset, two L-code for the switched power

The relay mounts directly on the machine with two M4 screws or a bracket, so distributed safety outputs can switch motors, valves and brakes without a control cabinet. There are no DIP switches and nothing to program. Four LED indicators show status, fault, both safety inputs and the relay output.

SIL 3 per IEC 61508 and EN 62061, Category 4 / PL e per EN ISO 13849-1; CE marked and UL listed.

RSr-L-SIT-8A-Q is a remote safety relay from Banner's RSr family. It converts the OSSD outputs of a safety device into two volt-free normally open relay contacts, so a light curtain, a safety I/O block or a safety PLC can switch loads that do not tolerate OSSD test pulses. This is the trip model: the contacts follow the safety inputs directly, and pin 5 of the A-code port carries an auxiliary output that mirrors the relay state.

• Input: one dual-channel OSSD pair, ON threshold > 15 V DC, OFF below 5 V DC
• Output: two normally open safety contacts, 8 A at 24 V DC (DC1) per IEC/EN 60947-5-1, plus a 24 V DC 70 mA solid-state AUX output
• Supply: 24 V DC ±20 %, under 100 mA, approximately 2 W
• Response time 20 ms maximum, minimum OFF-state recovery 400 ms
• Housing: thermoplastic polyurethane, IP65 / IP67, 138 × 50 × 27.8 mm, −25 °C to +60 °C
• Connection: four 5-pin M12 connectors — two A-code for signals and the AUX output, two L-code for the switched power

The relay mounts directly on the machine with two M4 screws or a bracket, so distributed safety outputs can switch motors, valves and brakes without a control cabinet. There are no DIP switches and nothing to program. Four LED indicators show status, fault, both safety inputs and the relay output.

SIL 3 per IEC 61508 and EN 62061, Category 4 / PL e per EN ISO 13849-1; CE marked and UL listed.
