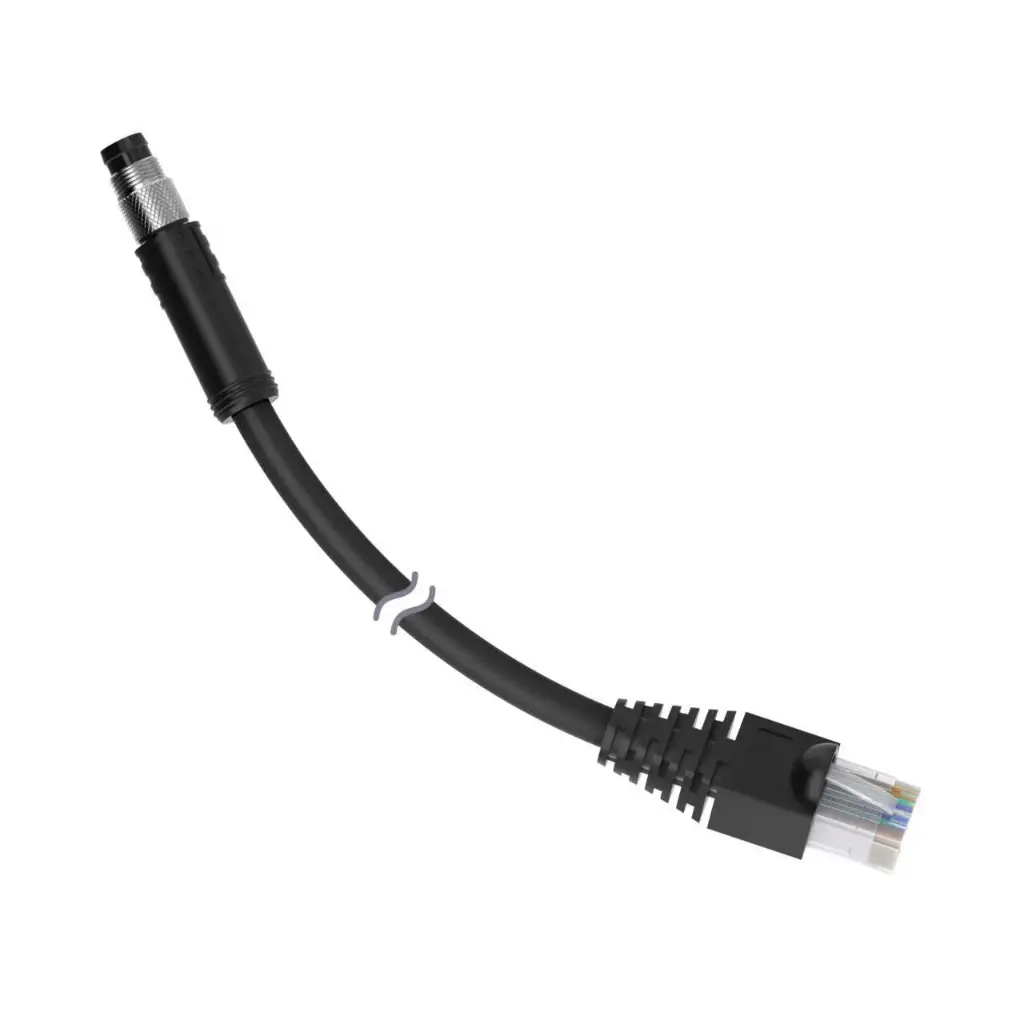

Connection cable STP-M8MRJ45-415, M8 4-pin male / RJ45, Ethernet Cat5e, 4.57 m, shielded

STP-M8MRJ45-415 is a Banner Ethernet cordset with a straight 4-pin M8 male connector at one end and an RJ45 plug at the other. The twisted pairs are individually shielded with an overall shield, rated Cat5e.

• Connectors: M8, male, straight, 4 pins, nickel-plated brass nut, black PUR body / RJ45 plug, polycarbonate housing, gold-plated contacts
• Cable: 4.57 m, black PVC, Ø 5 mm, 26 AWG, shield on the M8 nut and RJ45 shell
• Ratings: 0.5 A, 42 V DC
• Environment: IP66, IP67 (M8 end only), -40...+70 °C
