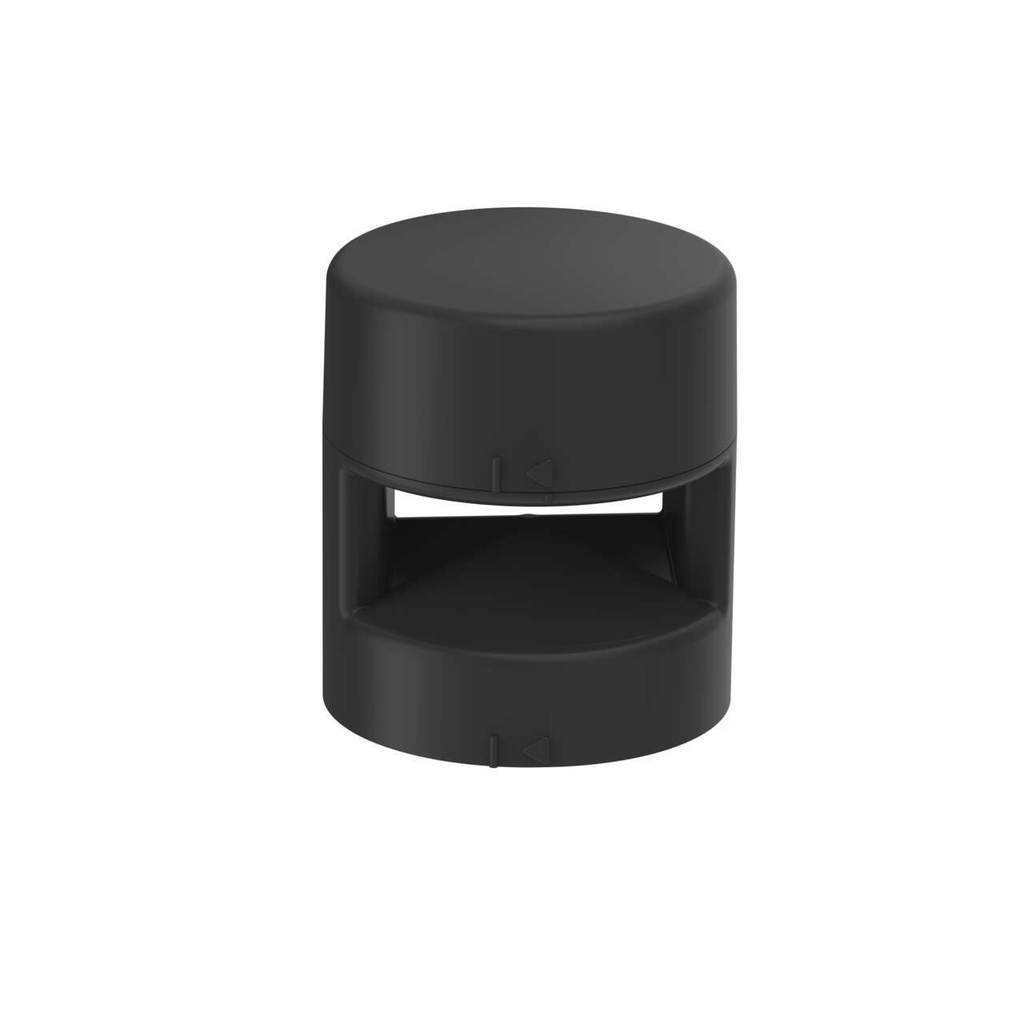

Indication tower audible module SG-TL70-AP, programmable MP3/WAV, 12-30VDC, IP50

SG-TL70-AP is a Banner TL70 series 70 mm audible module that plays a user-loaded MP3 or WAV file instead of a fixed tone. It fits on top of a TL70 modular tower light base.

• Audio: MP3 or WAV files, 4 MB flash memory; ships with a 2.5 kHz steady tone
• Trigger: input channel selected with DIP switches; playback repeats while the input is active
• Supply: 12...30 V DC via DC base (330 mA at 12 V), or 100...240 V AC via B-TL70-Z base
• Housing: black polycarbonate, Ø70 x 79.6 mm
• Environment: IP50, -20...+50 °C

Files are loaded over the USB-USBM-1 cable: the module appears on the PC as a USB drive and files are copied onto it. A spoken message or a custom tone can then mark a specific machine state.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
