Wireless status display SD50P300WSR2QP, 2.4 GHz, Modbus RTU, 300 mm, 12-30VDC, IP65

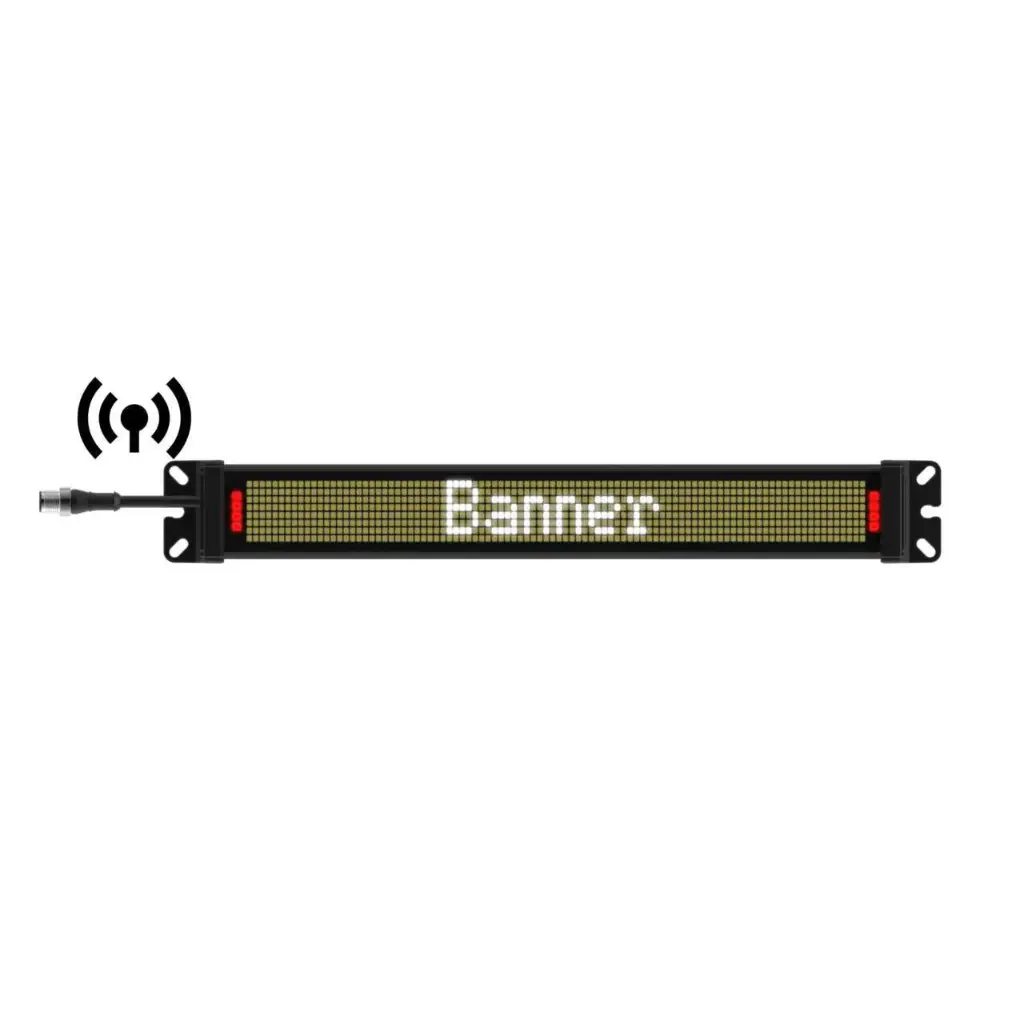

SD50P300WSR2QP is a Banner SD50 status display with a built-in 2.4 GHz serial data radio, a 300 mm white LED text line and RGB indicator LEDs. Text, colours and animations arrive as Modbus RTU commands over the radio, so only power is wired to the display.

• Display: 8x96 pixel white LED text line, 300 mm long, RGB indicator LEDs in 14 colours, legible from 10 m
• Communication: 2.4 GHz serial data radio, conducted < 18 dBm (65 mW), Modbus RTU
• Supply: 12...30 VDC, max. 570 mA at 12 VDC, 230 mA at 30 VDC
• Housing: black polycarbonate, smoky polycarbonate window, 325x50x28 mm
• Environment: IP65, -20...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector (power)

Suited to positions where a data cable is hard to run, such as moving equipment or the far end of a line. It needs a Banner 2.4 GHz radio with Modbus control - a DXM controller or an R70SR serial data radio; that and the M12 power cordset are ordered separately. End caps take M5 and 1/4-20 fasteners (screws not included); clip brackets are available as accessories.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms). Suitable for damp locations per UL 2108.
