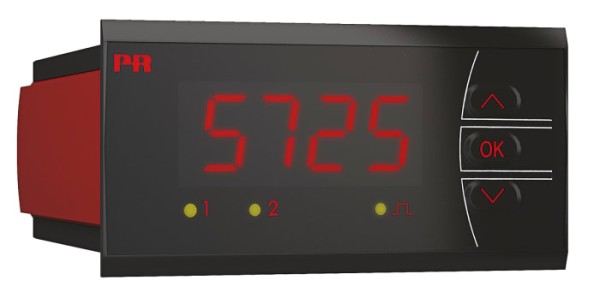

• Measures NPN, PNP, Contact, NAMUR, S0, Tacho and TTL sensors
• Programmable frequency input span of 0.001 Hz to 50 kHz
• The 5725D has two SPDT relays and one analog output
• Easy to read 4-digit, 14-segment LED display with scrolling help text
• Universally powered by 21.6…253 VAC or 19.2… 300 VDC

AR715/S1/P/P/WA is an APAR panel meter that is set up as a flow meter with totaliser, pulse counter, encoder counter, batch dispenser or frequency meter. Two pulse inputs take NPN or PNP open-collector or contact (reed) signals, and the built-in 24 V supply powers the flow meter or encoder directly.

• Measurement: flow and total, pulse count, speed and position from an incremental encoder, dosing, frequency
• Input frequency: up to 10 kHz for flow and speed, 30 kHz counting with PNP, 100 kHz counting with NPN
• Outputs: 2 relays 8 A/250 VAC, analogue 0/4-20 mA for alarm or retransmission
• Display: 5-digit LED, 14 mm, four programmable colours
• Supply: 230 VAC (85-260 VAC), 24 VDC/50 mA sensor supply
• Housing: 96x48x79 mm, cut-out 92x46 mm, IP65 front, IP20 terminals

Extra inputs S (count enable), R (reset) and B (programmable) let a PLC or push-button start, stop and zero a batch without the keypad. The totaliser holds 10 digits with sign. This version has no RS485; parameters are set from the keypad or through the PRG port with an APAR programmer.

TX707HB-P3CV01 is a 7" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The HB version has a brighter 600 cd/m² screen, bonded with LOCA to reduce reflection, for readability in sunlight, and an all-metal housing with a protective coating on the PCB.

• Display: 7" TFT, 800 x 480 (WVGA), 16:9, 16M colours, 600 cd/m², capacitive glass front, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Dual core 800 MHz, 1024 MB RAM, 4 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 0.7 A
• Housing: metal, front 187 x 147 x 47 mm, cut-out 176 x 136 mm, mounting depth 47+8 mm
• Environment: IP66 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 7" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

TX707-P3CV01 is a 7" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The PLC program and the screens are built in CODESYS V3 and loaded into the device over Ethernet.

• Display: 7" TFT, 800 x 480 (WVGA), 16:9, 16M colours, 500 cd/m², capacitive glass front, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Dual core 800 MHz, 1024 MB RAM, 4 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 0.7 A
• Housing: metal, front 187 x 147 x 47 mm, cut-out 176 x 136 mm, mounting depth 29+5 mm
• Environment: IP66 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 7" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

Approvals: ATEX, IECEx, Haz. Loc. Class I, Division 2, Groups A, B, C and D.

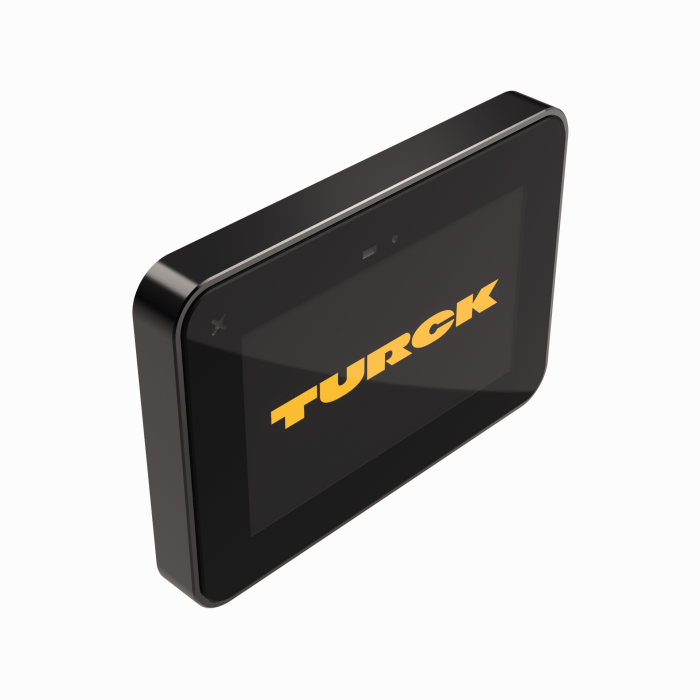

TXF705-00VPST is a 5" touch display from the TURCK TXF700 series with TX VisuPro runtime, a metal housing sealed to IP67 all round and a capacitive multi-touch glass front. Power and data come over one PoE Ethernet cable, so it can be mounted on a machine, pipe or wall outside the cabinet.

• Display: 5" TFT, 800 x 480 (WVGA), 16:9, 16M colours, 300 cd/m², capacitive multi-touch with gesture control, dimmable to 0 %
• Communication: 1 x RJ45 PoE Ethernet 10/100 Mbit, 1 x USB host (special cable required)
• Built in: temperature sensor, 3-axis accelerometer, front RGB LED, beeper
• Software: TX VisuPro runtime; ARM Cortex A9, dual core 800 MHz, 1 GB RAM, 4 GB Flash, battery-backed clock
• Supply: PoE IEEE 802.3af, ≤ 6 W
• Housing: metal, 148.3 x 105.1 x 16.5 mm, mounting depth 17 mm
• Environment: IP67, NEMA 1/12/4X; -20...+55 °C, 5...85 % RH non-condensing

The PoE connection is an M22 socket on the device: a TXF M22-to-RJ45 PoE cable and a PoE switch or injector are needed. Pipe, wall, VESA, gooseneck and tabletop mounts are available as accessories.

Approvals: Haz. Loc. Class I, Division 2, Groups A, B, C and D.

TX715FB-P3CV01 is a 7" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The FB version for the food industry has a stainless steel AISI 316L frame, a food-grade seal and an IP69 front that withstands high-pressure water up to 80 °C, acids and chemicals.

• Display: 7" TFT, 1366 x 768 (HD), 16:9, 16M colours, 400 cd/m², capacitive glass front with polyester coating, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Quad core 800 MHz, 2048 MB RAM, 8 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 1.2 A
• Housing: die-cast aluminium, stainless steel AISI 316L frame, polyester front foil, mounting depth 56+8 mm
• Environment: IP69 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Intended for operator stations in food and beverage production. Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 7" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

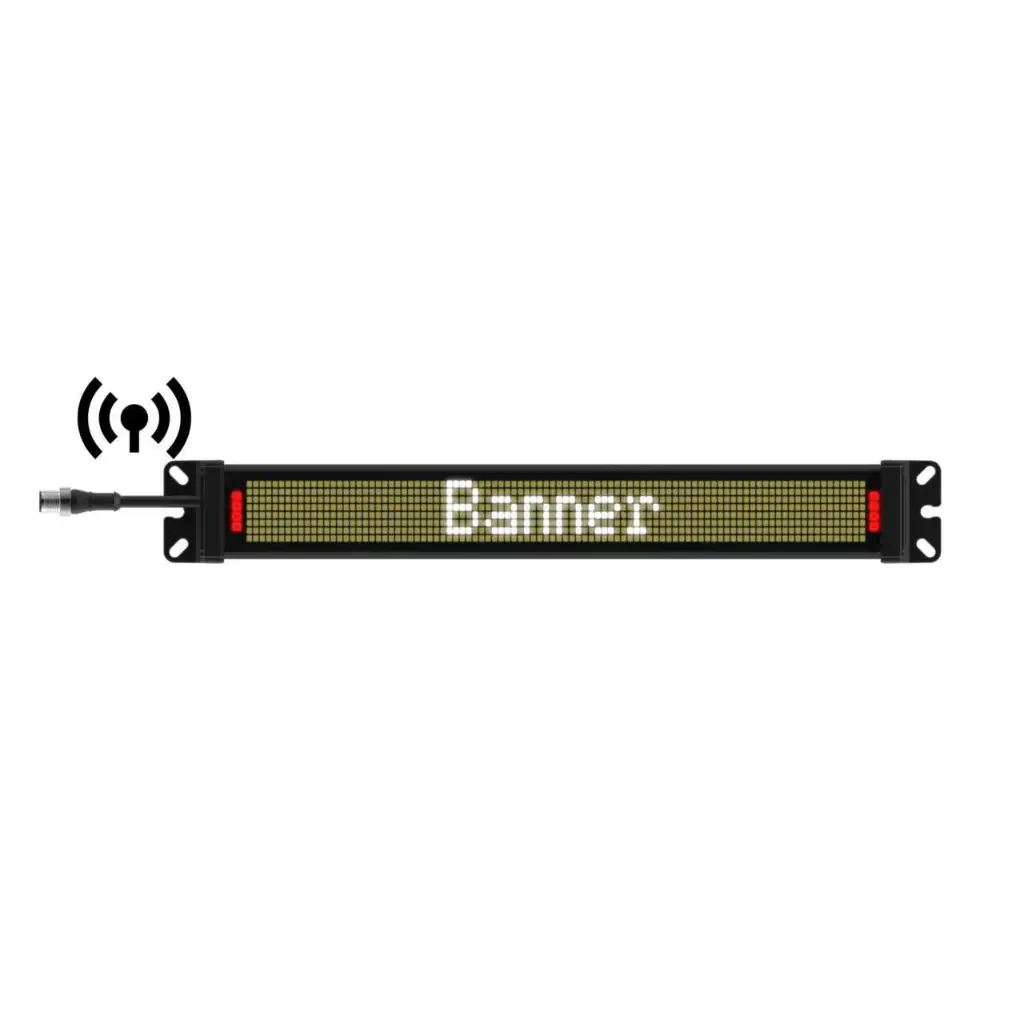

SD50P300WSR2QP is a Banner SD50 status display with a built-in 2.4 GHz serial data radio, a 300 mm white LED text line and RGB indicator LEDs. Text, colours and animations arrive as Modbus RTU commands over the radio, so only power is wired to the display.

• Display: 8x96 pixel white LED text line, 300 mm long, RGB indicator LEDs in 14 colours, legible from 10 m
• Communication: 2.4 GHz serial data radio, conducted < 18 dBm (65 mW), Modbus RTU
• Supply: 12...30 VDC, max. 570 mA at 12 VDC, 230 mA at 30 VDC
• Housing: black polycarbonate, smoky polycarbonate window, 325x50x28 mm
• Environment: IP65, -20...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector (power)

Suited to positions where a data cable is hard to run, such as moving equipment or the far end of a line. It needs a Banner 2.4 GHz radio with Modbus control - a DXM controller or an R70SR serial data radio; that and the M12 power cordset are ordered separately. End caps take M5 and 1/4-20 fasteners (screws not included); clip brackets are available as accessories.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms). Suitable for damp locations per UL 2108.

SD50P300WKQP is a Banner SD50 status display with a 300 mm white LED text line and RGB indicator LEDs, controlled over IO-Link. Text, colours and animations are written from the PLC through the IO-Link master as process data.

• Display: 8x96 pixel white LED text line, 300 mm long, RGB indicator LEDs in 14 colours, legible from 10 m
• Communication: IO-Link V1.1, COM2 (38.4 kbit/s); text up to 29 characters in Run mode
• Configuration: IODD parameters via the IO-Link master
• Supply: 18...30 VDC, max. 350 mA at 18 VDC, 260 mA at 24 VDC
• Housing: black polycarbonate, smoky polycarbonate window, 325x50x28 mm
• Environment: IP65, -20...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Shows counts, measurements, takt time or fault text at the machine without a separate HMI. It needs an IO-Link master port and an M12 cordset, both ordered separately. End caps take M5 and 1/4-20 fasteners (screws not included); clip brackets are available as accessories.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms). Suitable for damp locations per UL 2108.

SD50P300WD15QP is a Banner SD50 Pro status display with a 300 mm white LED text line and RGB indicator LEDs, controlled by four discrete inputs. Each binary combination of the inputs calls one of up to 15 stored states, each with its own text, colour and animation.

• Display: 8x96 pixel white LED text line, 300 mm long, RGB indicator LEDs in 14 colours, legible from 10 m
• Inputs: 4 discrete inputs, up to 15 states; text up to 29 characters in discrete control
• Configuration: Banner Pro Editor software via Pro Converter Cable MQDC-506-USB
• Supply: 12...30 VDC, max. 550 mA at 12 VDC, 260 mA at 24 VDC
• Housing: black polycarbonate, smoky polycarbonate window, 325x50x28 mm
• Environment: IP65, -40...+50 °C
• Connection: 150 mm PVC cable with 5-pin M12 male connector

Used next to a workstation or machine to show takt time, equipment status or assembly steps straight from PLC outputs. States, text and animations are set up in Pro Editor; the mating M12 cordset is ordered separately. End caps take M5 and 1/4-20 fasteners (screws not included); clip brackets are available as accessories.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

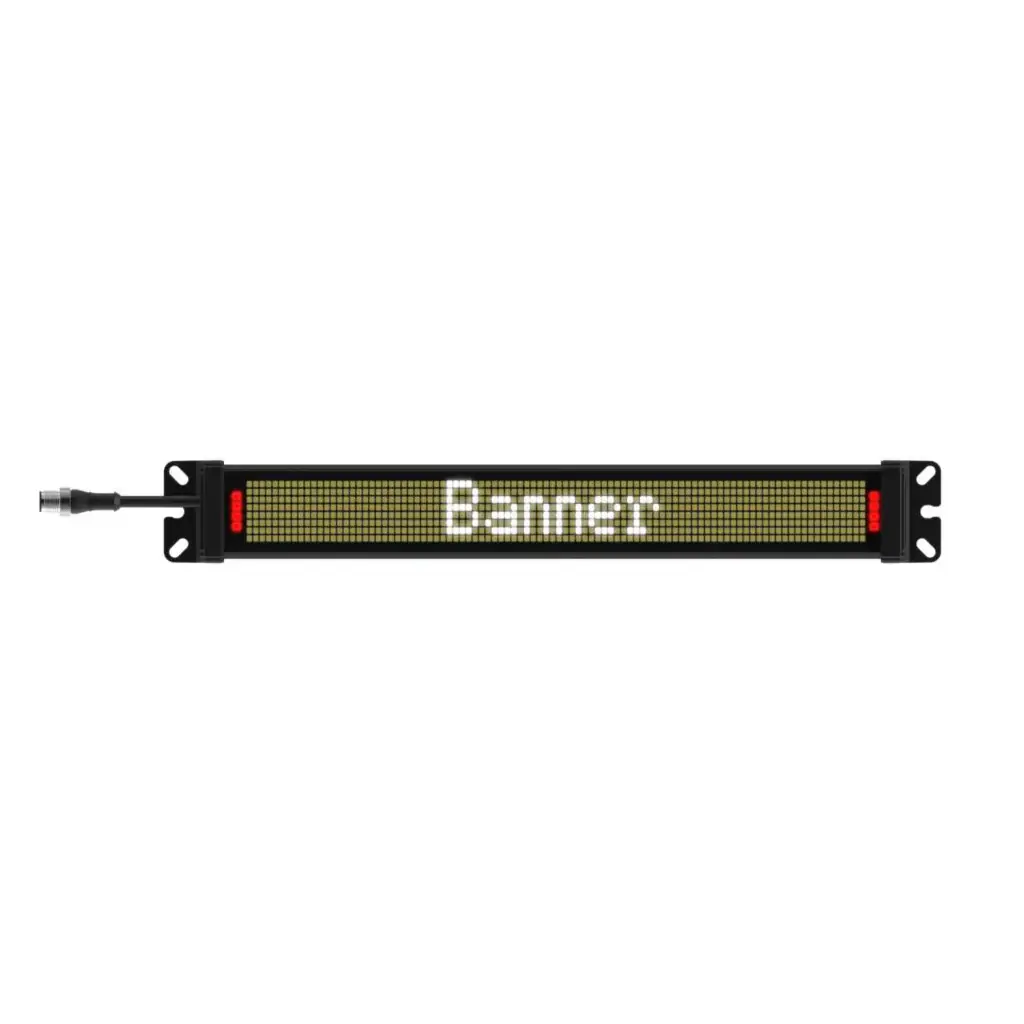

SD50P300WSQP is a Banner SD50 status display with a 300 mm white LED text line and RGB indicator LEDs, controlled over Modbus RTU on RS-485. Text, colours and animations are written to Modbus registers by a PLC or a DXM controller.

• Display: 8x96 pixel white LED text line, 300 mm long, RGB indicator LEDs in 14 colours, legible from 10 m
• Communication: Modbus RTU server, RS-485, default 19.2 kbit/s; text up to 29 characters in Run mode
• Supply: 12...30 VDC, max. 550 mA at 12 VDC, 260 mA at 24 VDC
• Housing: black polycarbonate, smoky polycarbonate window, 325x50x28 mm
• Environment: IP65, -20...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Several displays can share one RS-485 line, each with its own Modbus address, to show counts, takt time or fault text along a line. The M12 cordset is ordered separately. End caps take M5 and 1/4-20 fasteners (screws not included); clip brackets are available as accessories.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms). Suitable for damp locations per UL 2108.
