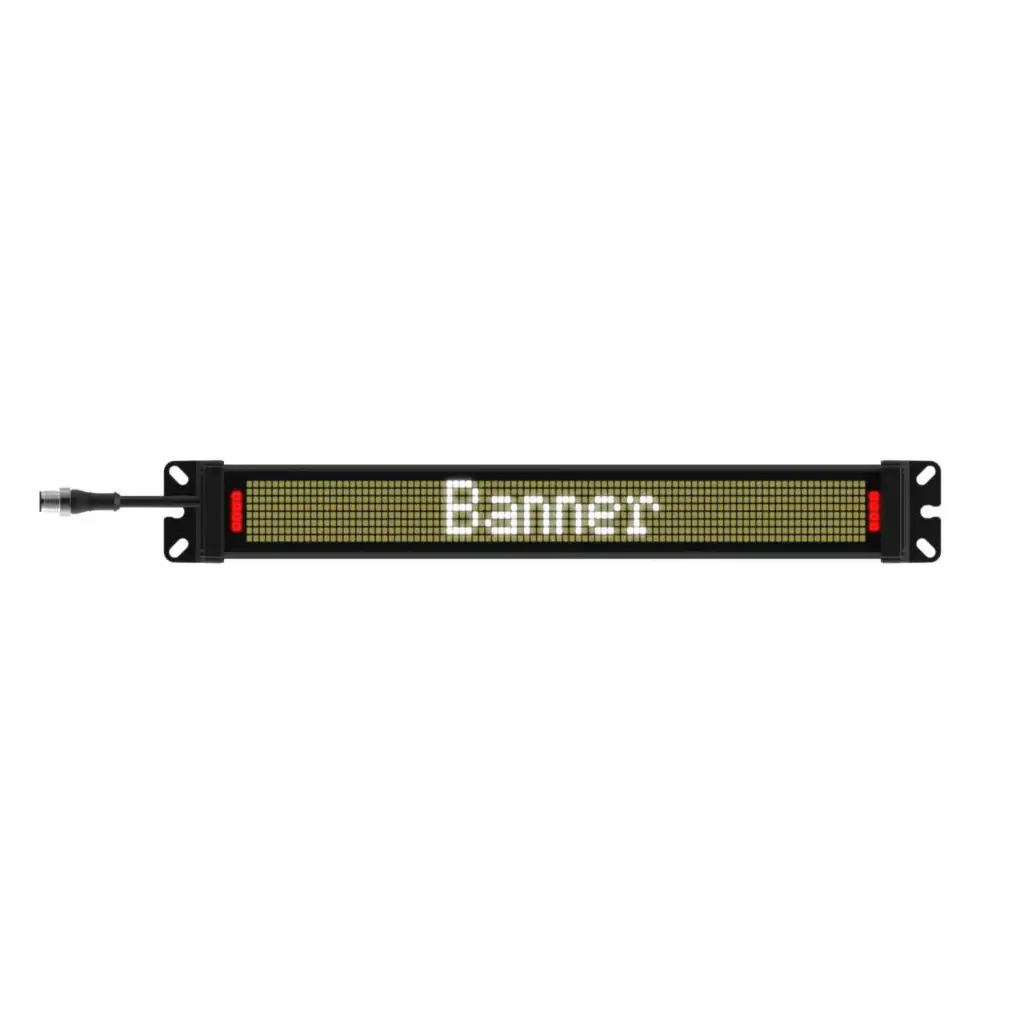

Status display SD50P300WKQP, IO-Link, 300 mm, 18-30VDC, IP65, M12 4-pin

SD50P300WKQP is a Banner SD50 status display with a 300 mm white LED text line and RGB indicator LEDs, controlled over IO-Link. Text, colours and animations are written from the PLC through the IO-Link master as process data.

• Display: 8x96 pixel white LED text line, 300 mm long, RGB indicator LEDs in 14 colours, legible from 10 m
• Communication: IO-Link V1.1, COM2 (38.4 kbit/s); text up to 29 characters in Run mode
• Configuration: IODD parameters via the IO-Link master
• Supply: 18...30 VDC, max. 350 mA at 18 VDC, 260 mA at 24 VDC
• Housing: black polycarbonate, smoky polycarbonate window, 325x50x28 mm
• Environment: IP65, -20...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Shows counts, measurements, takt time or fault text at the machine without a separate HMI. It needs an IO-Link master port and an M12 cordset, both ordered separately. End caps take M5 and 1/4-20 fasteners (screws not included); clip brackets are available as accessories.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms). Suitable for damp locations per UL 2108.
