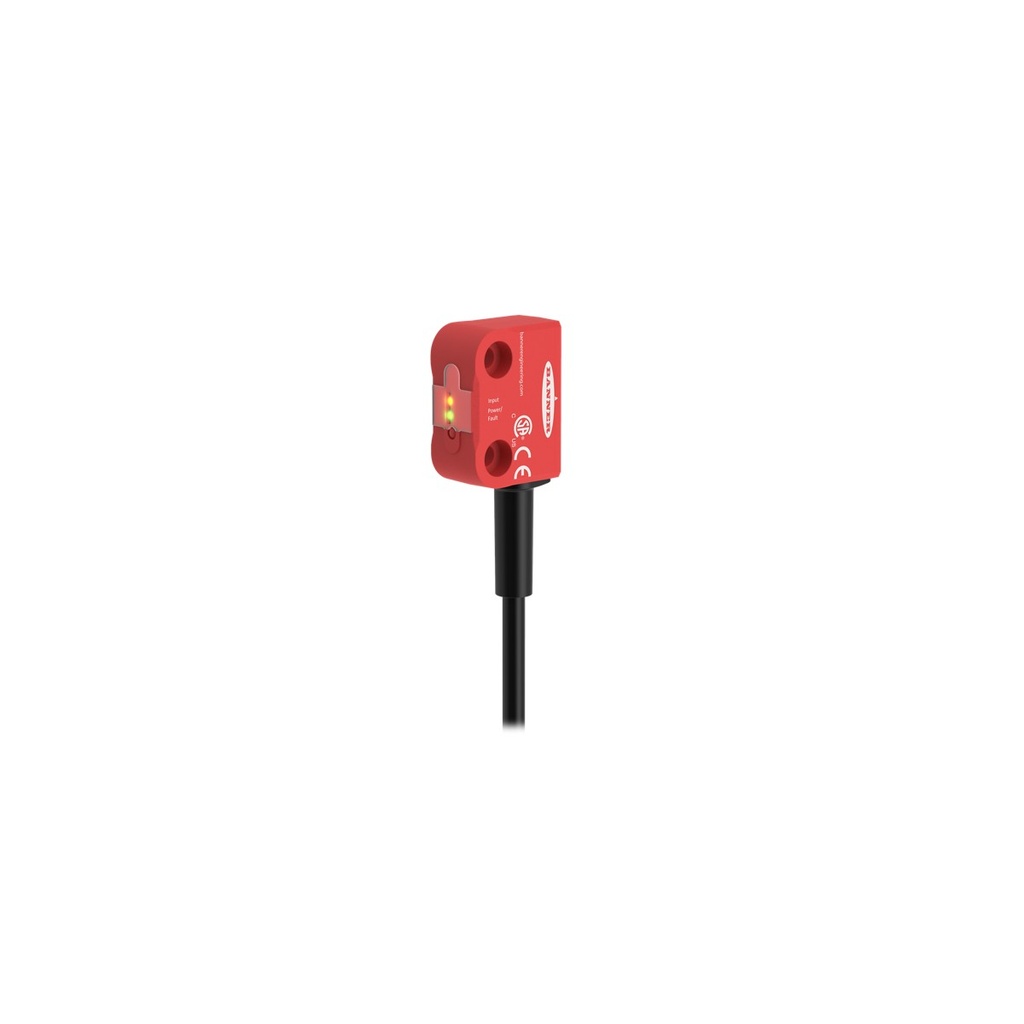

Safety switch SI-RFPT-LP5, RFID, low coding, 2 OSSD, PL e, 24VDC, 250 mm cable with M12 5-pin, IP69

SI-RFPT-LP5 is a Banner SI-RF series non-contact RFID safety switch for monitoring guard doors and covers, used with the SI-RF-A actuator. It has two OSSD safety outputs and one PNP auxiliary output, and resets automatically when the guard closes.

• Safety: up to PL e, Category 4 (EN ISO 13849-1), SIL CL 3 (EN 62061), PFHd 6 x 10⁻⁹ 1/h
• Switching distance: on at 10 mm, off at 25 mm, typical 13 mm; coding level low (accepts any SI-RF-A actuator)
• Outputs: 2 OSSD PNP, 100 mA each; 1 PNP auxiliary, 10 mA; switch-off delay 100 ms
• Supply: 24 V DC (+25 %/-20 %), no-load current ≤ 50 mA
• Housing: 36 x 26 x 15 mm, PA66/PA6, red, 2 x M4 mounting holes
• Environment: IP69, -25...+70 °C
• Connection: 250 mm PUR cable with M12 male connector, 5-pin

The switch works with the SI-RF-A or SI-RF-A2 actuator and a safety controller or relay that evaluates the OSSD outputs, all ordered separately. Low coding means any SI-RF actuator is accepted, so the switch suits guards where tamper resistance is handled by mounting.

Meets EN 60947-5-3, EN ISO 13849-1, EN 62061 and EN 60204-1. TÜV Nord and cCSAus approved; CE.
