Muting sensor kit S4BA-ML-LPQ20, L configuration, 2x Q20-2 sensors, for S4B

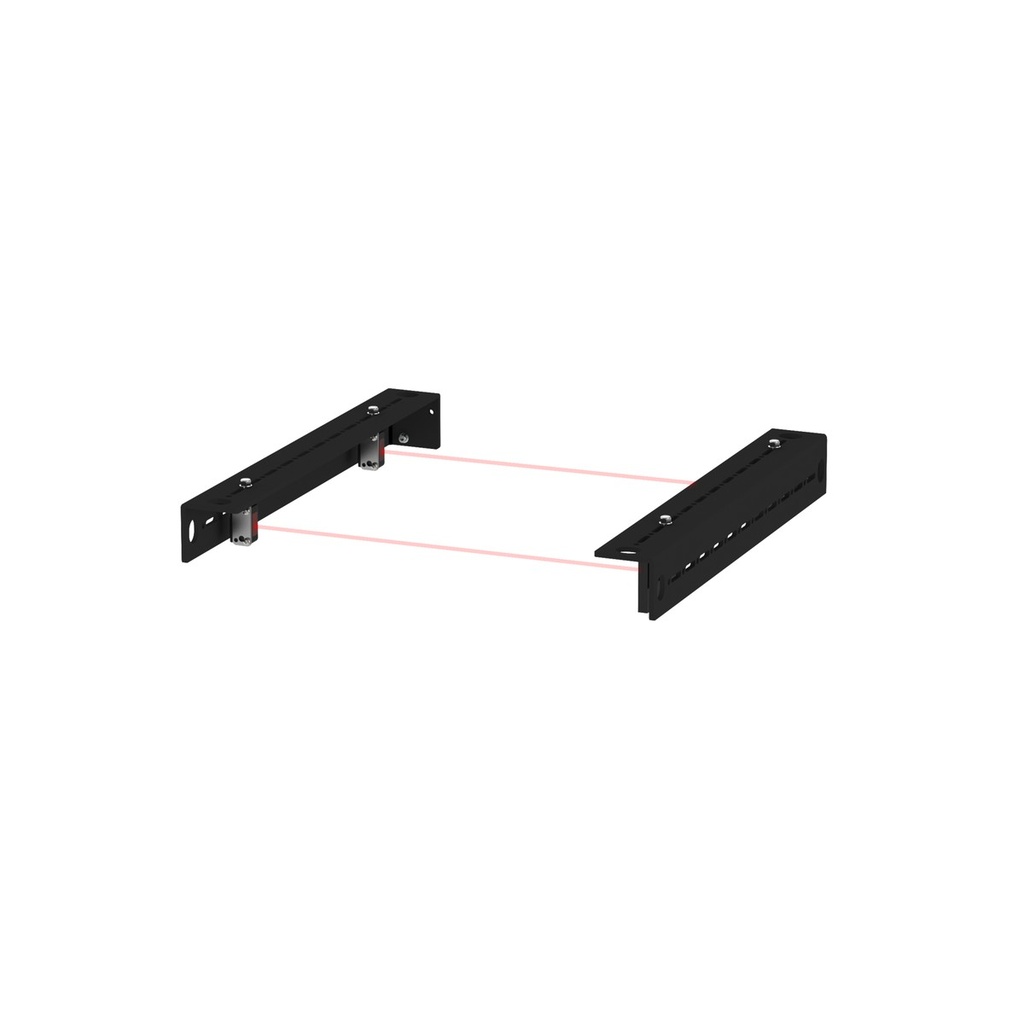

S4BA-ML-LPQ20 is an L-configuration mute arm kit for Banner EZ-SCREEN S4B safety light curtains: one sensor arm with two Q20-2 retroreflective sensors and one reflector arm with two reflectors, all pre-installed. Together with an S4B pair and a Banner safety controller it forms a muting system.

• Included: 1 sensor arm with 2 S4BA-Q20-2VPLP-Q5 sensors, 1 reflector arm with 2 reflectors, mounting hardware for sensors and reflectors
• Sensors: retroreflective, visible red LED, up to 5 m, PNP, 10-30 V DC, light/dark operate
• Connection: 600 mm cable with 4-pin M12 connector per sensor
• Arms: 4 mm aluminium, black anodised; 50 x 50 x 400 mm
• Environment: IP67, -25...+70 °C

The arm mounts to an S4BA-MBK-16 bracket or directly to a flat surface; the M4 hardware for this is not included. Single-sided, left or right.
