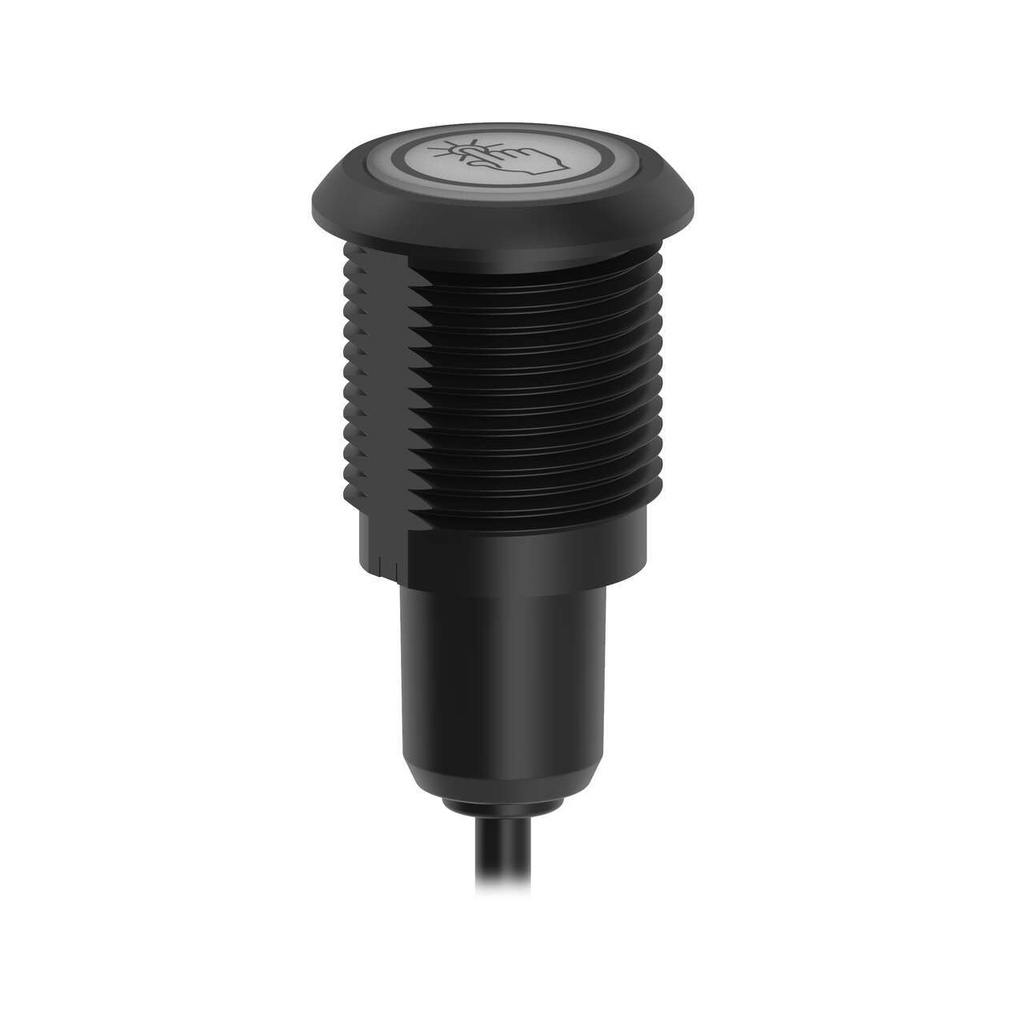

Touch button S22AMTSGRHQP, 22 mm, green/red, momentary, bipolar NO, 10-30VDC, IP69K, M22, 150 mm cable with M12 5-pin

S22AMTSGRHQP is a Banner S22 Pro series 22 mm touch button with a momentary output. With power applied it glows green; a touch switches the output and turns it red.

• Colors: green 527 nm, red 625 nm (touched)
• Output: bipolar, normally open, momentary, max. 150 mA; input response 20 ms, output 300 ms
• Supply: 10...30 V DC, 45 mA at 24 V
• Housing: polycarbonate base, dome and nut, M22x1.5 thread, max. 2.25 Nm
• Environment: IP66, IP67, IP69K, -40...+50 °C
• Connection: 150 mm PVC cable with 5-pin M12 male connector

Fits a standard 22 mm push-button hole in a panel and is configurable with Pro Editor.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
