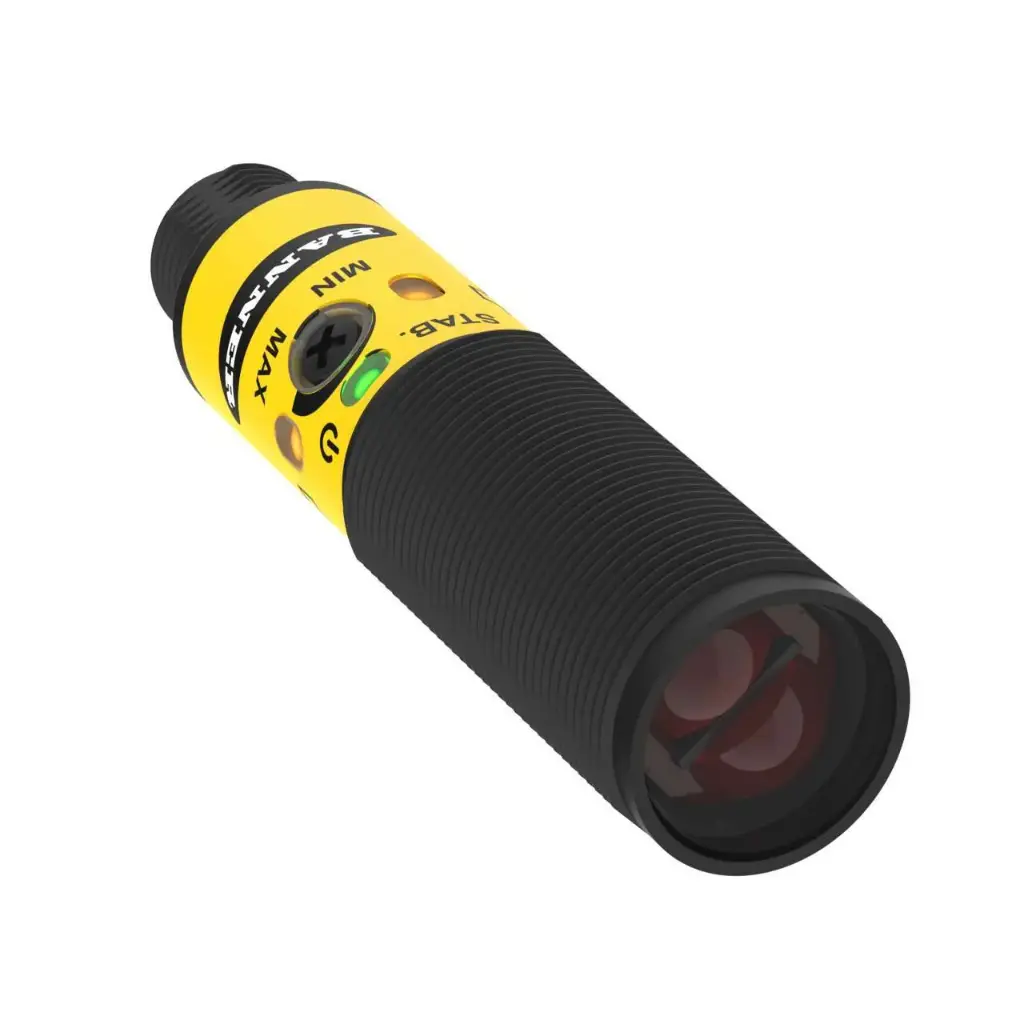

Photo sensor - receiver S18-2VPRS-Q8, 25 m, PNP, NO/NC, 10-30VDC, M12 4-pin

S18-2VPRS-Q8 is the receiver of a Banner S18-2 series opposed-mode photo sensor pair in an 18 mm plastic barrel. It switches when an object breaks the beam from a separate S18-2 emitter up to 25 m away.

• Sensing range: 25 m with an S18-2 emitter
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 100 mA total
• Response: 1.5 ms ON, 1 ms OFF; repeatability 170 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), 8 mA
• Housing: ABS, PMMA window, M18x1 threaded barrel, PBT nuts included
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male connector

Works with an S18-2 emitter such as S18-2NAEL, ordered separately. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire (Light Operate) output is on. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).
