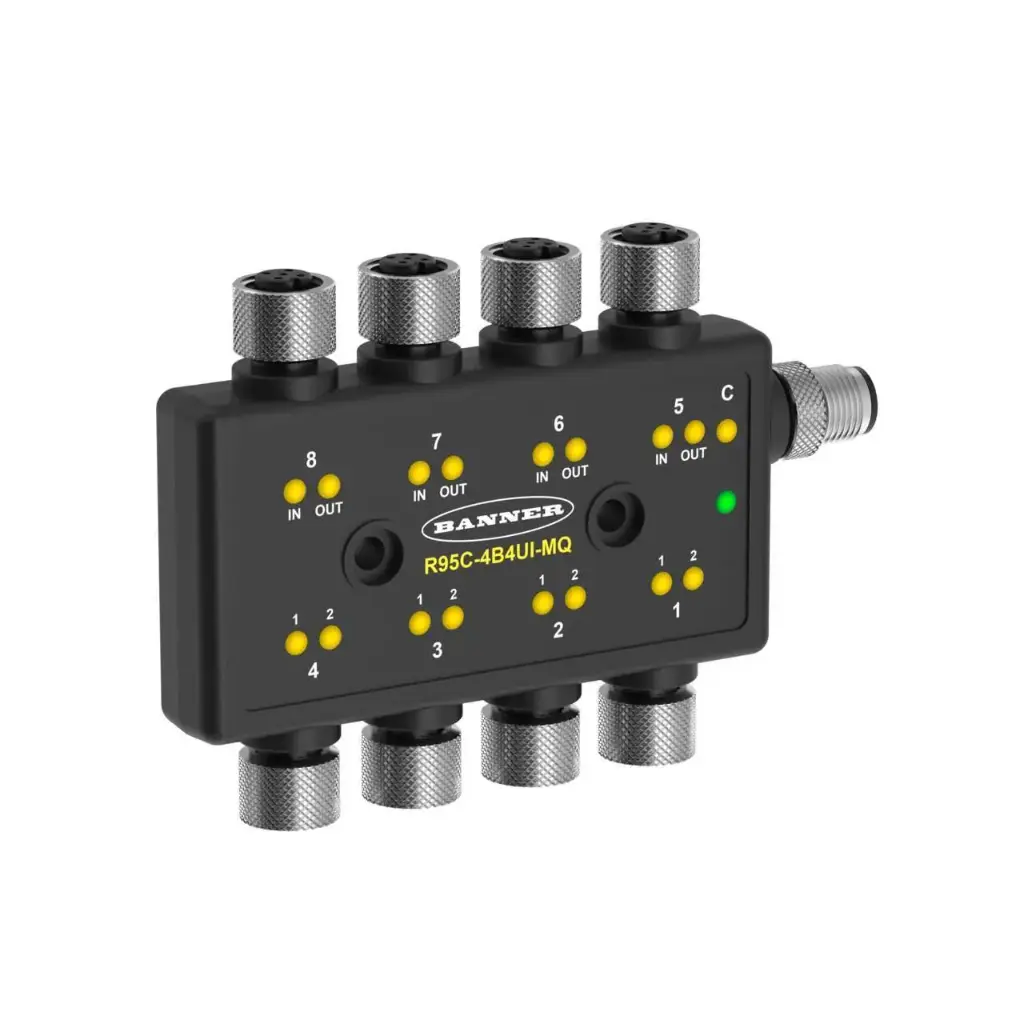

I/O Hub R95C-4B4UI-MQ, 4 discrete + 4 analog ports, Modbus RTU, 12-30VDC, M12

R95C-4B4UI-MQ is a Banner R95C series Modbus hub with eight M12 ports: four with two discrete channels each and four analog ports for voltage or current, each usable as input or output. All values are read and written through Modbus registers over RS-485.

• Discrete: ports 1-4, 2 channels each, NPN or PNP set per channel, output load 200 mA; delay modes, counters, PFM output 0...600 Hz
• Analog: ports 5-8, input 0...11000 mV or 0...24000 µA, output 0...10000 mV or 4000...20000 µA
• Communication: Modbus RTU server, RS-485
• Supply: 12...30 VDC, max. 400 mA without load; total pass-through current max. 4 A
• Housing: over-moulded PVC body, nickel-plated brass coupling nuts, 50x95 mm
• Environment: IP65, IP67, IP68, -40...+70 °C
• Connection: 8x 4-pin M12 female, 1x 5-pin M12 male to the Modbus line

Any analog input can be mirrored to an analog output port or as a PFM signal to a discrete port without PLC logic. Settings are made with Banner SNAP SIGNAL Configuration Software; M12 cordsets are ordered separately.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
