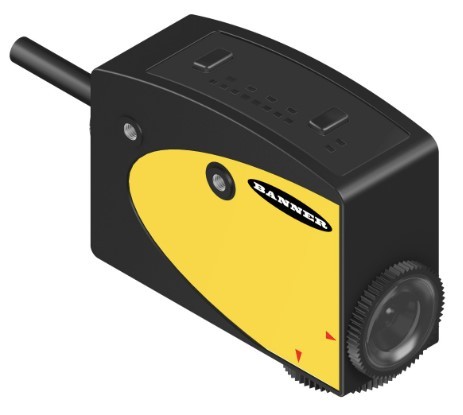

Contrast sensor R58ECRGB1, RGB, 10 mm, PNP + NPN, 10-30VDC, parallel image, 2 m cable

R58ECRGB1 is a Banner R58E Expert registration mark sensor with a red, green and blue LED light source. During TEACH it picks the colour that gives the most contrast between the mark and its background and detects 16 levels of grey scale; the switching frequency is 10 kHz.

• Sensing: fixed focus 10 mm ±3 mm, image 1.2 x 3.8 mm, parallel to sensor length
• Light source: red 636 nm, green 525 nm, blue 472 nm, selected automatically during TEACH
• Outputs: bipolar, 1x PNP and 1x NPN, 100 mA each; response 50 µs, repeatability 15 µs
• Supply: 10-30VDC, max 75 mA at 10 VDC
• Housing: zinc alloy die-cast, acrylic lens
• Environment: IP67, -10...+55 °C
• Connection: 2 m PVC cable, 5 conductors

Static and Dynamic TEACH by push button or the gray remote wire; in Dynamic TEACH the shorter event becomes Output ON, so Light/Dark Operate is set automatically. Mount at about 15° to shiny surfaces. A 30 ms OFF-delay or ON-delay can be enabled.

Vibration and shock per IEC 60068-2-6 and IEC 60068-2-27.
