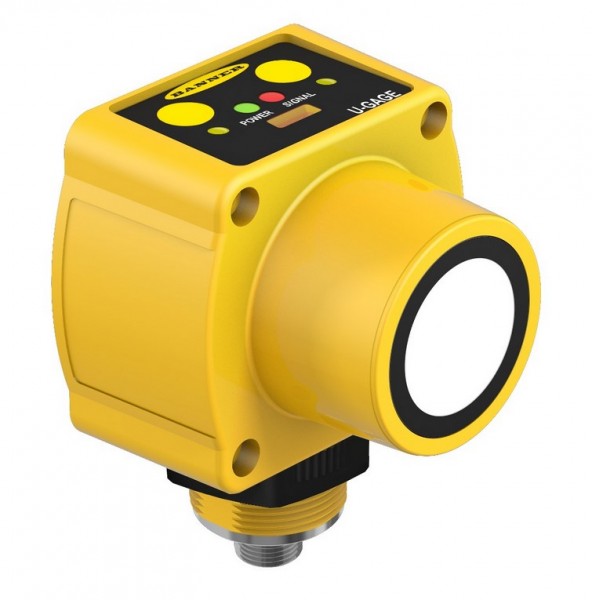

Ultrasonic sensor QT50ULBQ6, 0.2...8 m, 4-20mA or 0-10V, 10-30VDC, M12 5-pin

QT50ULBQ6 is a Banner U-GAGE QT50ULB long-range ultrasonic sensor with an analog output scaled across a taught window. The output type, slope, response speed and temperature compensation are set with eight DIP switches under a sealed cover.

• Accuracy: linearity ±0.2 % of span (200...8000 mm), ±0.1 % of span (500...8000 mm); resolution 1 mm; temperature effect 0.02 % of distance/°C compensated
• Measuring range: 200 mm...8 m, 75 kHz; minimum window 20 mm
• Output: analog 0-10 V or 4-20 mA, selected by DIP switch; response 100...2300 ms
• Supply: 10...30 V DC, 100 mA at 10 V
• Housing: ABS/polycarbonate
• Environment: IP67, NEMA 6P, -20...+70 °C
• Connection: integral M12 5-pin male

The near and far limits are taught with push buttons or the remote wire and can be set independently; objects inside 200 mm may cause a false reading.

Vibration per MIL-STD-202F method 201A, shock per IEC 947-5-2 (30 g, 11 ms).
