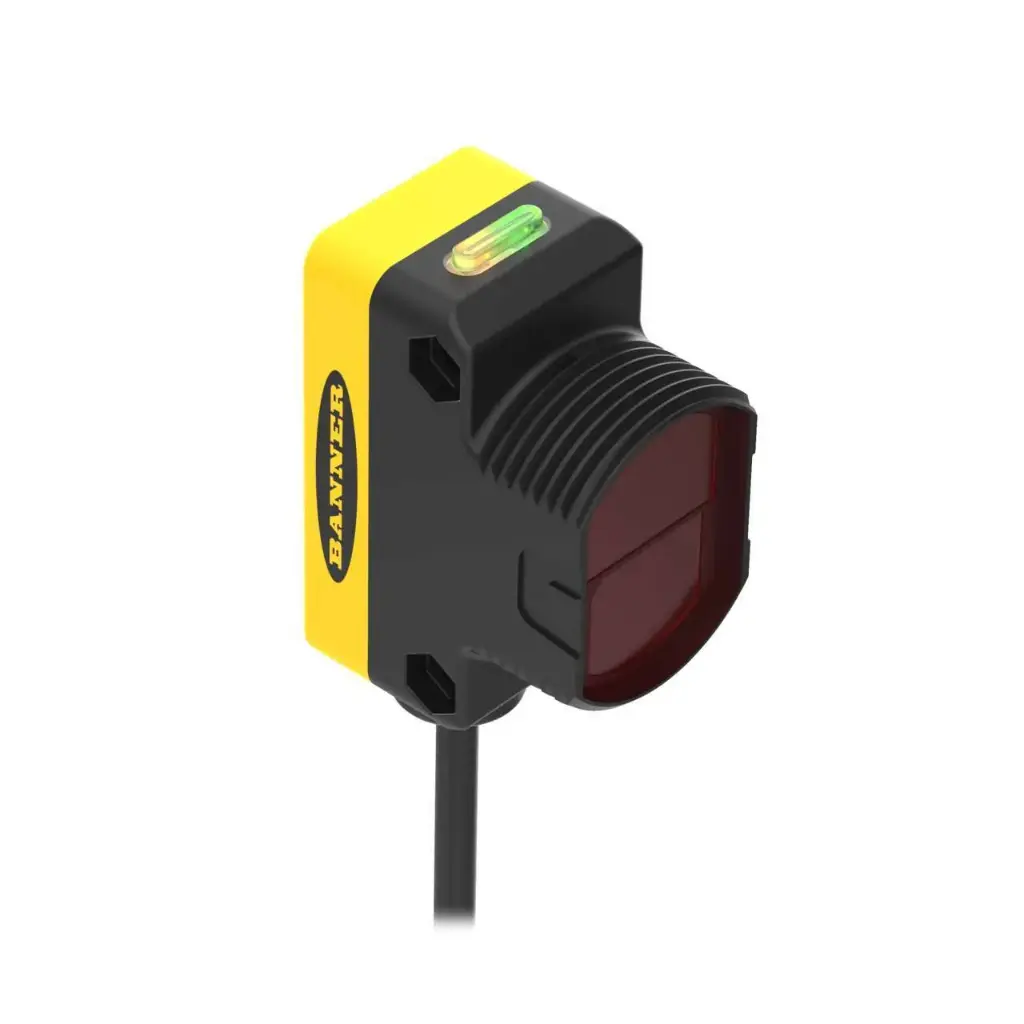

Photo sensor QS30LPQPMA25, polarized retroreflective 8 m, PNP, 10-30VDC, 150 mm cable with M12 4-pin

QS30LPQPMA25 is a Banner QS30 series polarized retroreflective photo sensor with a visible red 630 nm beam and an 8 m range with a BRT-84 reflector. Sensitivity is set with a single-turn potentiometer.

• Sensing range: 8 m with BRT-84 reflector
• Output: PNP, 100 mA, Light/Dark Operate
• Response: 2 ms, repeatability 500 µs
• Supply: 10-30 V DC, < 40 mA
• Housing: rectangular ABS with M30 mount, acrylic lens
• Environment: IP67, -20...+70 °C
• Connection: 150 mm PUR cable with M12 4-pin male connector

Green LED indicator: power on, flashing on output overload. Amber: light sensed, flashing at marginal excess gain. A yellow LED on the back of the sensor shows the output is conducting.

Vibration per MIL-STD-202F, Method 201A; shock per IEC 60947-5-2 (30 G, 11 ms).
