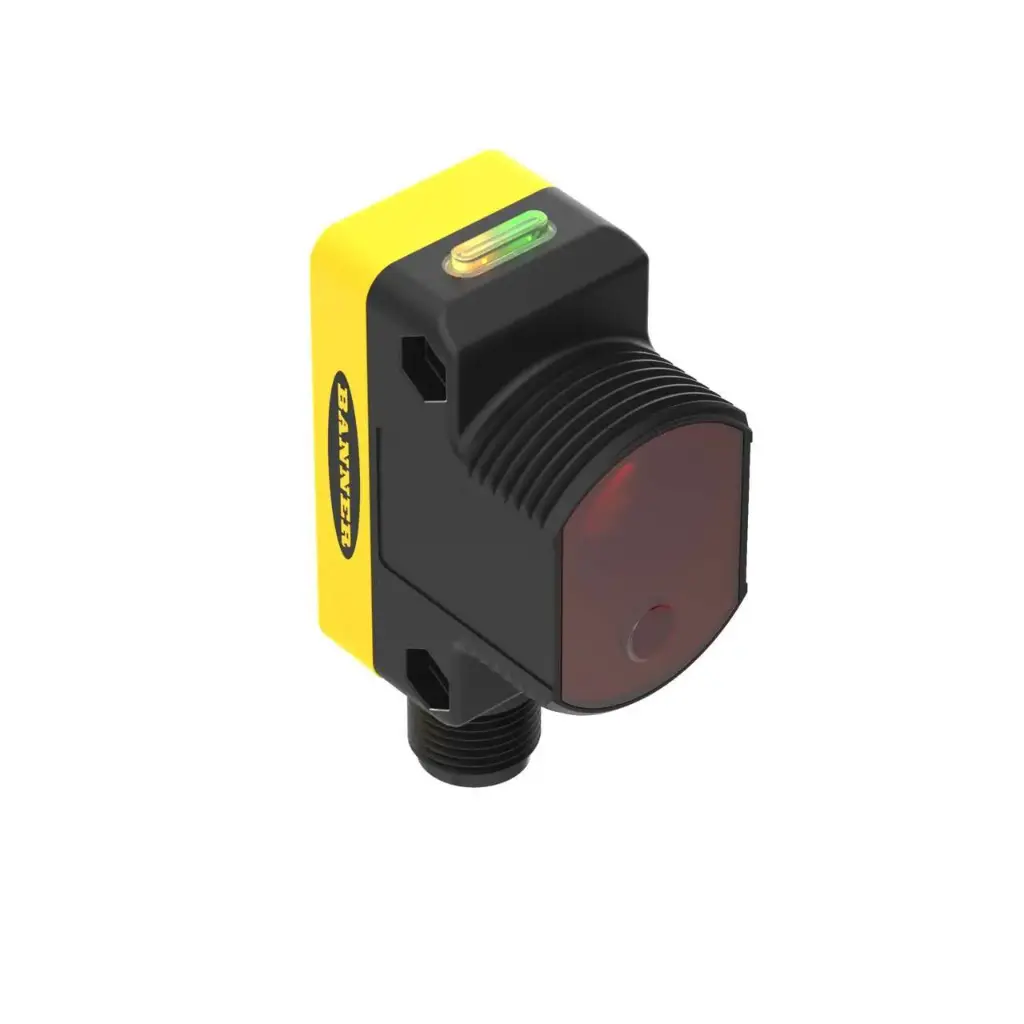

Photo sensor QS30LDLQ, laser diffuse 800 mm, Class 2, PNP/NPN, teach, 10-30VDC, M12 5-pin

QS30LDLQ is a Banner QS30 series diffuse-mode laser sensor with a Class 2 visible red 658 nm laser and an 800 mm range. The spot is about 1 mm at 800 mm, so it detects small parts and low-contrast targets at a distance.

• Sensing range: 800 mm, spot approx. 1 mm at 800 mm
• Output: bipolar, one PNP and one NPN, Light or Dark Operate, 150 mA each
• Response: 500 µs; repeatability 70 µs; selectable 30 ms OFF-delay
• Supply: 10-30 V DC, < 35 mA
• Housing: ABS, acrylic lens cover, 30 mm threaded nose or side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 5-pin male connector

The switch point is taught with two push buttons or the remote wire: two-point static, dynamic, window, light set and dark set, then fine-tuned with the +/- buttons. An 8-segment bar graph shows the signal relative to the switch point; the remote wire also locks the buttons and resets to factory defaults.

Class 2 laser product per IEC 60825-1:2014. Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.
