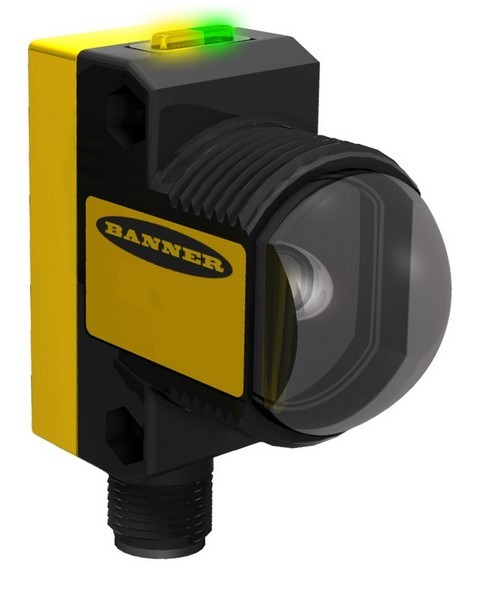

Photo sensor - emitter QS30EXQ, high-power 213 m, infrared, 10-30VDC, M12 5-pin

QS30EXQ is the emitter of a Banner QS30 series high-power opposed-mode pair. With a QS30ARX or QS30RRX receiver it works over 213 m with an excess gain of 2, enough to see through heavy dust, fog and lens contamination.

• Sensing range: 213 m with a QS30ARX or QS30RRX receiver (excess gain 2), infrared 875 nm
• Output: none (emitter); LED inhibit on the white wire
• Supply: 10-30 V DC, < 70 mA
• Housing: ABS, COP lens, epoxy-encapsulated electronics, 30 mm threaded nose or side mounting
• Environment: IP69K, -20...+60 °C
• Connection: integral M12 5-pin male connector

Modulation frequency A or B is chosen with the grey wire and must match the receiver, which keeps neighbouring pairs from interfering. Pulling the white wire low switches the emitter off, so the receiver can be checked. Works with a QS30ARX (light operate) or QS30RRX (dark operate) receiver, ordered separately.
