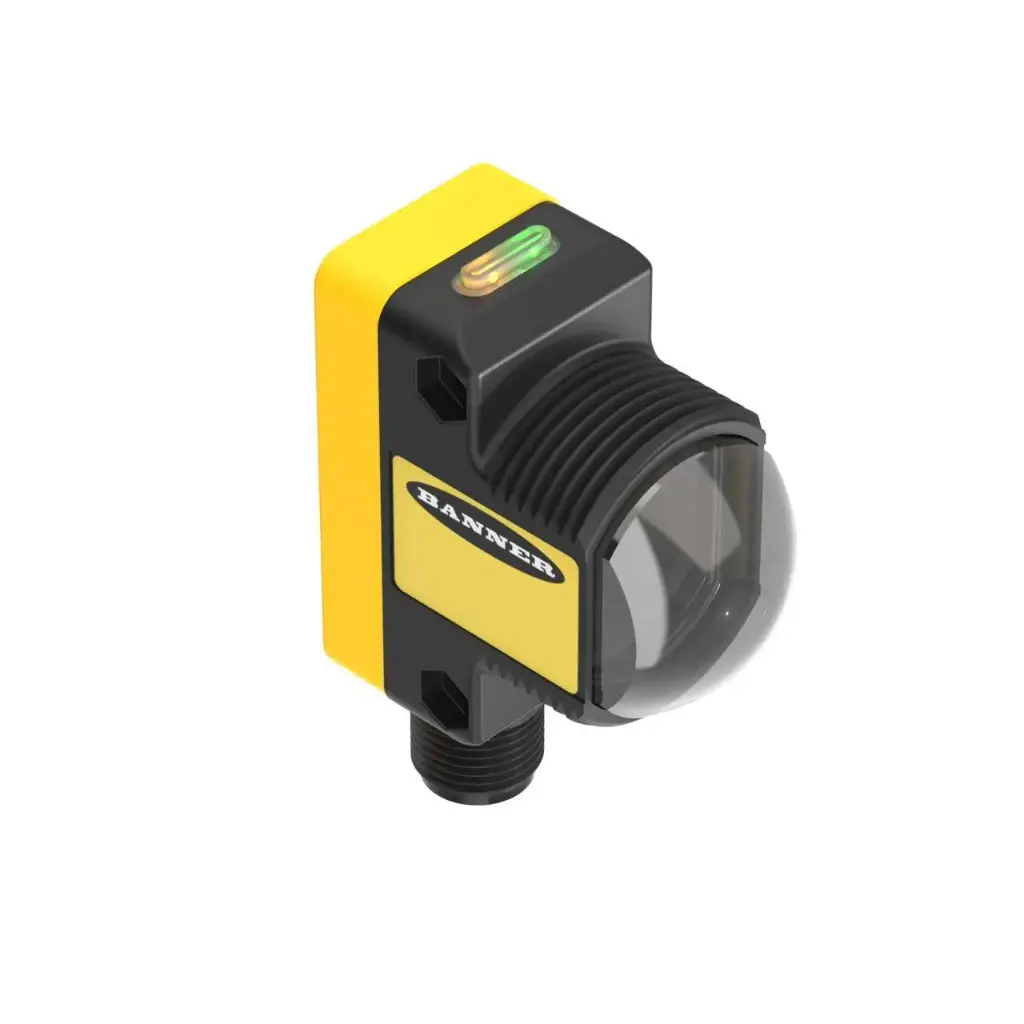

Photo sensor - receiver QS30ARXQ, high-power 213 m, PNP/NPN, light operate, 10-30VDC, M12 5-pin

QS30ARXQ is the receiver of a Banner QS30 series high-power opposed-mode pair. With a QS30EX emitter it works over 213 m with an excess gain of 2, enough to see through heavy dust, fog and lens contamination.

• Sensing range: 213 m with a QS30EX emitter (excess gain 2)
• Output: bipolar, one PNP and one NPN, Light Operate, 100 mA
• Response: 30 ms ON/OFF; repeatability 5 ms
• Supply: 10-30 V DC, < 22 mA
• Housing: ABS, COP lens, epoxy-encapsulated electronics, 30 mm threaded nose or side mounting
• Environment: IP69K, -20...+70 °C
• Connection: integral M12 5-pin male connector

The output is on while the beam is unbroken. Modulation frequency A or B is chosen with the grey wire and must match the emitter, which keeps neighbouring pairs from interfering. A 4-LED bar shows signal strength relative to the switch point. Works with a QS30EX or QS30EXQ emitter, ordered separately.
