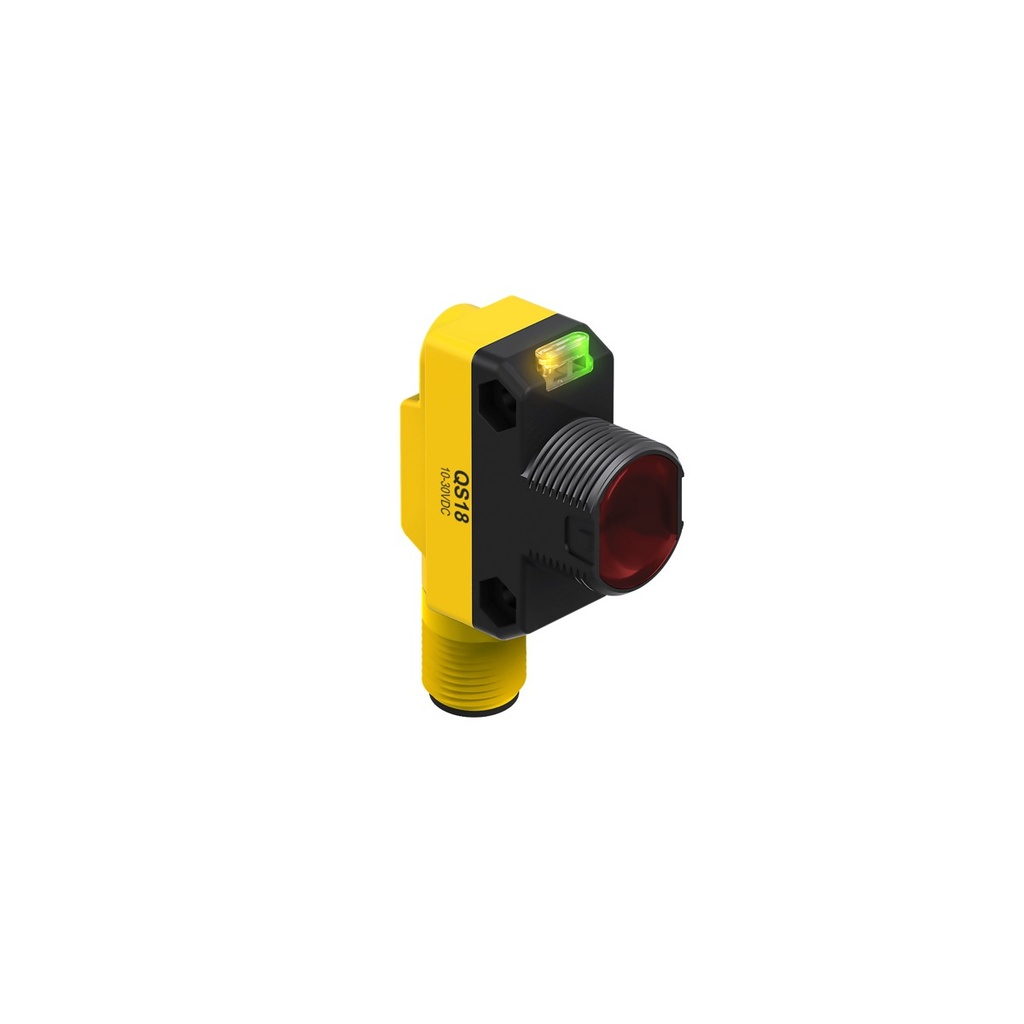

Photo sensor - receiver QS18VP6RQ8, 20 m, PNP, NO/NC, 10-30VDC, M12 4-pin

QS18VP6RQ8 is the receiver of a Banner QS18 series opposed-mode photo sensor pair. It switches when an object breaks the beam from a separate QS186E emitter up to 20 m away.

• Sensing range: 20 m with a QS186E emitter, effective beam 13 mm
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 750 µs ON, 375 µs OFF; repeatability 100 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: integral M12 4-pin male connector

Works with a QS186E emitter, ordered separately. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.
