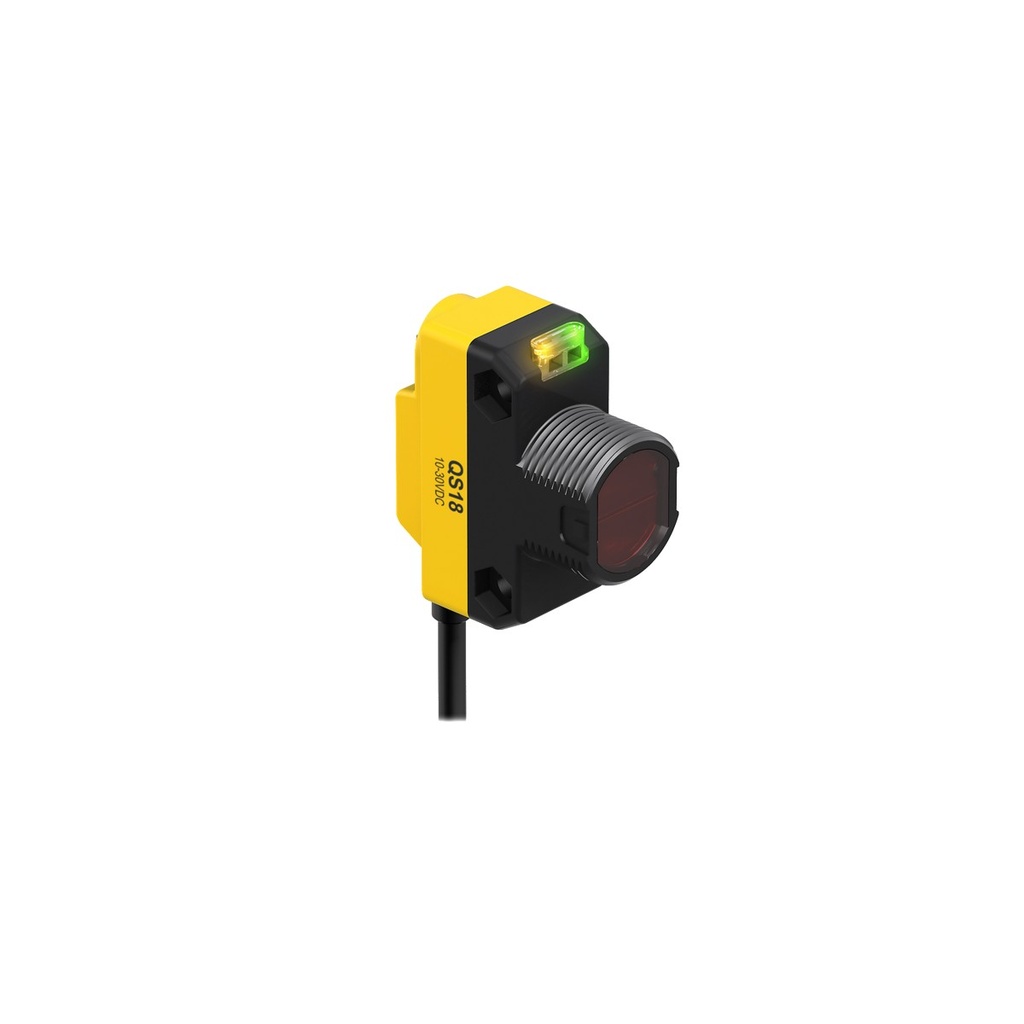

Photo sensor QS18VP6LV W/30, retroreflective 6.5 m, PNP NO/NC, 10-30VDC, 9 m cable

QS18VP6LV W/30 is a Banner QS18 series non-polarised retroreflective photo sensor with a visible red 630 nm beam, a range of 6.5 m to a reflector and a 9 m cable. It switches when an object breaks the beam between the sensor and the reflector.

• Sensing range: 6.5 m with a reflector
• Output: complementary PNP, Light Operate and Dark Operate
• Response: 0.6 ms; repeatability 150 µs
• Supply: 10-30 V DC
• Housing: rectangular with M18 threaded nose, ABS, acrylic lens
• Environment: IP67, NEMA 4X, -20...+70 °C
• Connection: 9 m PVC cable, 4 wires

Needs a reflector, ordered separately. Being non-polarised, it can be fooled by shiny targets; sensitivity is set with a potentiometer. UL and CE approved.
