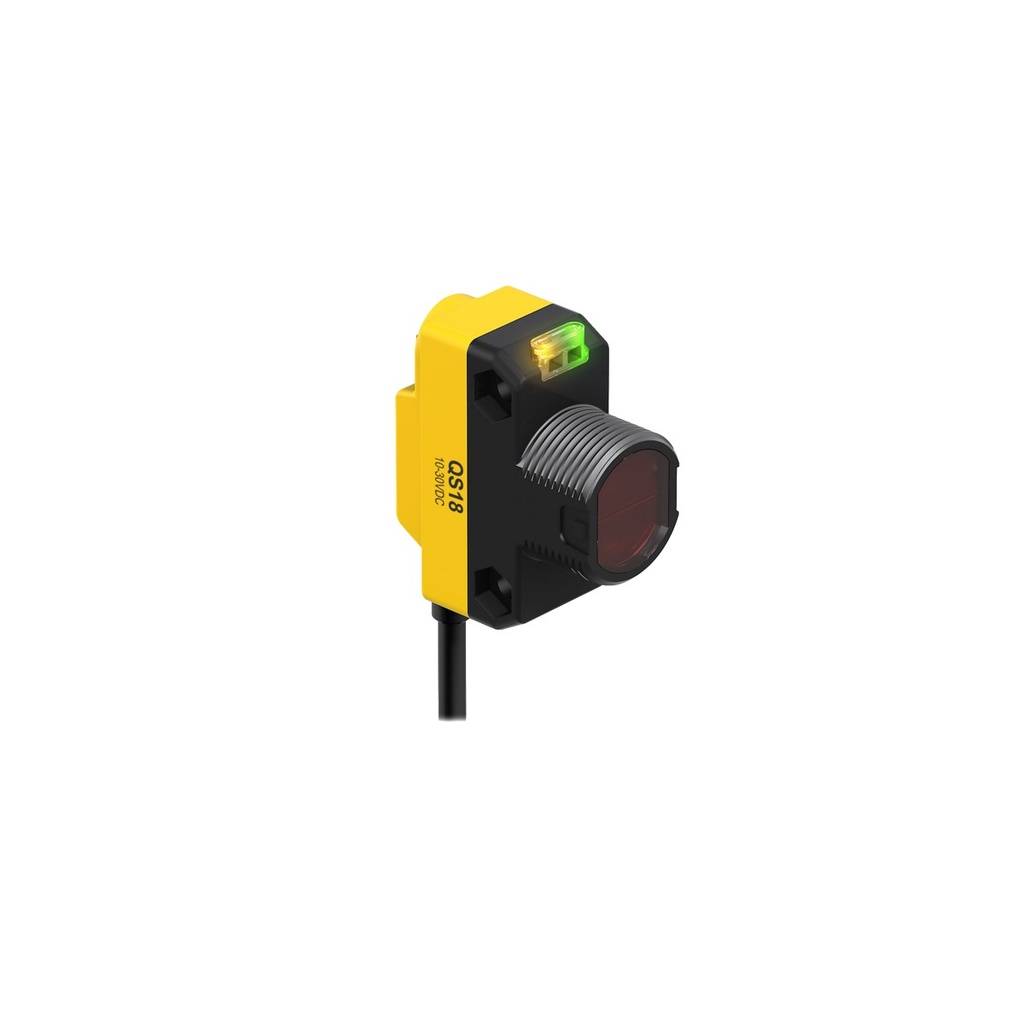

Photo sensor QS18VP6LP, polarized retroreflective 3.5 m, PNP NO/NC, 10-30VDC, 2 m cable

QS18VP6LP is a Banner QS18 series polarised retroreflective photo sensor with a visible red 630 nm beam and a range of 3.5 m to a reflector. The polarising filter rejects light returned by shiny objects, so they break the beam instead of acting as a reflector.

• Sensing range: 3.5 m with a reflector
• Output: complementary PNP, Light Operate and Dark Operate
• Response: 0.6 ms; repeatability 150 µs
• Supply: 10-30 V DC
• Housing: rectangular with M18 threaded nose, ABS, acrylic lens
• Environment: IP67, NEMA 4X, -20...+70 °C
• Connection: 2 m PVC cable, 4 wires

Needs a reflector, ordered separately. Sensitivity is set with a potentiometer. UL and CE approved.
