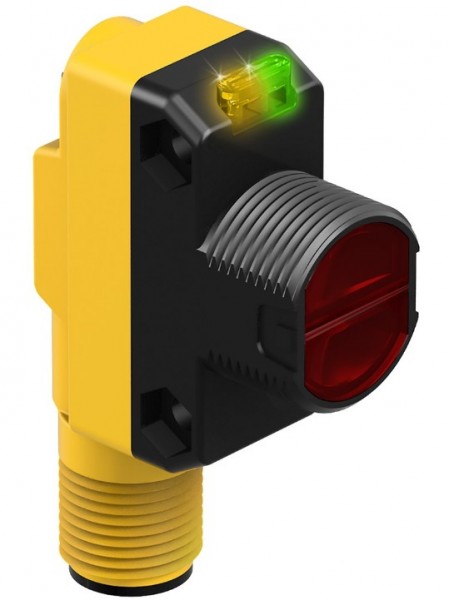

Photo sensor QS18VP6FF100Q8, fixed-field 100 mm, PNP, NO/NC, 10-30VDC, M12 4-pin

QS18VP6FF100Q8 is a Banner QS18 series fixed-field photo sensor with a visible red 630 nm beam and a fixed 100 mm cutoff. It detects objects up to the cutoff and ignores anything behind it, so a background close behind the object does not trigger the output.

• Sensing range: fixed cutoff at 100 mm
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: integral M12 4-pin male connector

The cutoff is fixed, so there is nothing to adjust on site. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.
