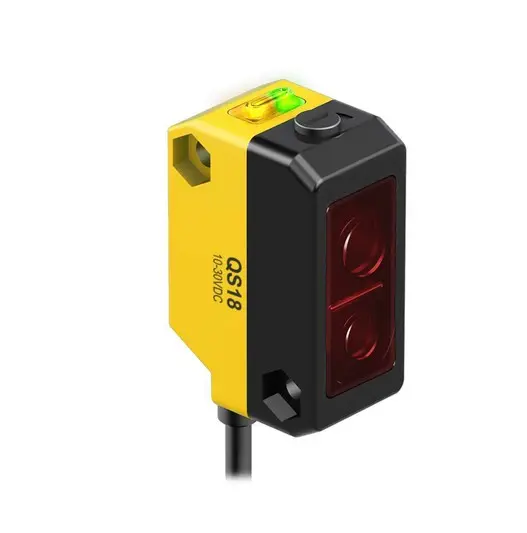

Photo sensor QS18VP6AF300Q5, background suppression 30-300 mm, PNP, NO/NC, 10-30VDC, M12 4-pin 150 mm cable

QS18VP6AF300Q5 is a Banner QS18 series photo sensor with adjustable background suppression and a visible red 640 nm LED beam. Objects up to the set cutoff are detected regardless of colour, while anything beyond it is ignored.

• Sensing range: cutoff adjustable 30-300 mm
• Output: complementary PNP, Light Operate and Dark Operate
• Response: 2.5 ms; repeatability 250 µs
• Supply: 10-30 V DC
• Housing: ABS, acrylic lens
• Environment: IP67, -20...+55 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

The cutoff distance is set with a mechanical adjustment screw. A crosstalk algorithm lets two sensors work close to each other. A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal condition.
