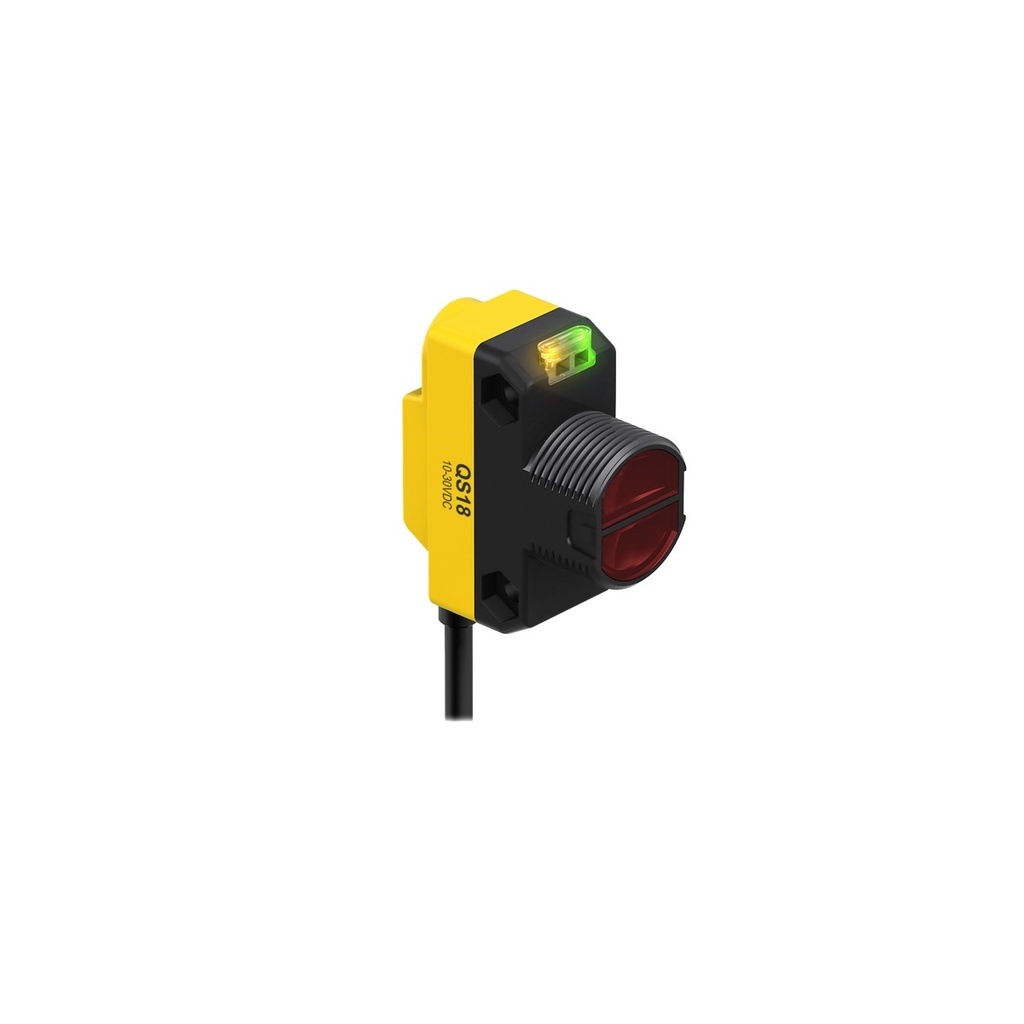

Photo sensor QS18VN6D, diffuse 450 mm, infrared, NPN NO/NC, 10-30VDC, 2 m cable

QS18VN6D is a Banner QS18 series diffuse photo sensor with an infrared beam, in a compact housing with an M18 threaded nose. It detects objects by the light they reflect back, up to 450 mm from the sensor.

• Sensing range: 450 mm, adjustable
• Output: complementary NPN, Light Operate and Dark Operate
• Response: 0.6 ms; repeatability 150 µs
• Supply: 10-30 V DC
• Housing: rectangular with M18 threaded nose, ABS, acrylic lens
• Environment: IP67, NEMA 6, -20...+70 °C
• Connection: 2 m PVC cable, 4 wires

Sensitivity is set with a potentiometer. The M18 nose fits a standard 18 mm mounting hole. UL and CE approved.
