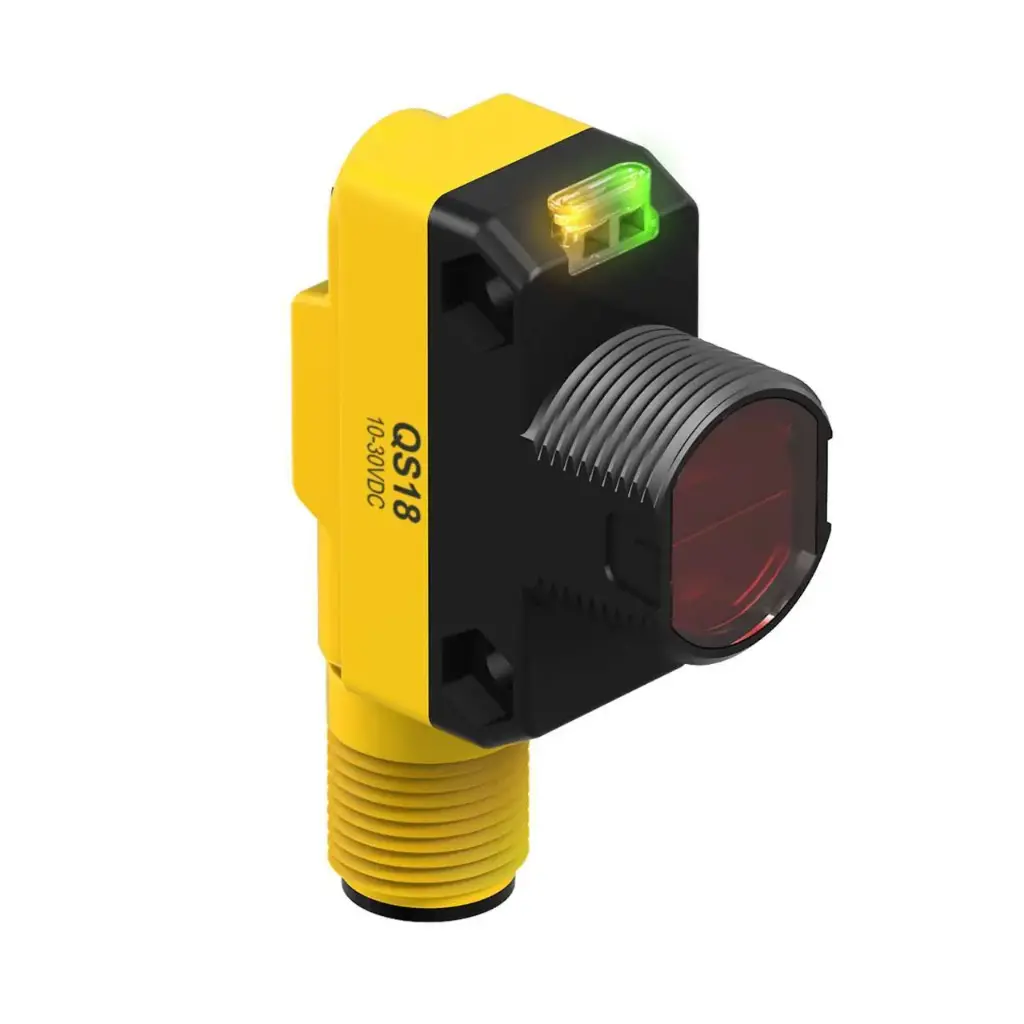

Photo sensor QS18EP6XLPCQ8, clear object, polarized retroreflective 3 m, PNP, NO/NC, 10-30VDC, M12 4-pin

QS18EP6XLPCQ8 is a Banner QS18 Expert series polarized coaxial retroreflective photo sensor for clear objects, with a visible red 625 nm beam and a 3 m range. Transparent bottles and film weaken the beam only slightly, and the sensor is taught to switch on that small change.

• Sensing range: 3 m
• Output: PNP, Light or Dark Operate, discrete
• Response: 400 µs; repeatability 100 µs
• Supply: 10-30 V DC
• Housing: ABS, PMMA lens, M18 mount
• Environment: IP67, NEMA 4X, -40...+70 °C
• Connection: integral M12 4-pin male connector

Set up with the teach button or the remote teach input. Output timing (hold/delay) is available.
