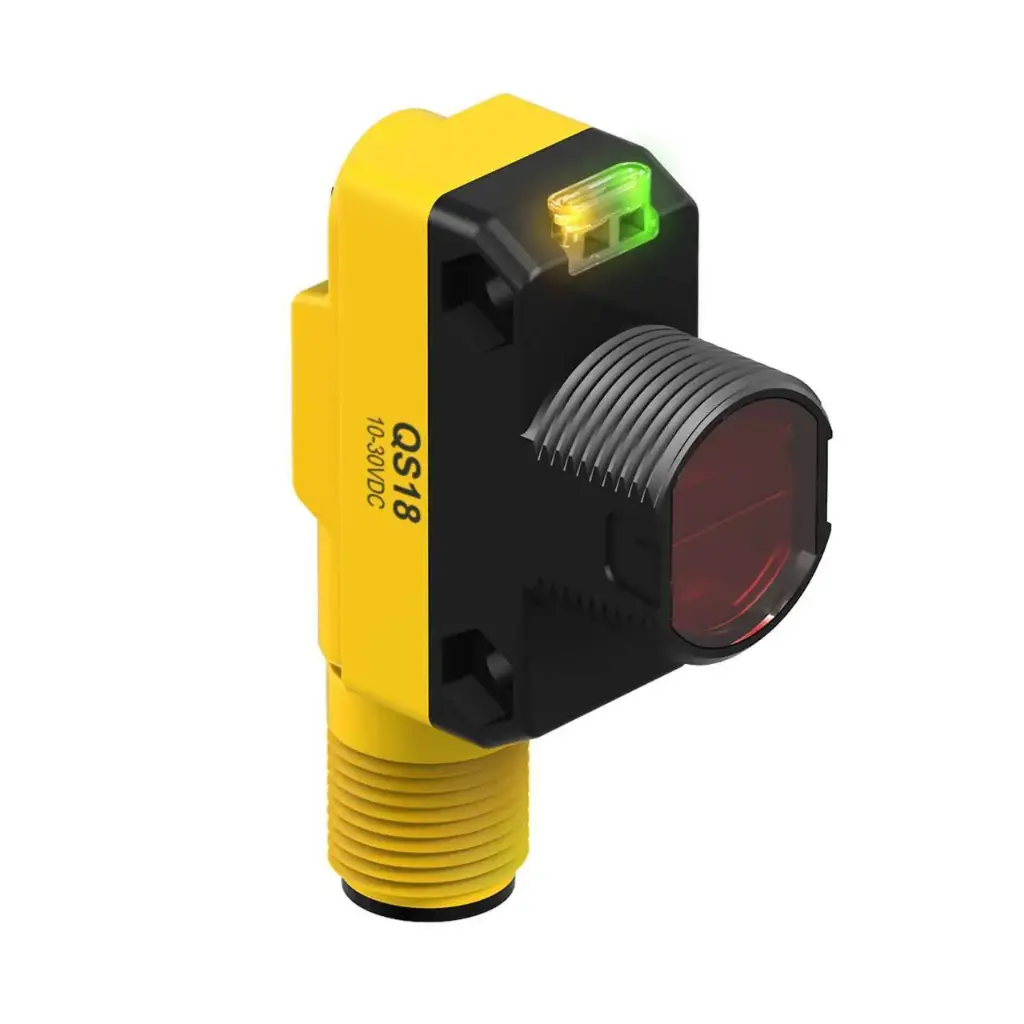

Photo sensor QS18EP6DQ8, diffuse 800 mm, teach, PNP, NO/NC, 10-30VDC, M12 4-pin

QS18EP6DQ8 is a Banner QS18E Expert series diffuse photo sensor with an infrared beam and an 800 mm range. The switching threshold is taught with the push button or over the remote wire instead of being set with a potentiometer.

• Sensing range: 800 mm
• Output: one PNP, Light or Dark Operate selectable, 100 mA; selectable 30 ms OFF-delay
• Response: 600 µs ON/OFF; repeatability 75 µs
• Supply: 10-30 V DC, < 35 mA (10-24 V DC above +55 °C)
• Housing: ABS, PMMA lens, 18 mm threaded nose or side mounting
• Environment: IP67, NEMA 6, -20...+70 °C
• Connection: integral M12 4-pin male connector, white wire as remote teach input

Static and dynamic TEACH, Light Set, Dark Set and Window Set are available; the remote input can also lock the push button. A green LED indicator shows power; the amber one shows the output state and flashes at a marginal signal.
